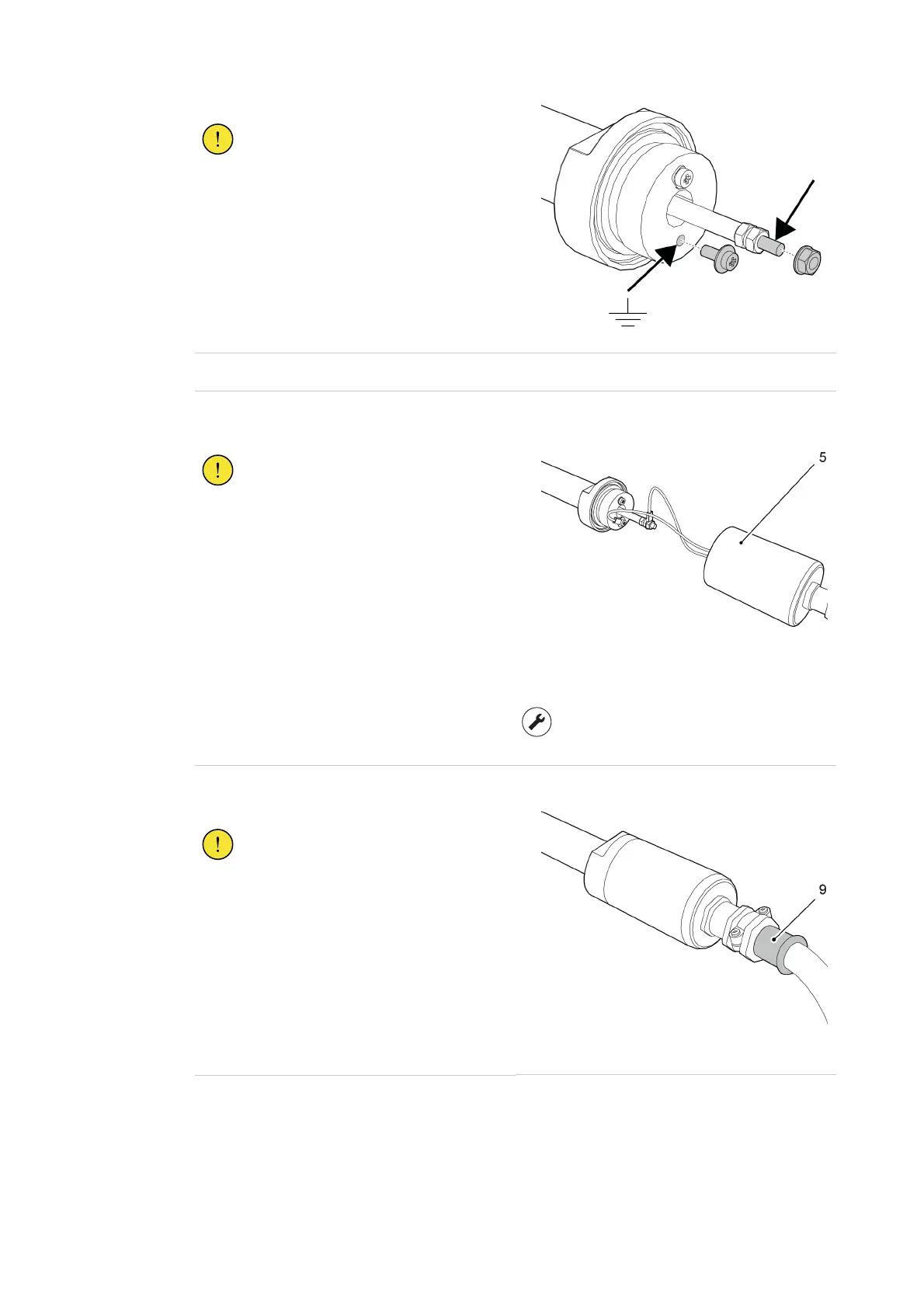

7. Install the signal cable for the measuring
equipment, refer to the instructions from the
manufacturer.
CAUTION!
Use a signal cable of sufficient size for
the amperage and voltage. Make sure
that the signal cable is rated for
outdoor use, and that it has the correct
shielding for this application.
G005034
8.
Make sure that the measuring equipment receives signals correctly.
9.
Apply Mobilgrease 28 to the threads of the the
terminal cover (5), and install it.
CAUTION!
Make sure that the terminal cover seals
correctly. An incorrect seal will cause
water to leak into the test adapter.
G006819
Torque
Tighten with your hand.
10.
Make sure that the flexible rubber seal (8) has a
correct seal against the signal cable.
CAUTION!
An incorrect seal will cause water to
leak into the test adapter.
G006831
End of instruction
