ABB A200-L User Manual

Operation Manual / A200-L
9 Disassembly and assembly / 9.4 Disassembly and assembly of the fil-
ter silencer casing
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
Assembly
NOTICE
Screws on the filter silencer casing
No screws are tightened until end of filter silencer casing assembly. Only
this way is it possible to fit all the parts.
u Do not tighten the screws during assembly.

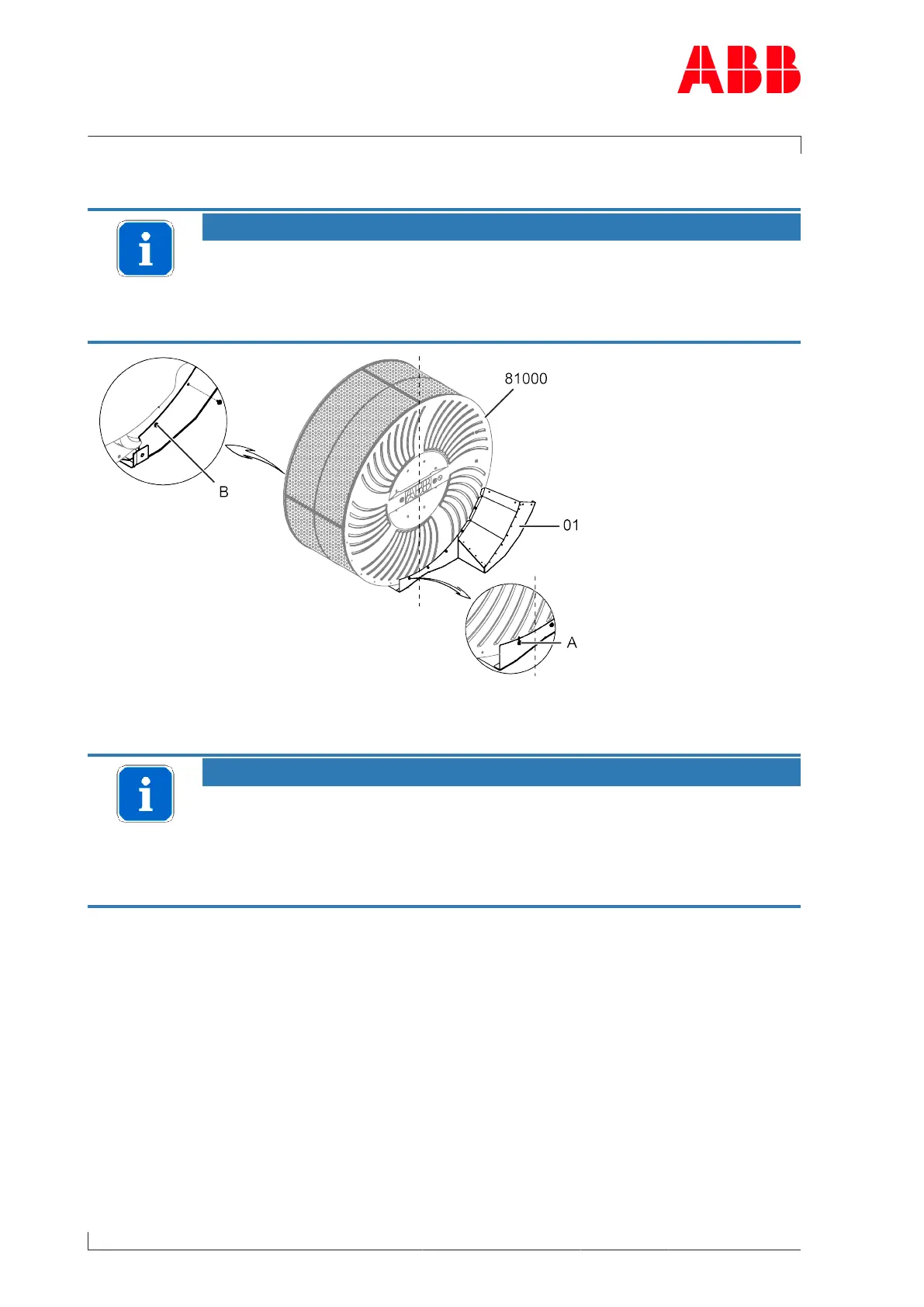

Fig.27: Fitting the filter silencer casing
u Fit the bottom part (01) on the filter silencer (81000) with screws (A) and (B).
NOTICE
Screw (A)
The location of screw(A) serves as a reference for the correct assembly of
the filter silencer casing.
u Before disassembling the bottom part (01), mark the location of
screw(A).
u Fit all remaining screws on the bottom part (01).
Page 74 / 145
