ABB ACQ580 User Manual

LVD-EOTKN093U-EN REV A
Effective: 2022-06-17 2

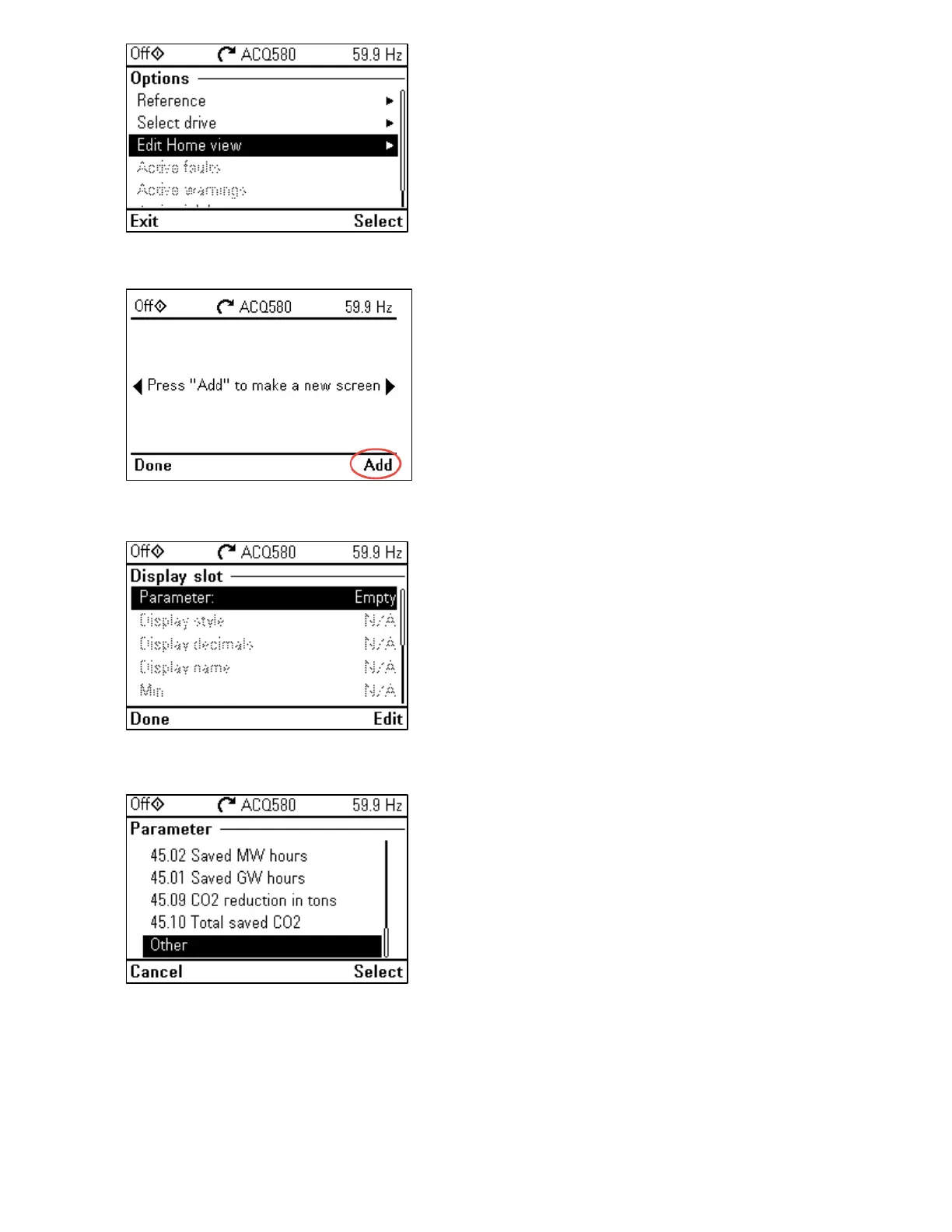

Figure 2
2. Navigate to Edit Home view
Press the down arrow key to navigate to Edit Home view and press the
right softkey to select Edit Home view. See Figure 2.
Figure 3
3. Select panel home screen to display ETM
Press the left or right arrow keys to select the panel home screen where
the ETM is to be displayed and then press the Add using the right
softkey. See Figure 3.
Note: up to three parameters can be displayed per panel home screen.
See Figure 1.
Figure 4
4. Select Parameter
Press Edit using the right softkey. See Figure 4.
Figure 5
5. Navigate to Other
Press the down arrow key to navigate to Other and press the right
softkey. See Figure 5.
