ACS2000 User manual 2UEA001270 Rev. F 4-3 (8)
Chapter 4 - Transportation, storage and disposal
4.1.2.2 Using a crane
Observe the following points when using a crane:
• Use lifting equipment (web slings, chain slings, round slings, safety
hooks, shackles, etc.) that corresponds to the size and weight of the
cabinet.
• Attach slings to the holes of the four lifting brackets using a spreader
bar (see Figure 4-2).
• Do not pass a sling through the fastening hole.
• Use appropriate safety hooks or shackles to attach a sling.
• A spreader bar must be used when lifting the drive. Verify that the
straps are no more than 5° from vertical (see Figure 4-2).
The drive should always be moved by level 2 certified rigger personnel.

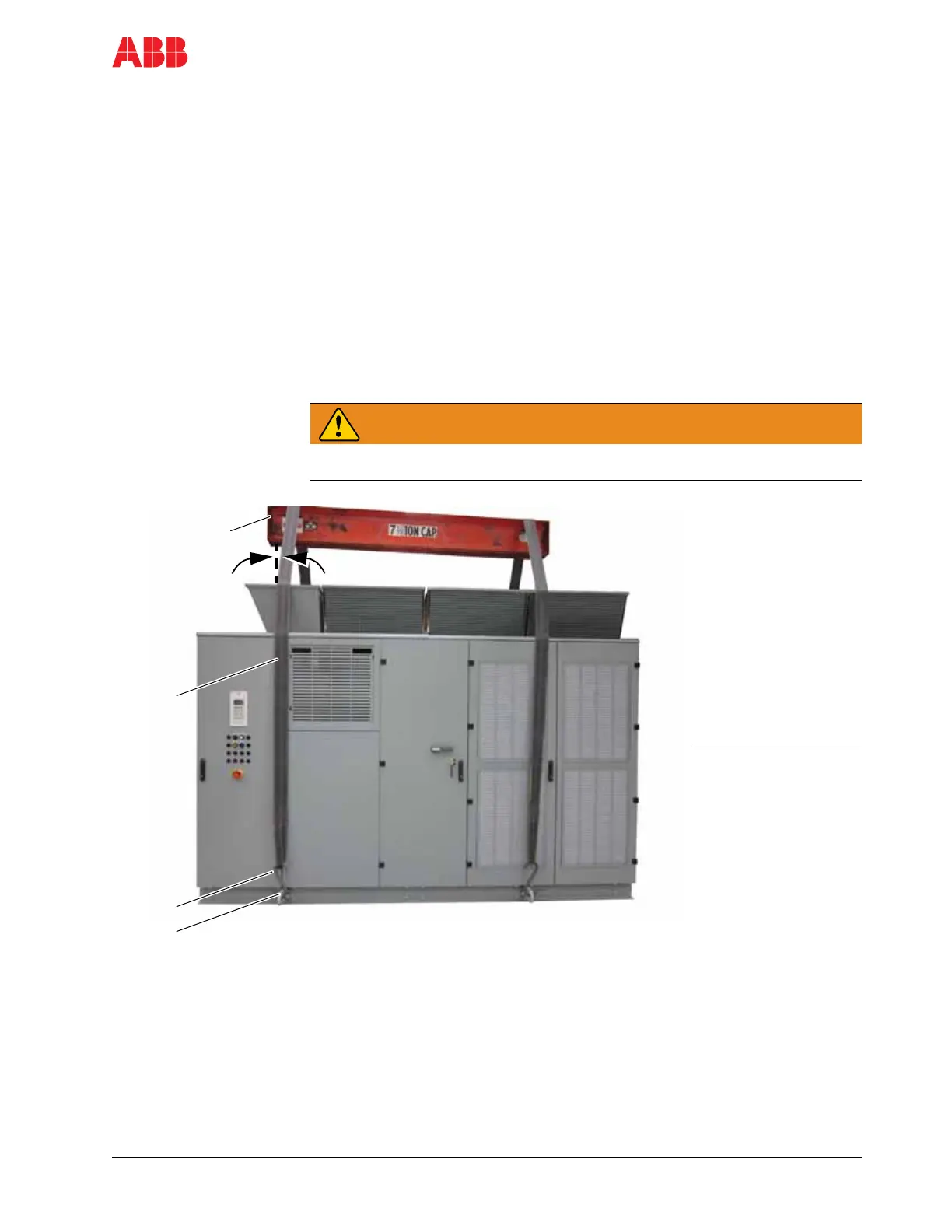

Figure 4-2 Transporting the cabinet by crane using lifting brackets
(Frame 3 pictured)
1
4
3
Less than 5°
Legend
1 Lifting brackets -
each corner
2 Slings
3 Spreader bar (not
provided)
4 Lifting hooks
2
