260 Actual signals and parameters
Example 2: If 3202 SUPERV 1 LIM LO > 3203 SUPERV 1
LIM HI
The lower limit 3203 SUPERV 1 LIM HI remains active until
the supervised signal exceeds the higher limit 3202
SUPERV 1 LIM LO, making it the active limit. The new limit
remains active until the supervised signal drops below the
lower limit 3203 SUPERV 1 LIM HI, making it the active
limit.
Case A = 1401 RELAY OUTPUT 1 value is set to SUPRV1
OVER. Relay is energized whenever the supervised signal
exceeds the active limit.
Case B = 1401 RELAY OUTPUT 1 value is set to SUPRV1
UNDER. Relay is de-energized whenever the supervised
signal drops below the active limit.
0, x…x Parameter index in group 01 OPERATING DATA. For
example, 102 = 0102 SPEED. 0 = not selected.
1 = 1
3202 SUPERV 1 LIM
LO
Defines the low limit for the first supervised signal selected
by parameter 3201 SUPERV 1 PARAM. Supervision wakes
up if the value is below the limit.
-
x…x Setting range depends on parameter 3201 setting. -
3203 SUPERV 1 LIM
HI
Defines the high limit for the first supervised signal selected
by parameter 3201 SUPERV 1 PARAM. Supervision wakes
up if the value is above the limit.
-
x…x Setting range depends on parameter 3201 setting. -
3204 SUPERV 2
PARAM
Selects the second supervised signal. Supervision limits are
defined by parameters 3205 SUPERV 2 LIM LO and 3206
SUPERV 2 LIM HI. See parameter 3201 SUPERV 1
PARAM.
104
x…x Parameter index in group 01 OPERATING DATA. For
example, 102 = 0102 SPEED.
1 = 1
All parameters

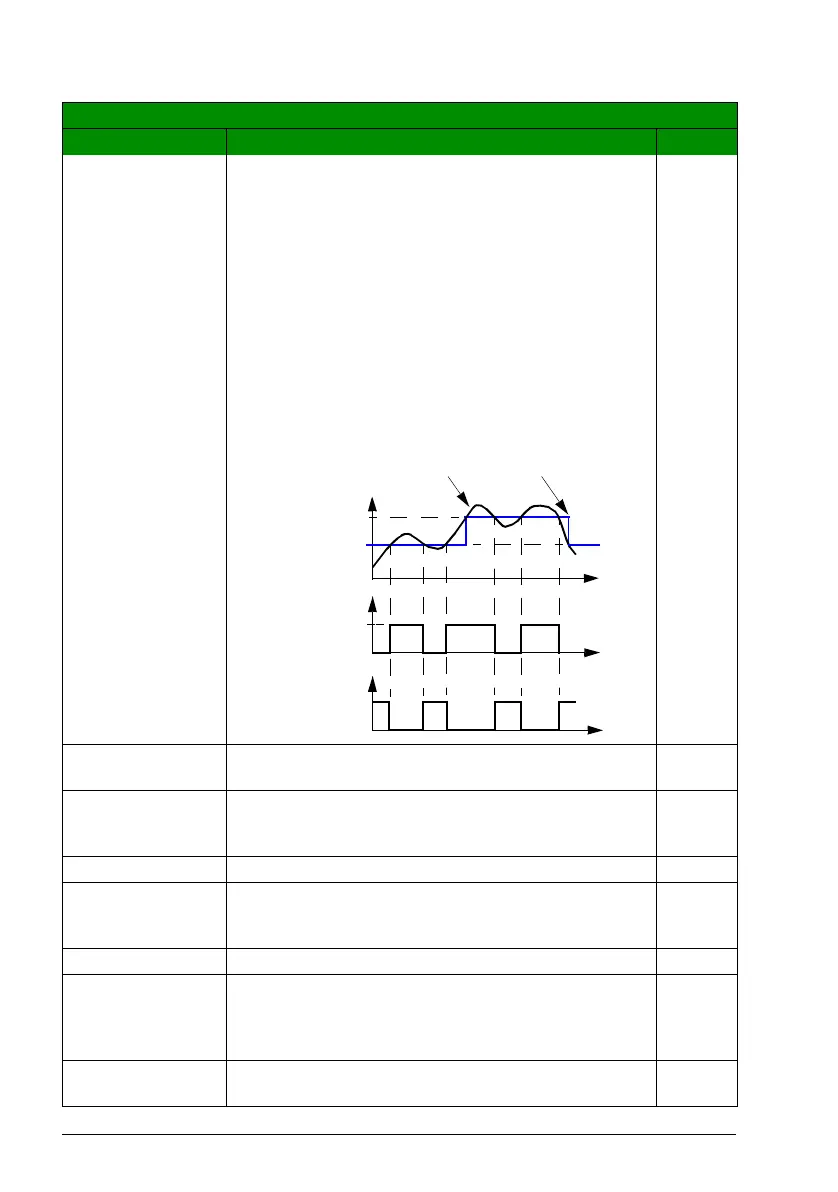

No. Name/Value Description Def/FbEq
t
t
t
HI par. 3203
Value of supervised parameter
LO par. 3202
Energized (1)
Energized (1)
0
0
Case A
Case B
Active limit
