ABB ACS880 Series Quick Start Up Guide

105
Configuring S7-1200 and S7-1500 PLC
In the following example, S7-1200 PLC is configured. Similarly, you can configure S7-1500 PLC.
To configure TIA Portal with the PLC and ABB Drive libraries, follow these steps:
1. To configure S7-1200 PLC, follow steps 1…3 in Configuring S7-300 PLC.
2. Select Add new device in the left pane and select the required PLC and then click Add.

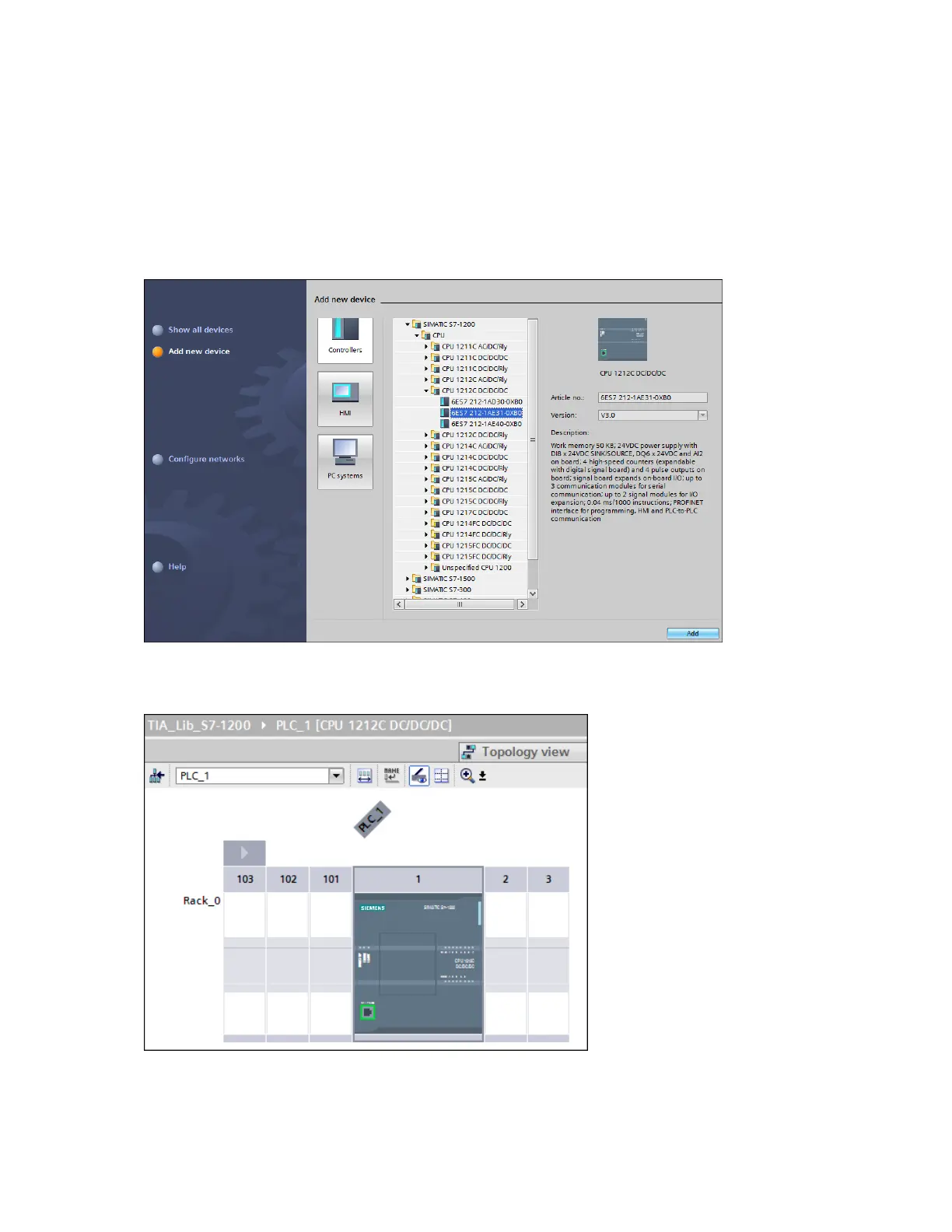

Figure 108 Adding new device S7-1200
New PLC device is added to hardware configuration.
Figure 109 PLC device S7-1200

ABB ACS880 Series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Enclosure class	IP21, IP55
Mounting type	Wall-mounted
Control method	Direct torque control (DTC)
Braking chopper	Integrated or external
Communication	Ethernet
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature, earth fault
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Relative Humidity	5 ... 95 % (non-condensing)
Safety features	Safe torque off (STO)
