ABB AV2 User Manual

POSITION TRANSMITTERS
CALIBRATION
A - 7
a. Remove the cam, by removing the screw, flag, nut and
washer (Fig. A-5 and Table A-2).

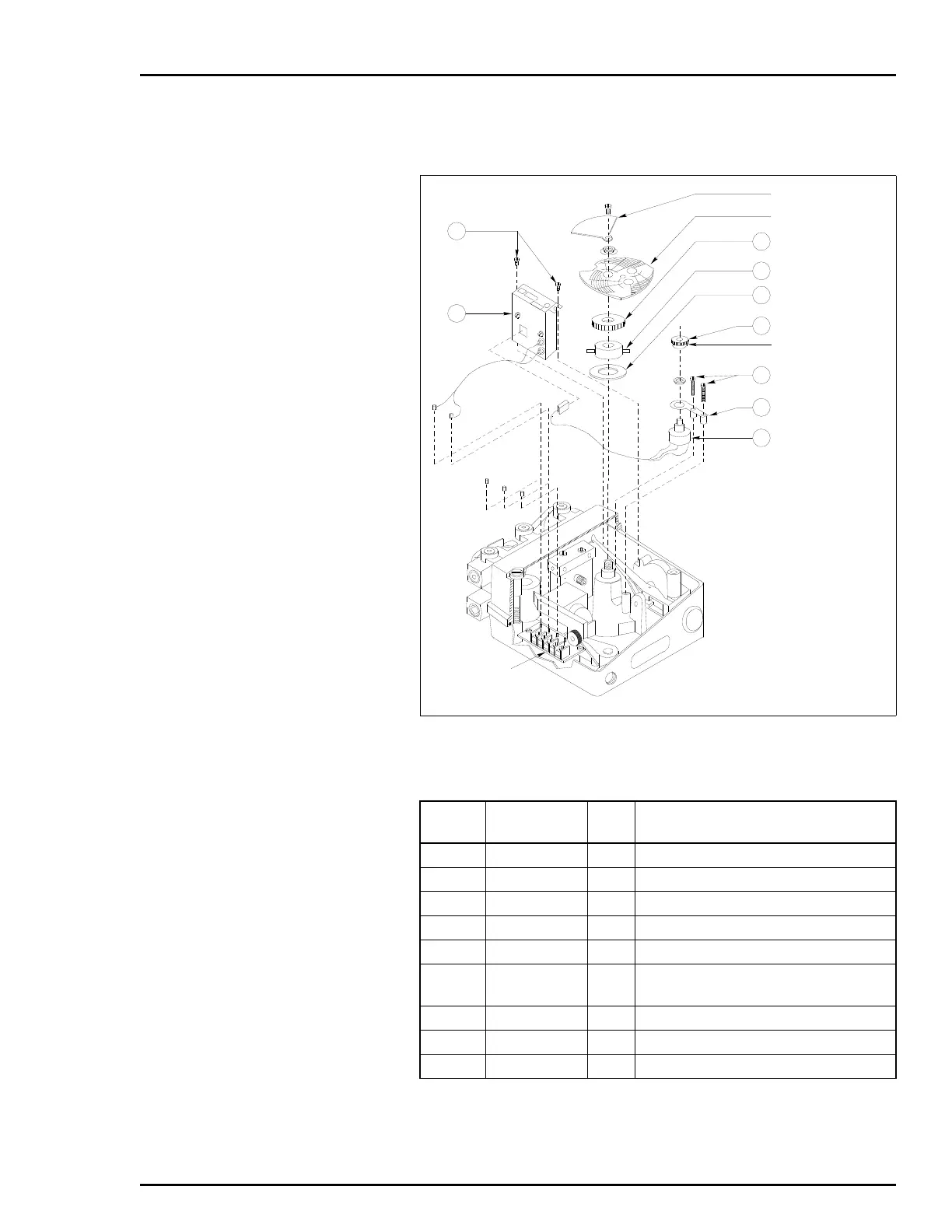

Figure A-5. 4 to 20-mA Position Transmitter (Exploded View)
Table A-2. 4 to 20-mA Position Transmitter Kit 258670_1
Item
No.
Part No. Qty Description
21 6639540_1 1 Potentiometer assembly
27 193243
_1 1 Large position transmitter gear
31 19734
_45 1 Washer
58 NDPAC13005 2 Threaded forming screw
60 5400317
_1 1 Gear adapter
91 6639479
_1 1 4 to 20 mA position transmitter assem-
bly
92 NDPAC13012 2 Threaded forming screw
95 5400268
_1 1 Potentiometer mounting bracket
96 193242
_1 1 Small position transmitter gear
21
91
58
95
96
31
60
27
92
POTENTIOMETER
(2000 )
Ω
SET SCREW
CAM
FLAG
MOUNTING
BRACKET
SMALL GEAR
LARGE GEAR
NOTES:
1. SOME HARDWARE ITEMS HAVE
BEEN OMITTED FOR CLARITY.
2. IDENTIFIED ITEMS PERTAIN TO
THE POSITION TRANSMITTER
OPTION ONLY.
T00790A
TERMINAL
BLOCK TB1
