14 DS/CM30–EN Rev. L | ControlMaster CM30 | Universal process controller,
1
/ 4 DIN
Auto / Manual station and analog backup station
These templates configure the CM30 to backup a master controller, typically a PLC or DCS. A fault condition is detected via a low
output signal from the master controller or a digital signal. On detection of a fault signal, the CM30 can take control of the
process (analog backup template), freeze its output or switch to a safe output (auto / manual station template). In this example, a
critical control of flow is backed-up by the CM30.
Dual loop
The dual loop template enables a CM30 to act as 2 independent controllers and is available with a remote setpoint for either, or
both, control loops. In this example, the temperature and humidity of a climatic chamber are controlled independently.

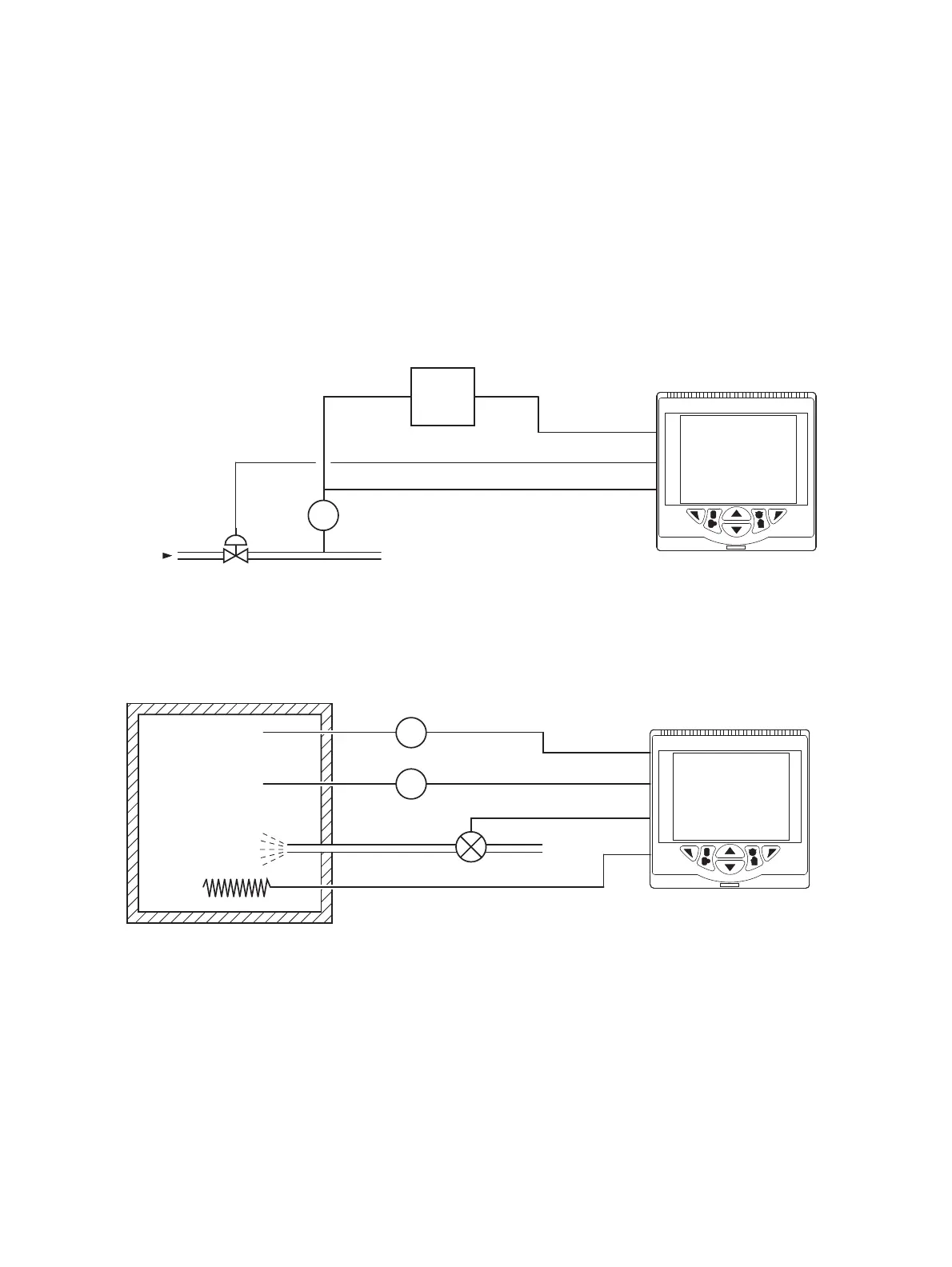

Fig. 23: Auto / Manual station and analog backup station
Fig. 24: Dual loop
Flow
Master
Controller
Master Control
Signal
O/P
PV
PV
FT
O/P
PV1
PV2
O/P2
O/P1
TT
HT
