D88 User Guide

Hydrogen sensor data

To gather hydrogen sensor data from the Maintenance page, click Sensors diagnostics>Hydrogen

sensor diagnostics. A table appears indicating various sensor parameters and values.

—

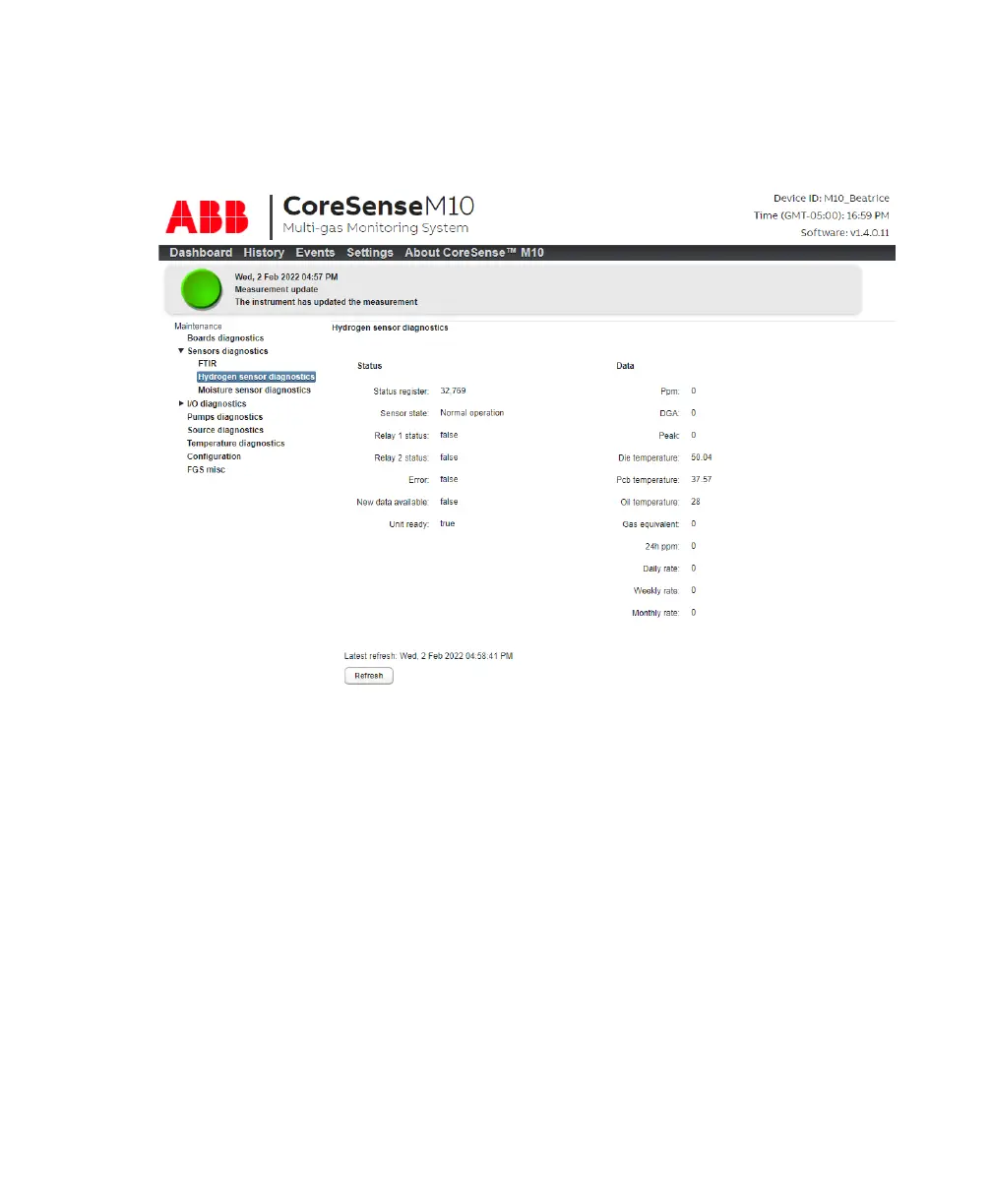

Figure 59 Hydrogen sensor diagnostics data
