ABB PSTX Series User Manual

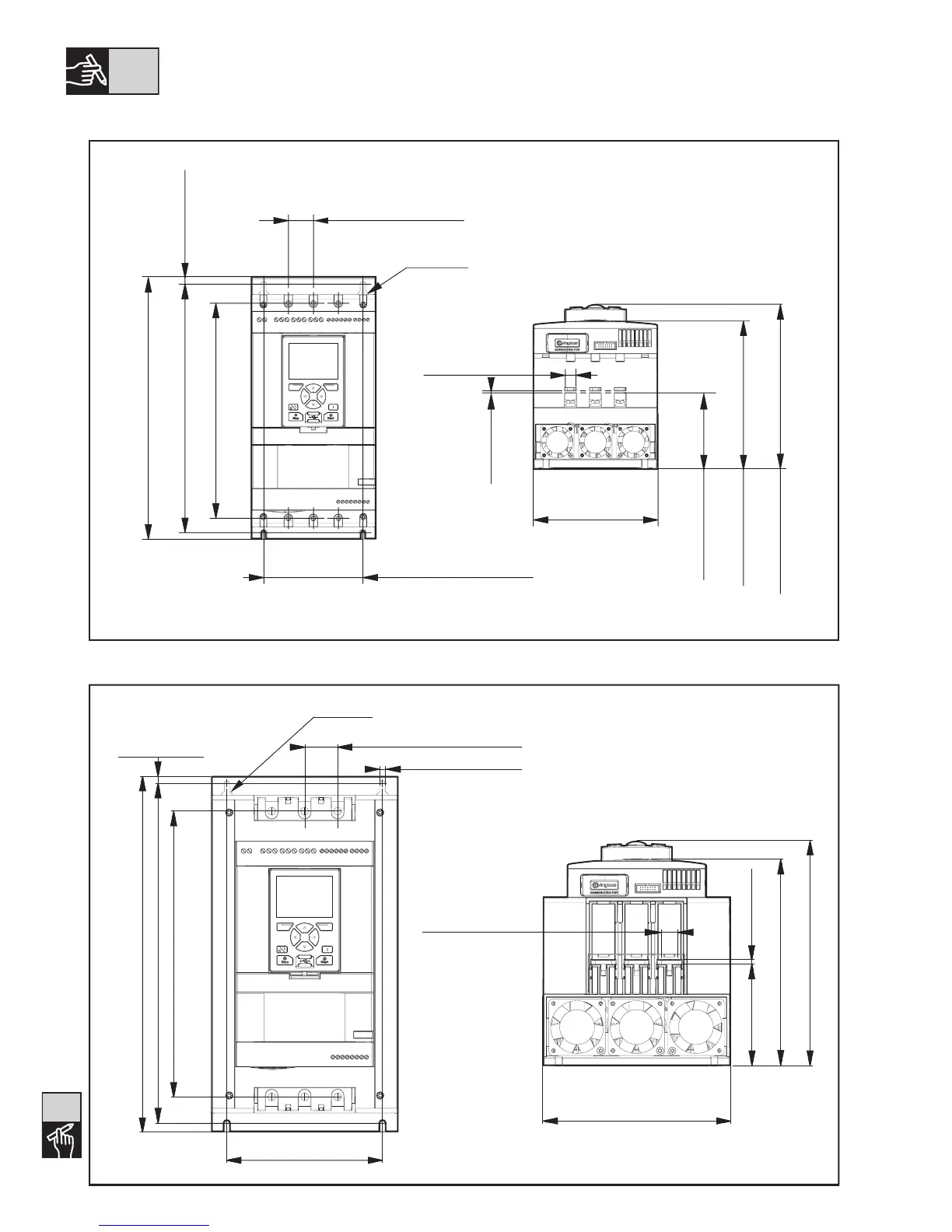

244 Softstarters Type PSTX30...PSTX1250 User Manual short form 1SFC132082M9901
PSTX30...PSTX105
PSTX142...PSTX170
1
197.5 mm (7,7 in)
150 mm (5,9 in)
90,5 mm (3,6 in
)
3 mm (0,1 in)
178.8 mm (7 in)
13 mm (0,5 in) 6x
119 mm (4,7 in)
298,5 mm (11,7 in) 7,5 mm (0,3 in)
314 mm (12,4 in)
258 mm (10,2 in)
30 mm (1,2 in) 4x
Ø14 (2x)
1SFC132082M9901
2
219,6 mm (8,6 in)
238,3 mm (9,3 in)
377 mm (14,8 in)
165 mm (6,5 in)
7,5 mm (0,3 in)
360,5 mm (14,1 in)
199 mm (7,8 in)
35 mm (1,3 in) 4x
6.6 mm (0,2 in) 4x
303 mm (11,9 in)
107,6 mm (4,2 in)
5 mm (0,2 in)
17,5 mm (0,7 in) 6x
Ø18 (2x)
1SFC132082M9901
02

ABB PSTX Series Specifications

General

Type	Softstarter
Rated operational voltage	208-690 V AC
Rated operational current	30-1250 A
Number of phases	3
Operating temperature	-25 to +60°C
Operating frequency	50/60 Hz
Overload protection	Yes
Protection class	IP20
Communication protocols	Modbus RTU, Profibus
Starting method	Voltage ramp, current limit
Stopping method	soft stop
Bypass contactor	Built-in
Display	graphical display
Rated control supply voltage	100-240V AC
