3.5 LHMI
GUID-F69BFFA3-FEBF-4651-954F-9669770928A1 V2 EN

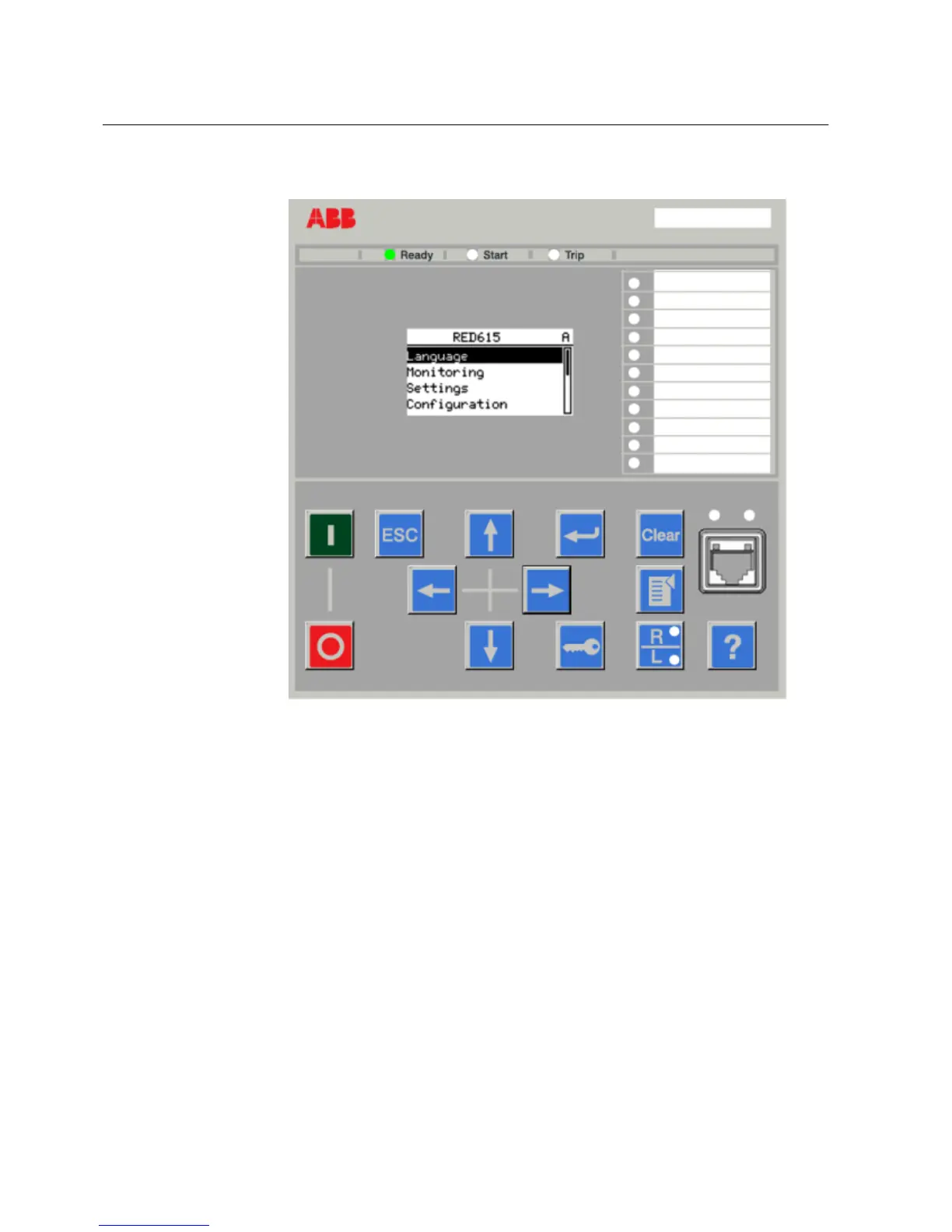

Figure 1: LHMI
The LHMI of the IED contains the following elements:
• Display
• Buttons
• LED indicators
• Communication port
The LHMI is used for setting, monitoring and controlling.
3.5.1 LCD
The LHMI includes a graphical LCD that supports two character sizes. The character
size depends on the selected language.
The amount of characters and rows fitting the view depends on the character size:
Section 3 1MRS756499 A
RED615 overview
