To ensure that the IED is according to the delivery and ordering specifications
documents delivered together with each IED, the user should also after start-up use
the built in
HMI to check the IED's:
• Software version, Main menu/Diagnostics/IED status/Product identifiers.
• Serial number, Main menu/Diagnostics/IED status/Product identifiers.
• Installed modules and their ordering number, Main menu/Diagnostics/IED
status/Installed HW.
4.4.2 IED start-up sequence
M11727-3 v12
When the IED is energized, the green LED starts flashing instantly. After
approximately 55 seconds the window lights up and the window displays ‘IED
Startup’. The main menu is displayed and the upper row should indicate ‘Ready’
after about 90 seconds. A steady green light indicates a successful startup.
xx04000310-1-en.vsd
t (s)
0 t1 t2
1 32
IEC04000310 V2 EN-US

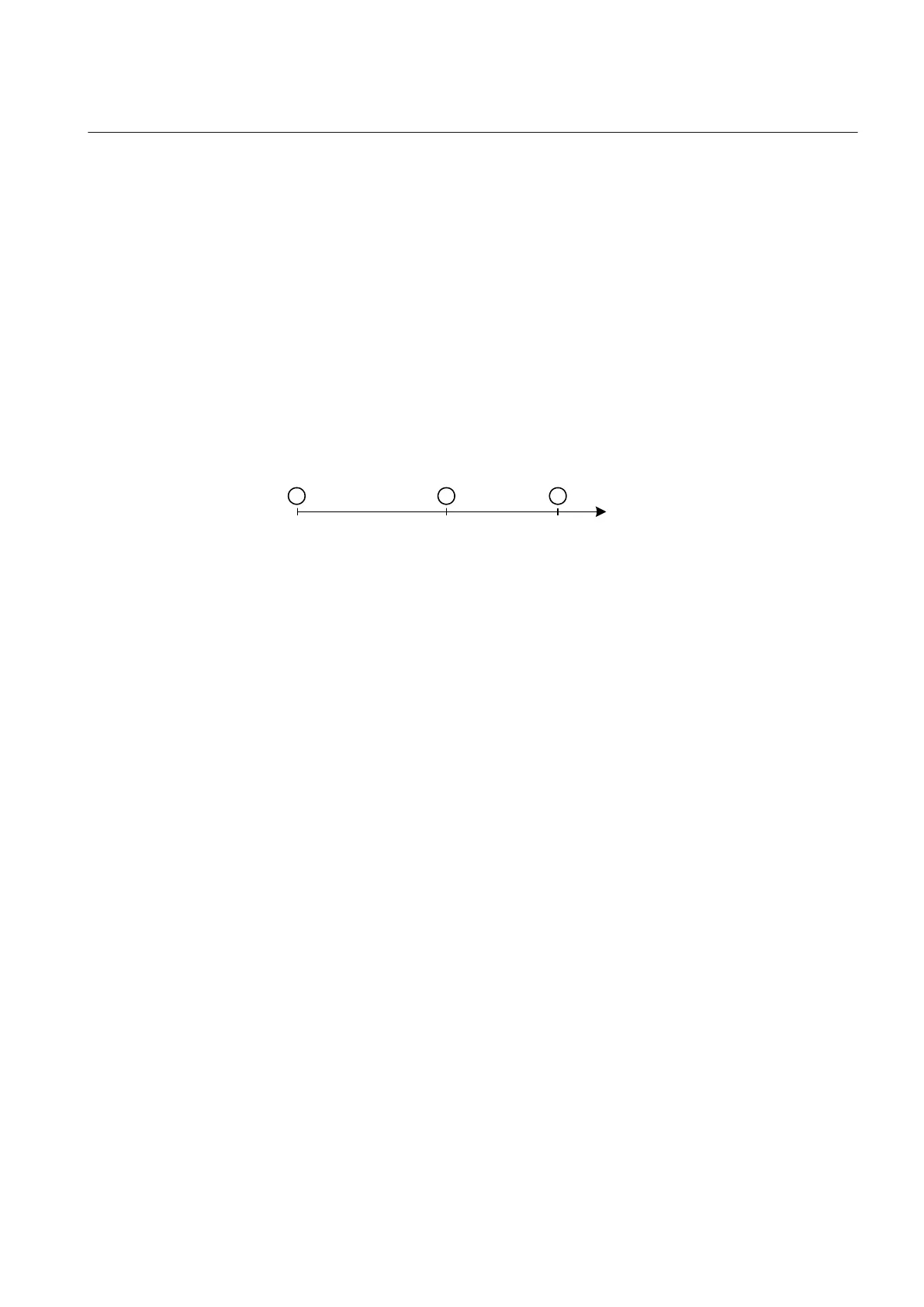

Figure 2: Typical IED start-up sequence
1 IED energized. Green LED instantly starts flashing
2 LCD lights up and "IED startup" is displayed
3 The main menu is displayed. A steady green light indicates a successful startup.
If the upper row in the window indicates ‘Fail’ instead of ‘Ready’ and the green
LED flashes, an internal failure in the IED has been detected.
4.5
Setting up communication between PCM600 and
the IED
SEMOD58570-5 v14
The communication between the
IED and PCM600 is independent of the
communication protocol used within the substation or to the NCC.
The communication media is always Ethernet and the used transport layer is
TCP/IP.
Each IED has an RJ-45 Ethernet interface connector on the front. The front
Ethernet connector is recommended to be used for communication with PCM600.
When an Ethernet-based station protocol is used, PCM600 communication can use
the same Ethernet port and IP address.
1MRK 505 378-UEN A Section 4
Starting up
Line differential protection RED670 2.2 IEC 49
Commissioning manual
