ABB REX640 User Manual

Engineer pages
Operator pages
GUID-1B2FF5EE-2AC9-4EA3-A342-03857EDAB52C V1 EN

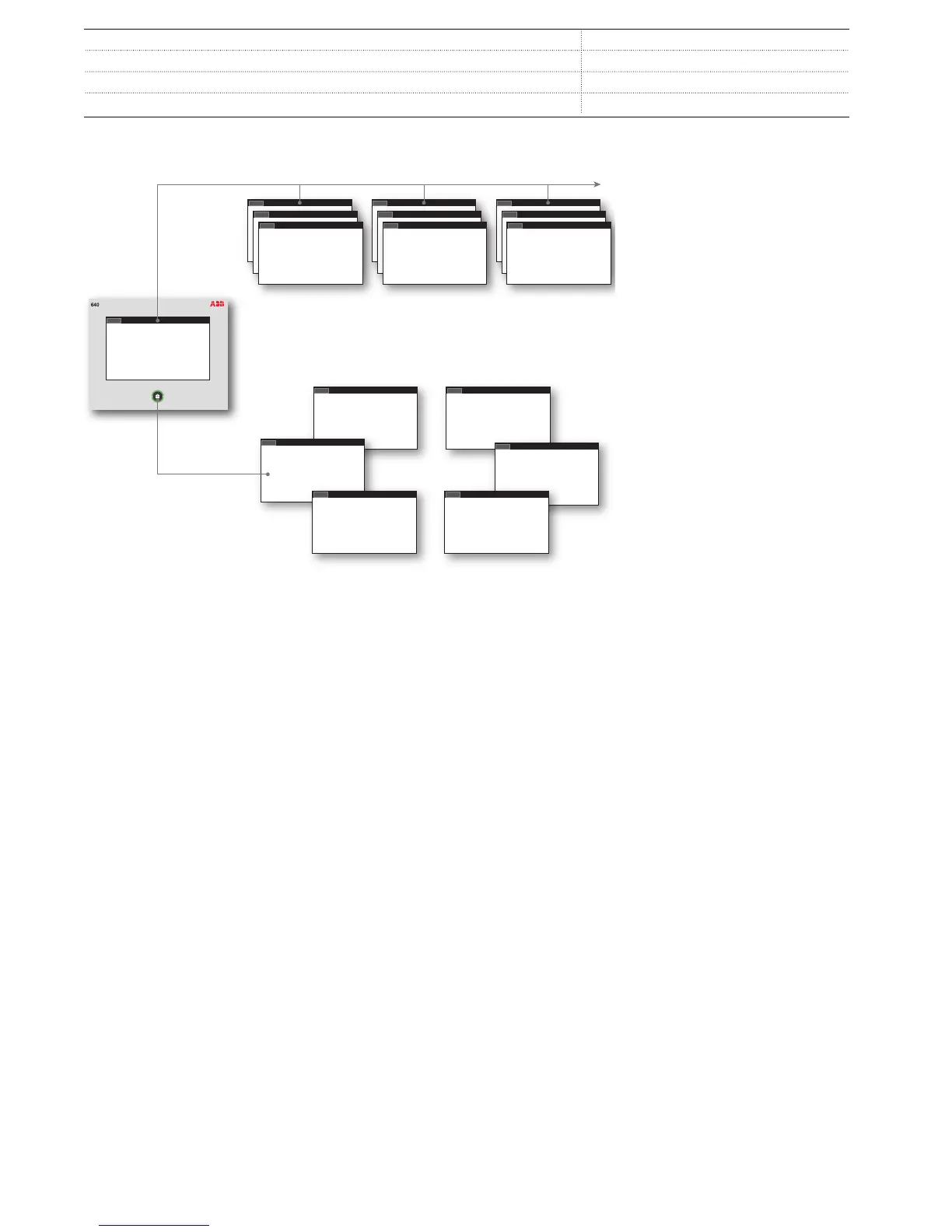

Figure 5. LHMI pages
The
LHMI is an accessory for the relay which is fully operational
even without the LHMI. The relay communication card has a
dedicated port where the LHMI is connected using an RJ-45
connector and a CAT6 S/FTP cable. The LHMI can be
connected to the relay also via station communication network
if a longer distance is required between the relay and the LHMI.
Additionally, the LHMI contains one Ethernet service port with
an RJ-45 connector and one USB port. The service port can be
used for the PCM600 connection or for Web HMI connection.
Data transfer to a USB memory is enabled via the USB port. By
default the USB port is disabled and has to be taken into use
with a specific parameter.
1MRS759144 A
REX640
Product version: 1
8 ABB

ABB REX640 Specifications

General

Device Type	Protection Relay
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Rated Frequency	50/60 Hz
Operating Temperature Range	-25°C to +55°C
Display	LCD
Housing	Metal
Manufacturer	ABB
Model	REX640
Mounting	Rack mounting
Inputs and Outputs	Configurable binary inputs and outputs
Rated Voltage	48-240 V AC/DC
Protection Functions	Overcurrent, Earth Fault
Input Voltage	48-240 V AC/DC
Certifications	CE, UL, IEC
