8. Click Re-read and check that the security switch status is on to begin enforcement of the security
codes.
IMPORTANT NOTE:
The codes will be required the next time PCCU32 attempts to connect
to the RMC.
9. Call the ABB main office number listed on the last page of this guide if you need further assistance
with security.
6.5 Change the LCD display
The factory configuration has a default date and time display. To change the display to preferred
settings:

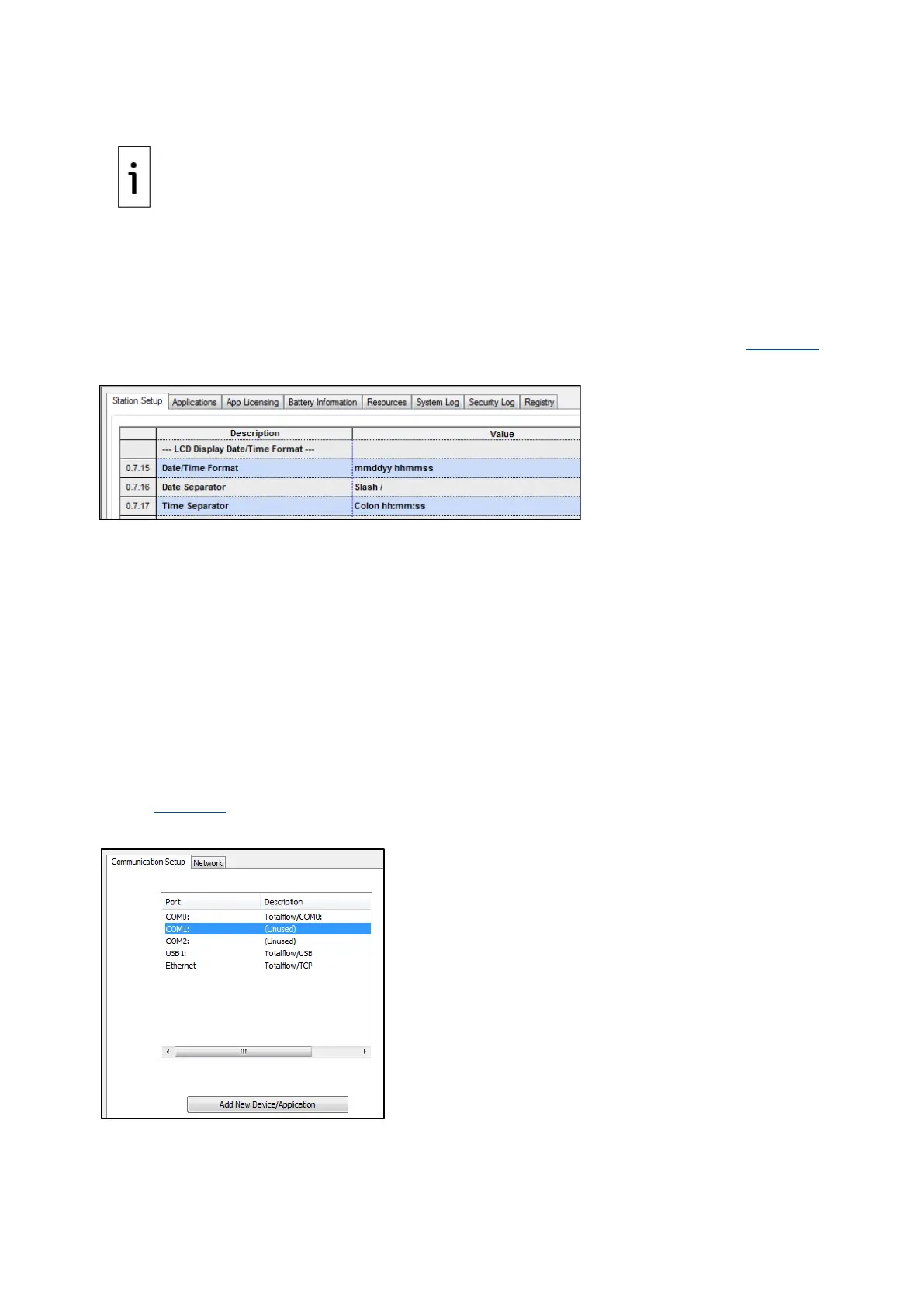

1. On the Station Setup tab, scroll down to the LCD Display Date/Time Format section (Figure 6-7
).
Figure 6-7: LCD display date and time format
2. Select the preferred Date/Time Format (mmddyy or yymmdd).
3. Select the preferred Date Separator (slash, dash, or period).
4. Select the preferred Time Separator (colon or period).
5. Click Send to save the station settings.
7 Configure communications
7.1 Configure the COMM ports
This configuration is for COMM1 and COMM 2 communication ports when connecting one or more serial
devices. These ports are software-configurable to support RS-232, RS-422, and RS-485.
To configure the ports:
1. Ensure the power LED on the COMM module is on (green).
2. In PCCU, click Communications on the navigation tree. The Communications Setup tab displays
(Figure 7-1
).
Figure 7-1: COMM port configuration
3. Verify that the port is unused.
4. Select the appropriate port (COM1 or COM2).
