Emax E1.2 circuit-breakers | 2 - Transport and checking on receipt
9 | © 2014 ABB | 1SDH000999R0002 - L8569
Storage method
Place the packaging (circuit-breakers and / or fixed parts) on a horizontal plane, not in contact with the floor.
If the circuit-breaker has been removed and reinserted in the package ensure, prior to storage that:
• the circuit-breaker is in the open position and springs discharged. See the chapter "Description - circuit-
breaker opening/closing operations" on page 15
• the circuit-breaker is protected and locked in its original packaging

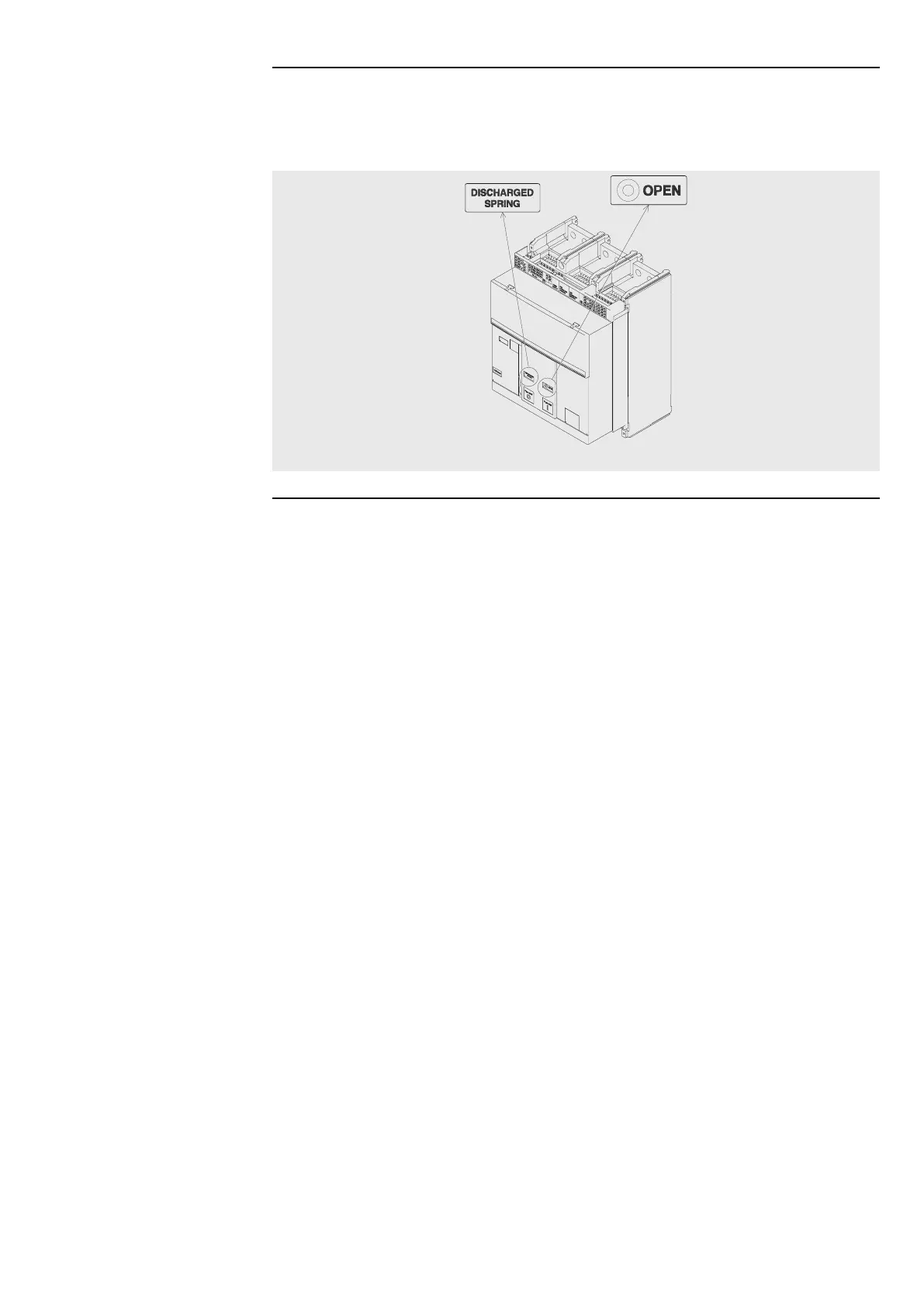

Figure 4

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
