ABB SACE Emax 2 Installation, Operation And Maintenance Instructions

ABB | SACE Emax 2
14 | © 2014 ABB | 1SDH000999R0002 - L8569
Emax E1.2 circuit-breakers | 4 - Description

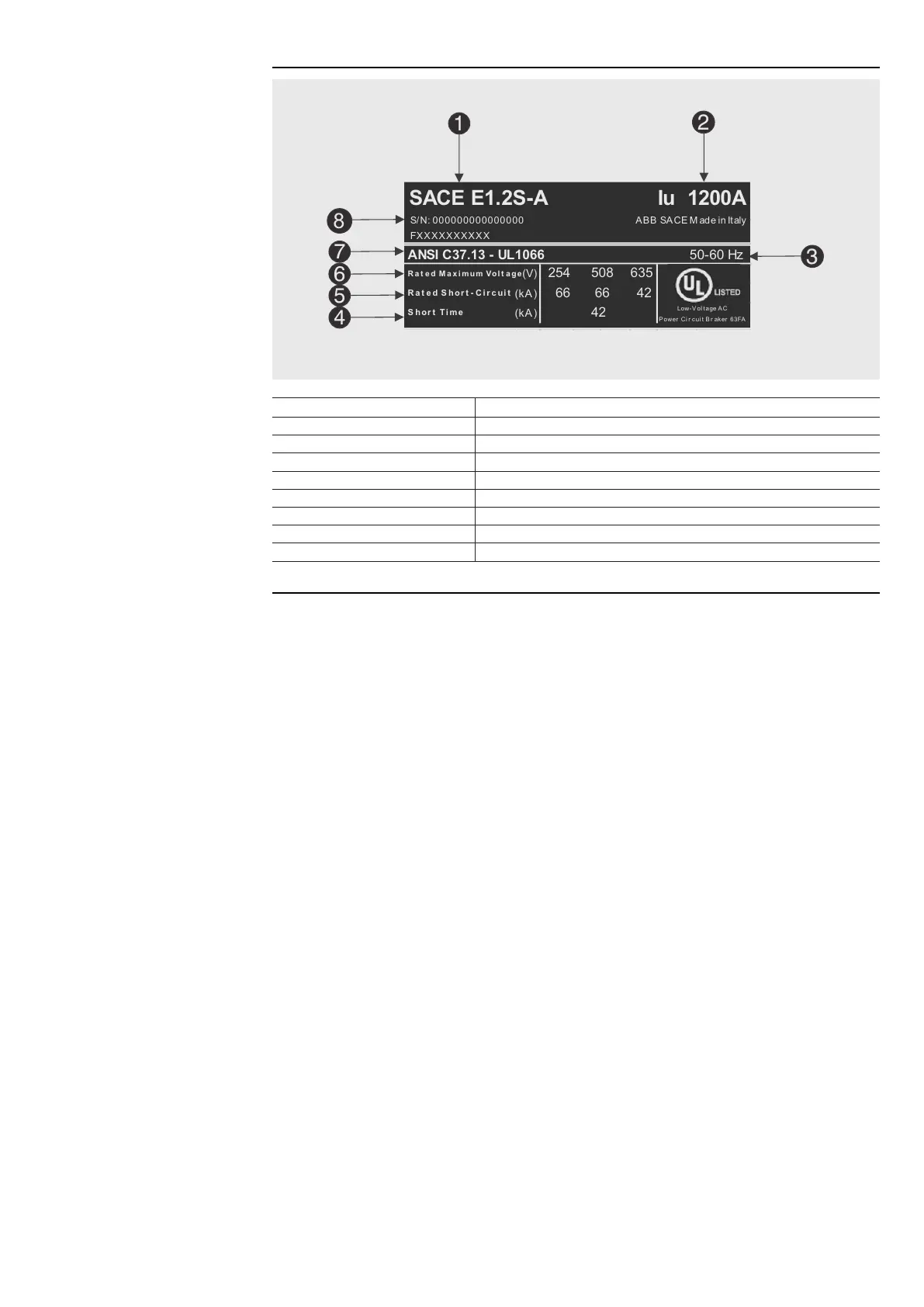

Description of specifications
plate UL
1
2
3
7
6
5
4
8
SACE E1.2S- Iu 1200A
S/ N: 000000000000000 ABB SA CE Made in Italy
FXXXXXXXXXX
ANSI C37.13 -UL1066 50-60Hz
RatedMaximum Voltage
(V) 254 635
RatedShort-Circuit
(kA) 66 42
S hortTime
(kA)
508
66
Low-VoltageAC
PowerCircuit Br aker 63FA
42
A
Figure 17
Pos. Description
1 Type of circuit-breaker
2 Rated current
3 Rated operating frequency
4 Admissible rated short-time current
5 Rated short-circuit breaking capacity
6 Rated service voltage
7 Standards
8 Circuit-breaker serial number

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
