ABB | SACE Emax 2
Electronic accessories | 16 - Other accessories245 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A

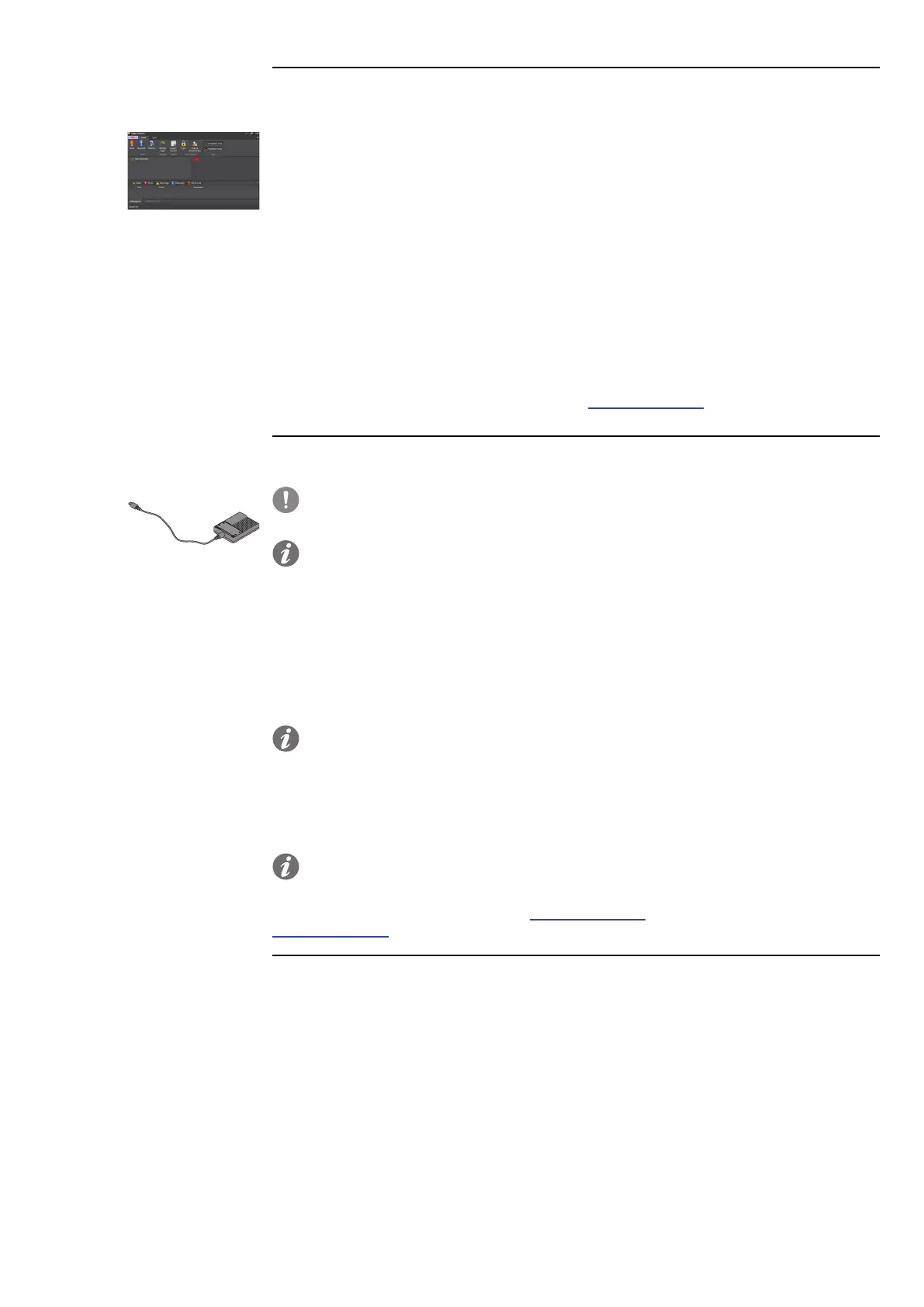

Ekip Connect software
Ekip Connect is the free software for communication and testing of ABB low voltage circuit-breakers equipped
with compatible trip units, in particular of Ekip series.
Ekip Connect must be installed on PCs equipped with the Microsoft Windows® operating system by
downloading it from the site http://www.abb.com/abblibrary/DownloadCenter.
Through its communication function, it allows you to:
• Monitor the state of the connected circuit-breakers and record information.
• Execute the switching, reset, signalling commands, etc…
• Configure the protection trip units with customized parameters.
• Configure the electronic accessories, connected to the trip unit via Local Bus.
• Download information from the trip units equipped with Datalogger.
• Create communication reports.
• Reset configurations.
Through the test function, and Ekip T&P module (see page 246), it allows you to:
• Simulate fault conditions by performing manual or automatic tests.
• Perform trip tests.
• Create test reports.
Further information on the Ekip Connect application is available on the website http://www.abb.com/
abblibrary/DownloadCenter/, in particular in the manual 1SDH000891r0002.
Ekip Bluetooth module
The Ekip Bluetooth allows connection via Bluetooth between the Ekip trip units, and a support (PC, tablet, or
smart phone) with the Ekip Connect software installed (see previous paragraph).
IMPORTANT: the Ekip Bluetooth module can be connected to the trip units also when
in service.
NOTE: Ekip Bluetooth powers the trip unit only. Therefore, in order to set and to display
information on any electronic accessories connected to the terminal box, these must be
powered by an Ekip Supply module (see page 177).
It draws its power from a rechargeable lithium-polymer battery delivered with the unit. It is connected directly
to the front test connector of the trip unit, and allows a trip unit without auxiliary voltage to be powered.
It is switched on by pressing the power button on the side, and is equipped with two LEDs:
• The first LED in green when the device is on and the battery charged, red with the device turned on and
low battery.
• The second LED flashing blue with active Bluetooth communication.
NOTE: the red flashing LED indicates that the battery is completely drained, an error condition,
or malfunction of the module.
The battery charging is performed by connecting the module to the USB ports of a PC with the supplied
cable. Connection to a PC automatically switches the module on, and charging in progress is indicated by
the flashing green LED, with increasing frequency as the level of charging rises. Completion of charging is
indicated by the green LED on (fixed).
NOTE: during recharging, the module must be kept energized.
Further information on Ekip Bluetooth is available on the website http://www.abb.com/abblibrary/
DownloadCenter/, in particular in the kit sheet 1SDH001000r0518, and in the Ekip Connect software manual
1SDH000891r0002.
