ABB SACE Emax Series User Manual

L2234
Emax
135/158
Doc. No.
Model
1SDH000460R0002
Apparatus
Scale
Page No.
L2778
ABCDEFG
E1
386 296 148 148 10 130 117.5
E2
386 296 148 148 26 114 117.5
E3
530 404 202 202 26 114 117.5
E4
656 566 238 328 26 166 91.5
E4/f
746 - - 328 26 166 91.5
E6
908 782 328 454 26 166 91.5
E6/f
1034 - - 454 26 166 91.5

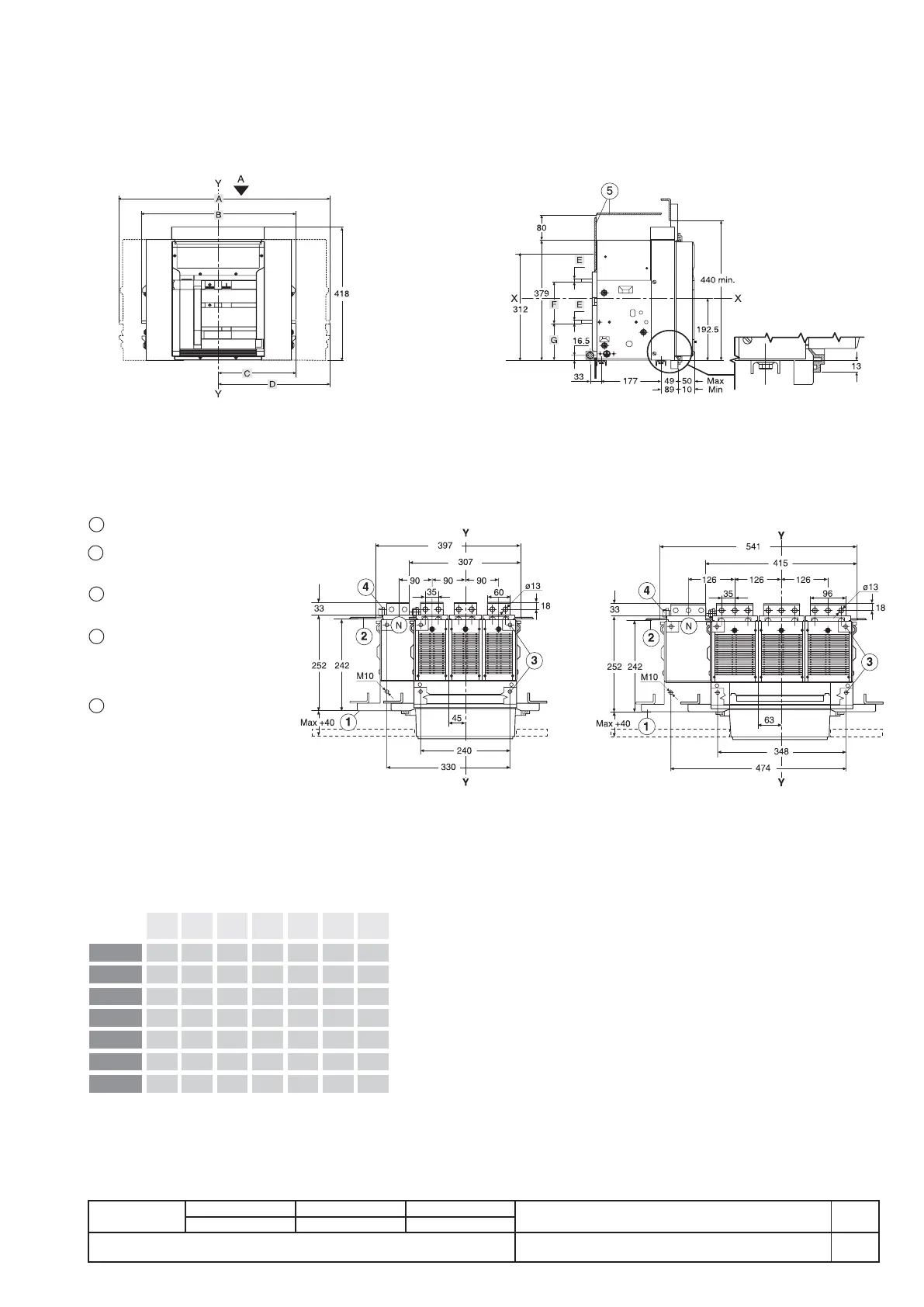

17. Overall dimensions
Fixed circuit-breaker
Basic version with horizontal rear terminals
4 POLES
3 POLES
4 POLES
3 POLES
Legend
1 Inside edge of compartment door
2 Segregation (where foreseen)
3 Circuit-breaker M10 fixing drilling
(use M10 screws)
4 N° 1 M12 screw (E1, E2, E3) or n°
2 M12 screws (E4, E6) for
earthing (included in the supply)
5 Insulating or metal-insulated wall
E1/E2
View A
E3
View A
4 POLES
3 POLES
4 POLES
4 POLES
3 POLES
4 POLES
3 POLES
3 POLES

ABB SACE Emax Series Specifications

General

Frequency	50/60 Hz
Type	Air Circuit Breaker (ACB)
Breaking Capacity	Up to 150kA
Number of Poles	3P, 4P
Standards	IEC 60947-2
Mounting	Fixed
Communication	Modbus, Profibus
Trip Unit	Electronic (PR122, PR123, PR332, PR333, PR332-T, PR333-T)
