1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 6
Ekip Touch Overview
3 - General characteristics
Families
SACE Tmax XT2 - XT4 can be configured with two trip unit families:
 Ekip Dip with dip-switch interface
 Ekip Touch with LCD display
Both families perform protection and measurement functions referring to system notifications and
are available in different models and versions.
Ekip Touch in particular is available in four versions:
 Ekip Touch
 Ekip Touch Measuring
 Ekip Hi-Touch
 Ekip M Touch
As already mentioned, the description of Ekip Touch is included in this manual. For the
description of Ekip Dip refer to the Installation Instructions, see page 4 for references.
Main functions
The Ekip Touch Trip unit guarantees the following functions:
1. Measurement: measurement of different quantities including: currents, voltages, powers,
energies.
2. Protection: based on the measurements detected and the parameters configured by the
user, the Trip unit checks for an alarm and, if necessary, commands the tripping of the
circuit breaker.
3. Signaling: management of contacts and communication networks to optimize system
efficiency, communication between different CBs, and other functionalities
The Ekip Touch functions are guaranteed both by transducers and actuators in the circuit breaker
and by a wide range of external accessories.
Presentation

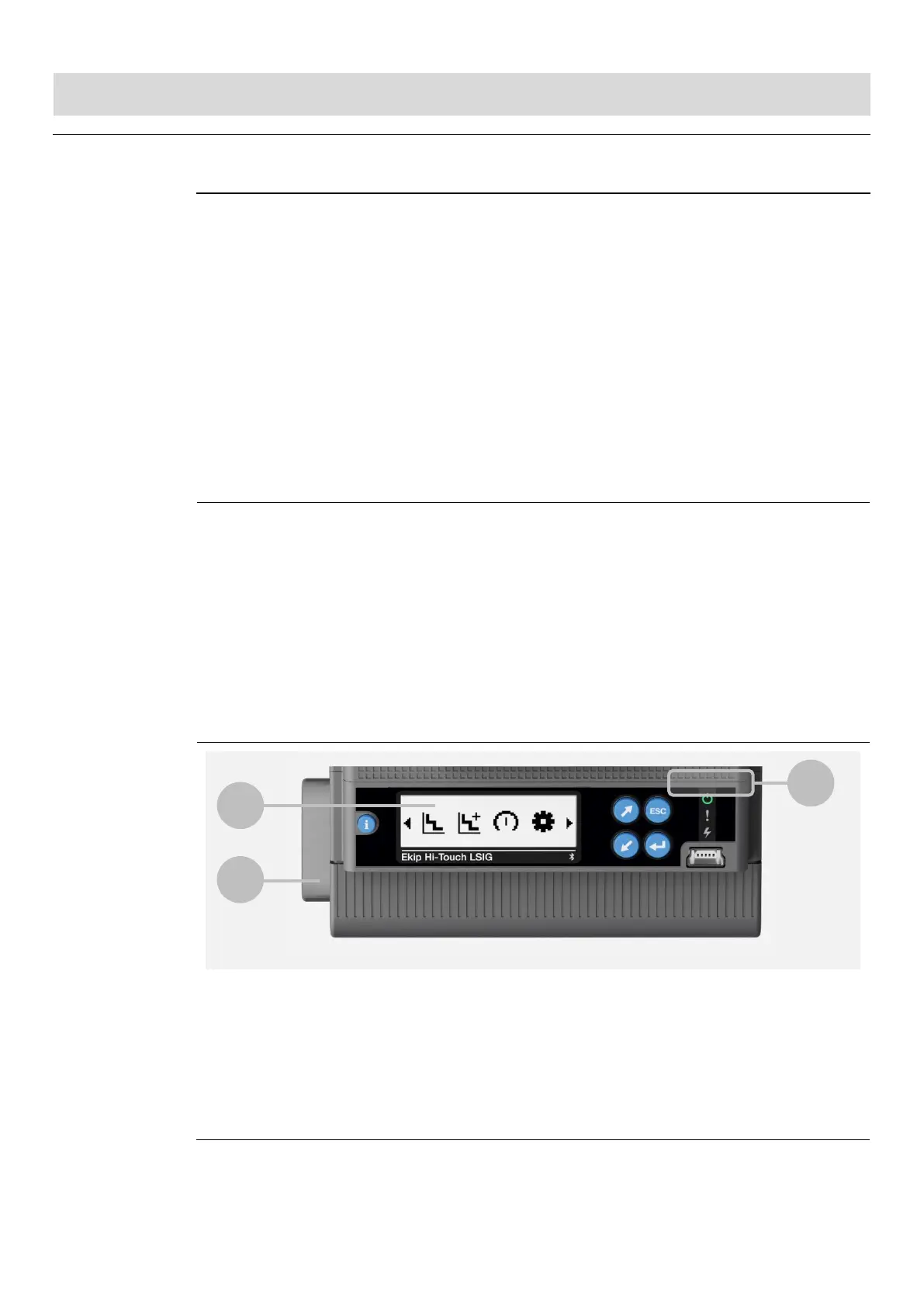

Figure 2
Ekip Touch has an LCD display (, page 21) to access the configuration menus and to check
parameters, measurements, and information.
The connections to external electronic accessories are available on the side terminal board (),
the connections to the internal accessories on the internal terminal board (), see page 11 for
an overview of the electronic accessories (see the Technical Catalog and Wiring Diagrams for
all the other accessories).
1
2
3
