ABB SPA-ZC 302 User Manual

12
1MRS755014
Profibus-DPV1/SPA Gateway
Installation and Commissioning Manual
SPA-ZC 302
2.2. Module parts
A050293

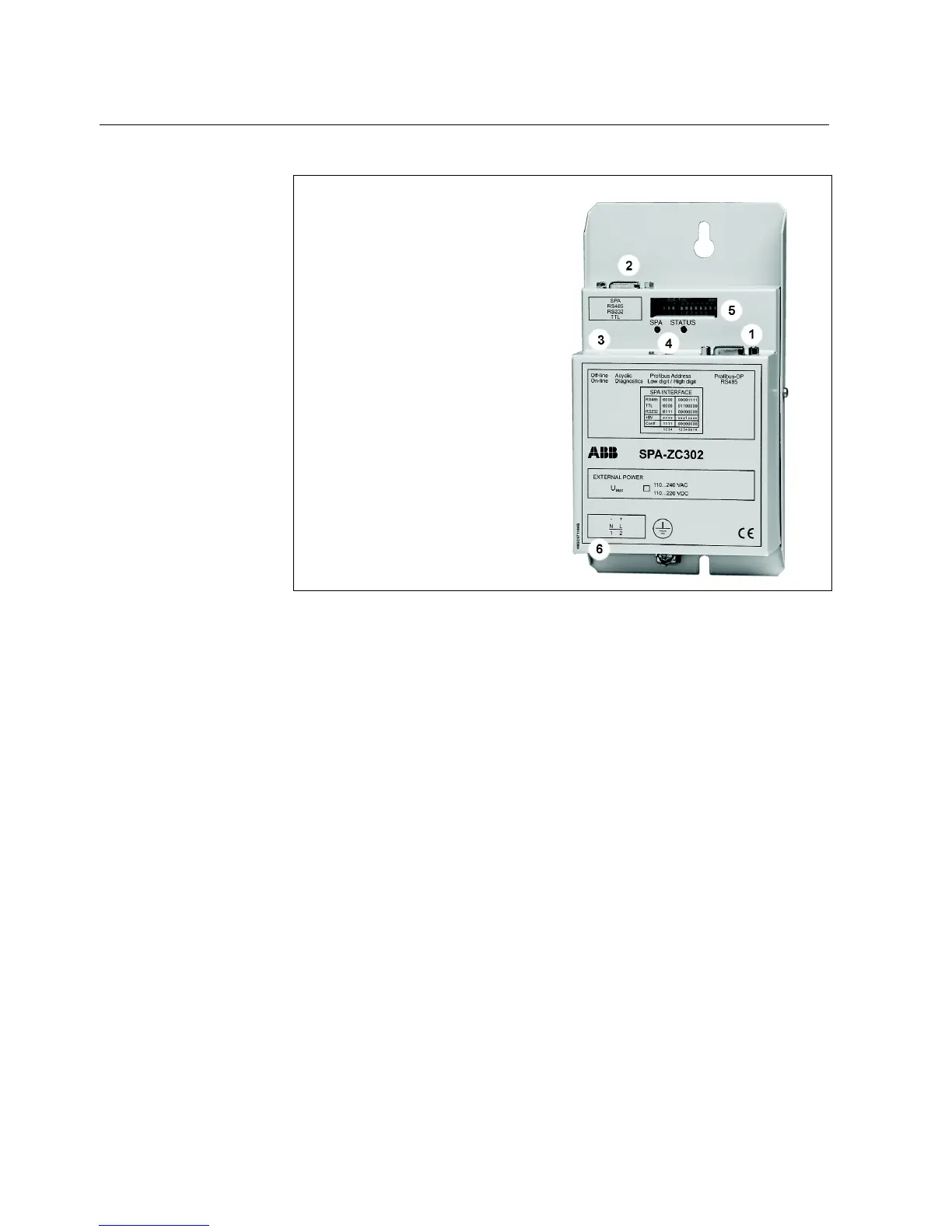

Fig. 2.2.-1 Parts of SPA-ZC 302
2.3. Ordering information
SPA-ZC 302-AA
• SPA-ZC 302 module
• Connection cable for SPA bus relays, for example REF 54x, REM 54x,
SPACOM (Order number: 1MRS120541)
• Gender changer
• This manual
• SPA-ZC 302 configuration CD
SPA-ZC 302-BA
• SPA-ZC 302 module
• Connection cable for SPA bus relays, for example REX 521, RE_610 relays
and SACO annunciator units (Order number: 1MRS120539)
• Connection cable for configuring SPA-ZC 302 module (Order number:
1MRS120541)
• Gender changer
• This manual
• SPA-ZC 302 configuration CD
1 Profibus D-connector
2 SPA bus D-connector
3 Profibus communication LEDs
For details, see Section 8.3.1.
4 SPA communication LEDs
For details, see Section 8.3.1.
5 DIP switches
6 Auxiliary power connector
