ABB TTH300 Series User Manual

38 TTH300 HEAD-MOUNT TEMPERATURE TRANSMITTER | OI/TTH300-EN REV. E
… 11 Operation

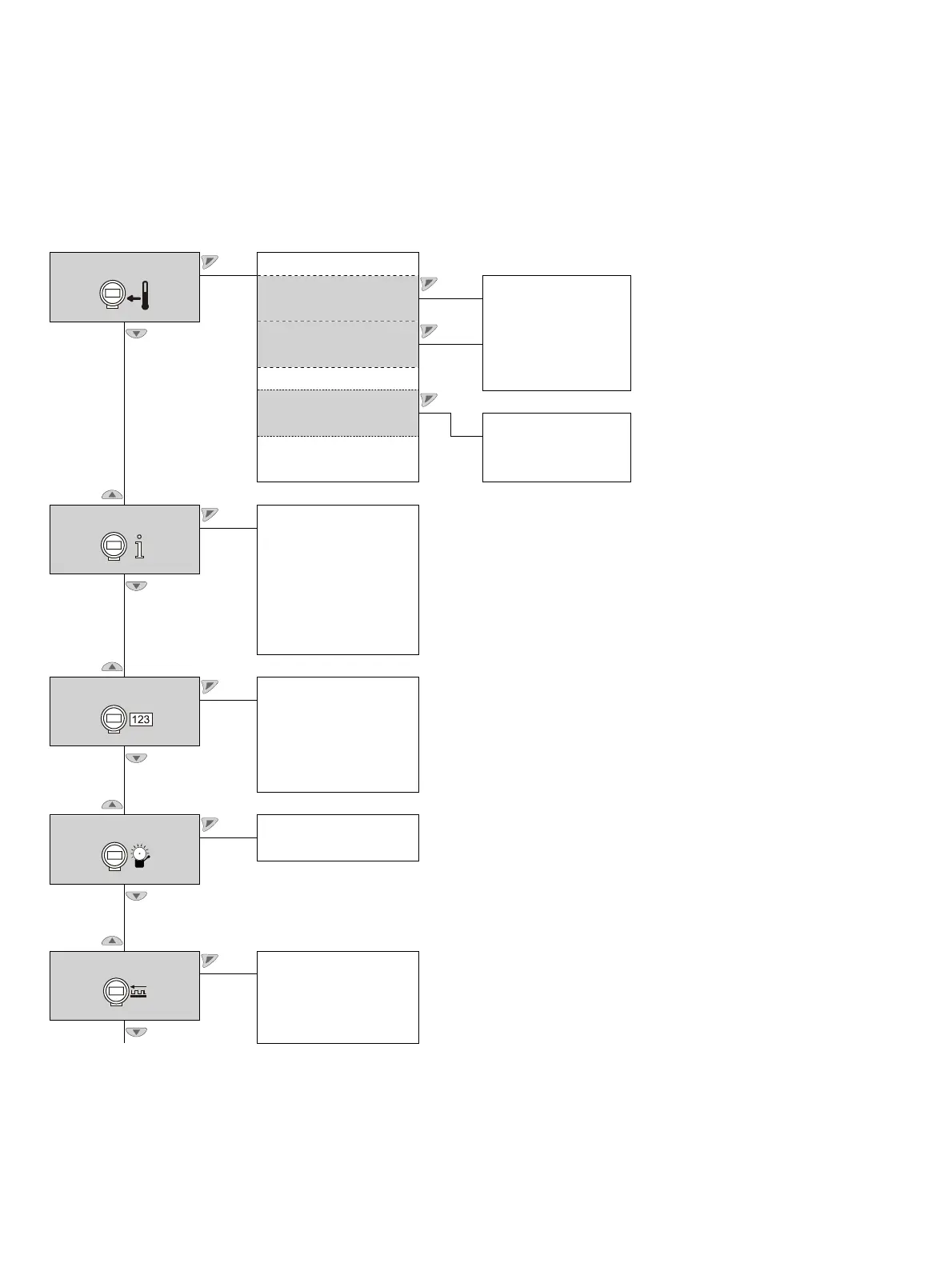

ZART® Parameter Overview
Note
This overview of parameters shows all the menus and parameters available on the device. Depending on the version and
configuration of the device, not all of the menus and parameters may be visible in it.
Device Setup 1 Write protection
Input Sensor 1 Sensor Type
R-Connection
2-wire Resistance
Thermocouple RJ
ext. Thermocouple RJ
Input Sensor 2
Input / output assignment
Measured range
Engineering Unit
Measured Range Begin
Measured Range End
Damping
Factory reset
Device Info 2 Device Type
Serial Number
Software Version
Hardware Version
HART TAG
HART Burstmode
Operation Time
Display 3 Display Value
Bargraph
Bargraph View
Language
Contrast
Process Alarm 4 Fault signaling
Communication 5 HART TAG
Address (Multidrop)
HART Burstmode
HART Burstmode

ABB TTH300 Series Specifications

General

Type	Temperature transmitter
Display	Optional LCD display
Input	RTD, Thermocouple, Resistance
Output	4-20 mA, HART
Accuracy	±0.1% of span
Ambient temperature	-40°C to +85°C (-40°F to +185°F)
Housing material	Aluminum, Stainless steel
Communication	HART
Configuration	Via HART protocol, configuration tools
Power supply	10.5 ... 45 V DC (depending on version and load)
Measurement Range	Depends on sensor type (RTD, Thermocouple, etc.)
Protection Rating	IP66
Sensor Type	RTD, Thermocouple
