Acer A100 User Manual

Machine Maintenance Procedures 3-21
3G Module Installation 0
1. Connect RF cable (F) to IO board connector. (Figure 3-28)
2. Install 3G module (A) on mainboard. (Figure 3-27)
3. Install and secure screw (E) to mainboard.
CAUTION:
!
Route the WLAN antenna around the IO board FPC to prevent it from being
disconnected from mainboard.
4. Connect WLAN antenna (D) to mainboard connector. (Figure 3-26)
5. Connect GPS (C) and RF (B) cables to 3G module connectors labeled auxiliary and main.
6. Install battery.

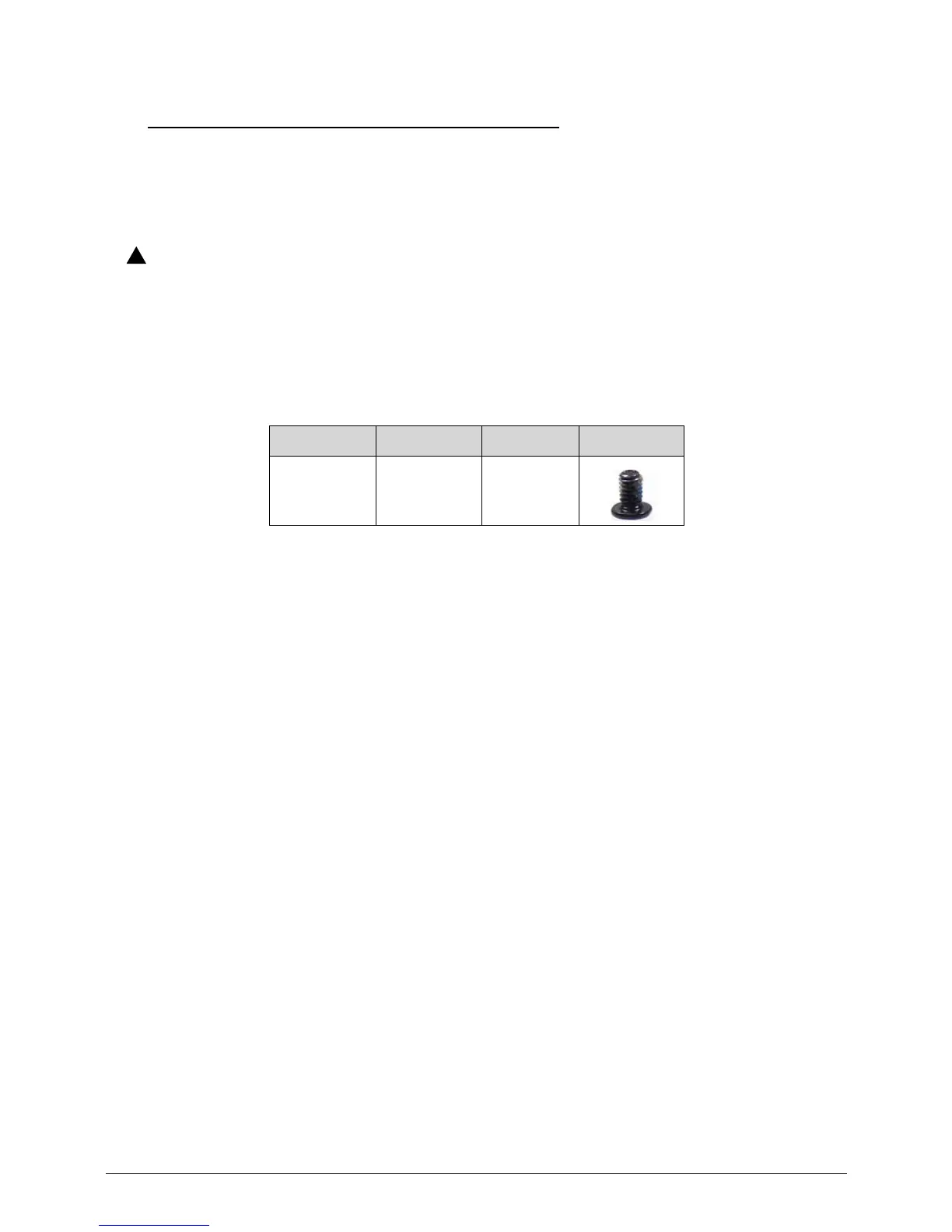

ID Size Quantity Screw Type
E M2.0x3.0 1

Acer A100 Specifications

General

Display	7-inch TFT LCD, 1024x600 resolution
RAM	1 GB
Internal Storage	8GB or 16GB
Rear Camera	5 MP
Front Camera	2 MP
Dimensions	195 x 117 x 13.1 mm
Weight	410 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 2.1, microUSB 2.0
Processor	NVIDIA Tegra 2 dual-core 1GHz
Operating System	Android 3.2 (Honeycomb), upgradable to 4.0 (Ice Cream Sandwich)
Battery	1530 mAh
