5-4 Jumper and Connector Locations
Mainboard Bottom 0

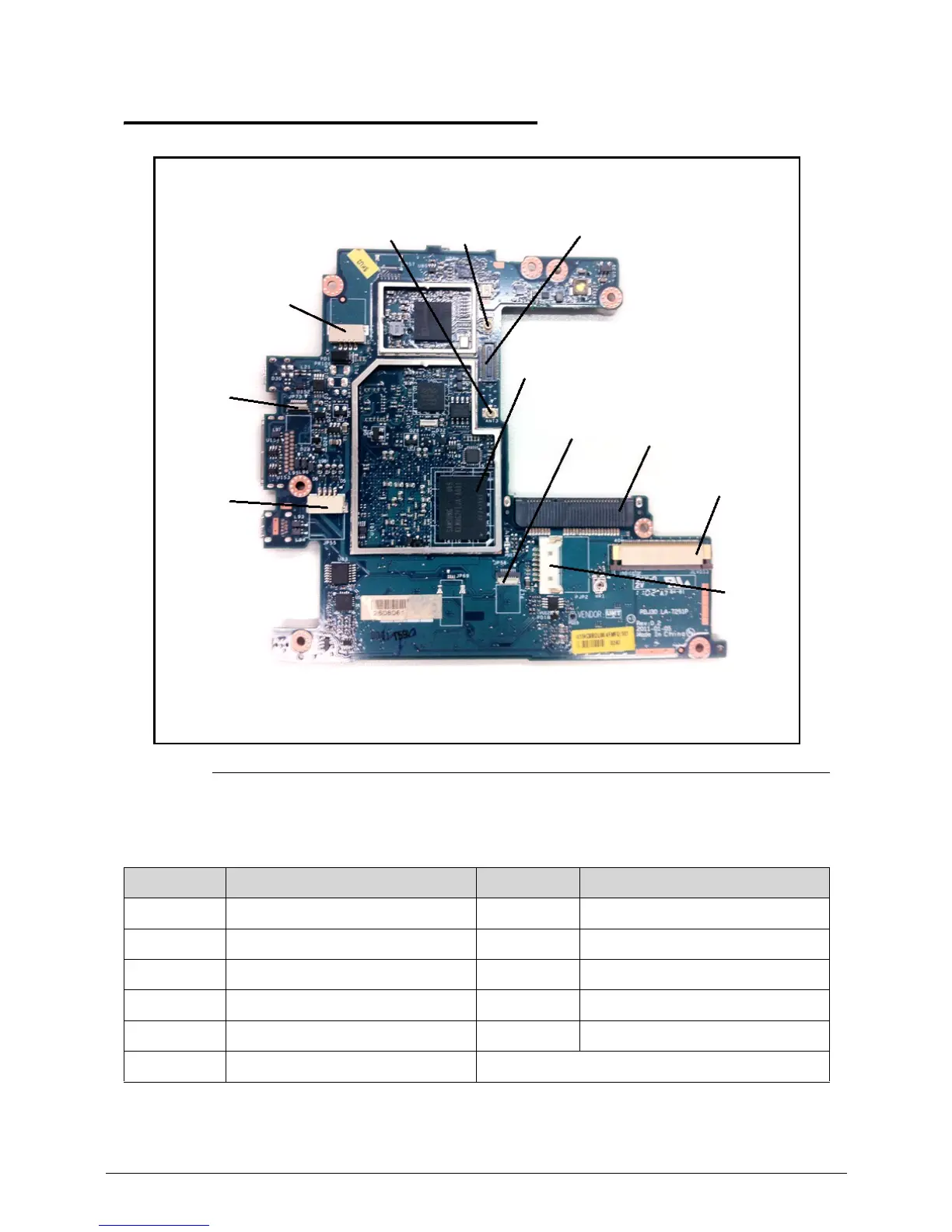

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
PJP1 AC-IN Connector JMIN2 3G Module Connector
ANT3 GPS Antenna Connector JLVDS3 LCD Panel Connector
ANT5 WiFi Antenna Connector PJP2 Battery Connector
JP5 IO/B Connector JP55 Speaker Connector
U19 eMMC Chip JP73 Home-Key/B Connector
JP58 Touch Panel Connector
ANT3
ANT5
JP5
U19
JP58
JMIN2
JLVDS3
PJP2
JP55
JP73
PJP1
