3-24 Machine Maintenance
Removing the Touchpad Board 0
1. Perform the “Removing the Palmrest Module/Upper Case” procedure described on
page 3-21.

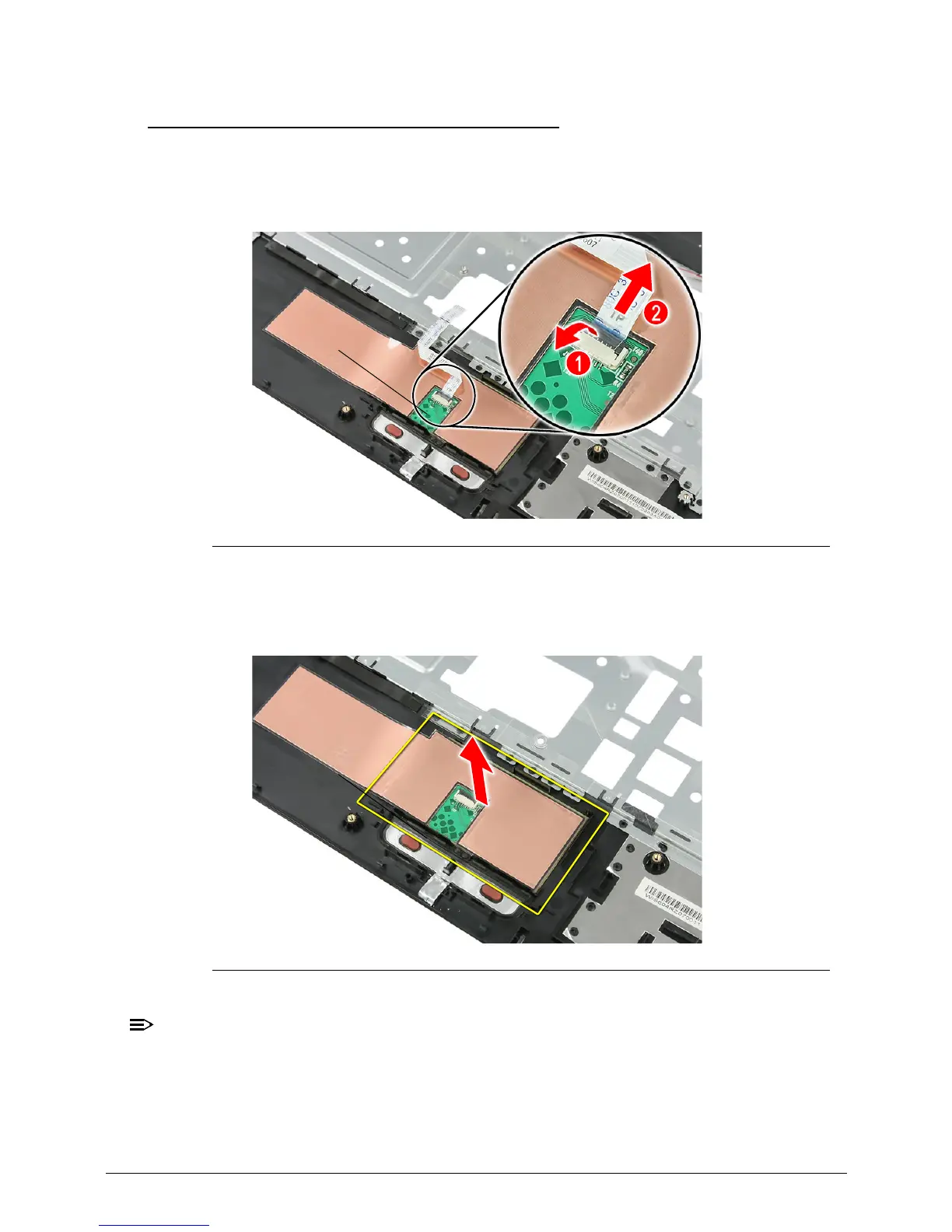

2. Open the connector latch for the touchpad board (1) and then disconnect the cable (2).
Figure 3-29. Touchpad Cable
3. Insert a small flat-blade screwdriver between the touchpad board and the upper case, and
carefully pry the board loose. Remove the touchpad board from the palm rest.
Figure 3-30. Touchpad Board
A circuit board that is > 10cm
2
has been highlighted with a yellow rectangle in
Figure 3-30. Follow the local regulations for disposing this type of circuit board.
To Next Page
