Hardware Specifications and Configurations 1-15
Right View 0

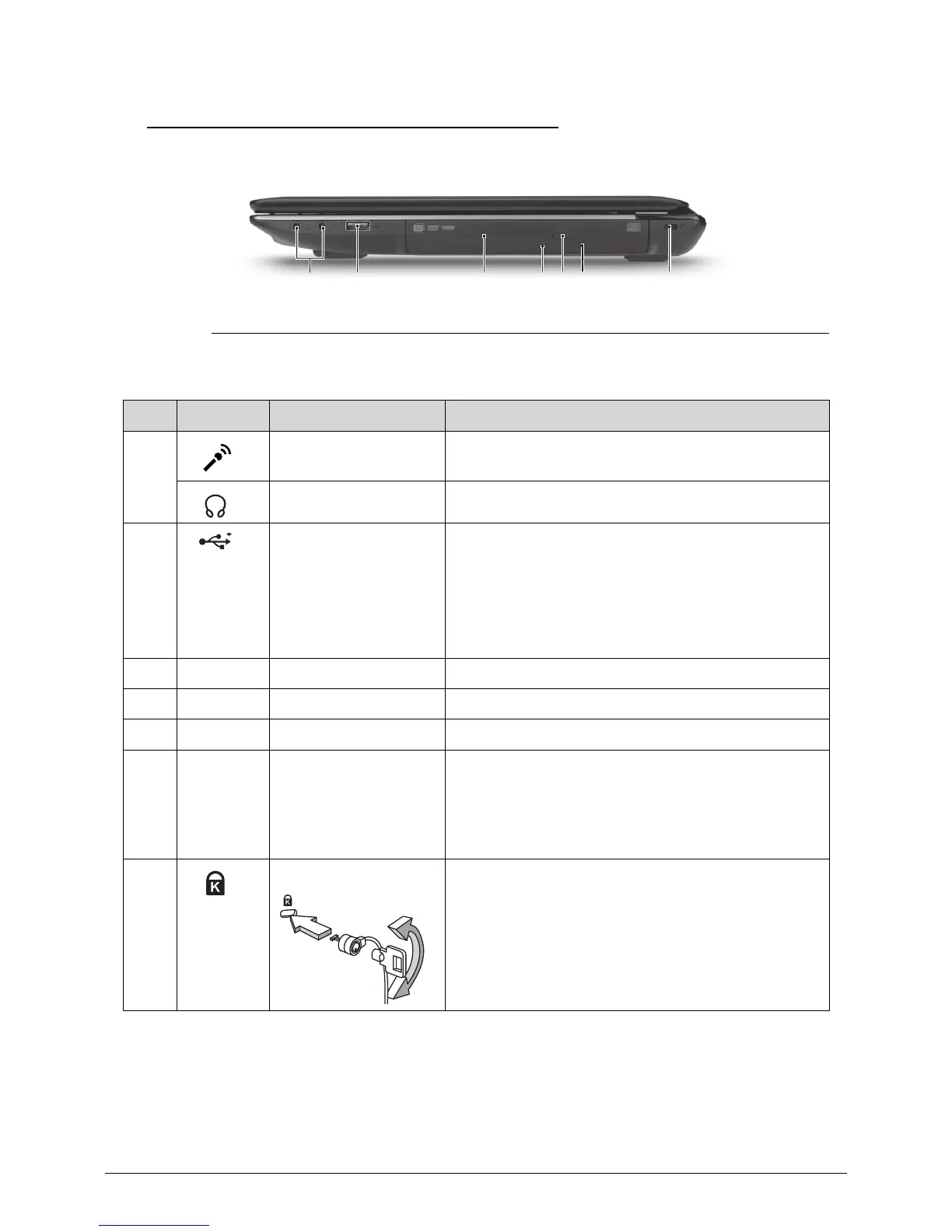

Figure 1-4. Right View
Table 1-4. Right View
No. Icon Item Description
1 Headphones/speaker
/line-out jack
Connects to audio line-out devices (e.g., speakers,
headphone).
Microphone jack Accepts inputs from an external microphone.
2 USB 2.0/3.0* port Connects to USB devices.
* A USB 3.0 port can be distinguished by its blue
connector (for certain models only).
* Supports the USB 3.0 (SuperSpeed USB)
specification; Devices without USB 3.0 certification
may not be compatible.
3 Optical disc drive Internal optical disc drive; accepts CDs or DVDs.
4 ODD access indicator Lights up when the optical drive is active.
5 ODD eject button Ejects the optical disc from the drive.
6 ODD emergency
eject hole
Ejects the optical drive tray when the computer is
turned off.
Note: Insert a paper clip to the emergency eject
hole to eject the optical drive tray when the
computer is off.
7 Kensington lock slot Connects to a Kensington-compatible computer
security lock.
Note: Wrap the computer security lock cable
around an immovable object such as a table or the
handle of a locked drawer. Insert the lock into the
notch and turn the key to secure the lock. Some
keyless models are also available.
