Acer Aspire One D270 Series User Manual

Machine Maintenance Procedures 3-21
3. Carefully pry up the top center edge of the upper case (D) to remove (Figure 3-18).
4. Disconnect the touchpad FPC (B) from the touchpad module connector (E)
(Figure 3-19).

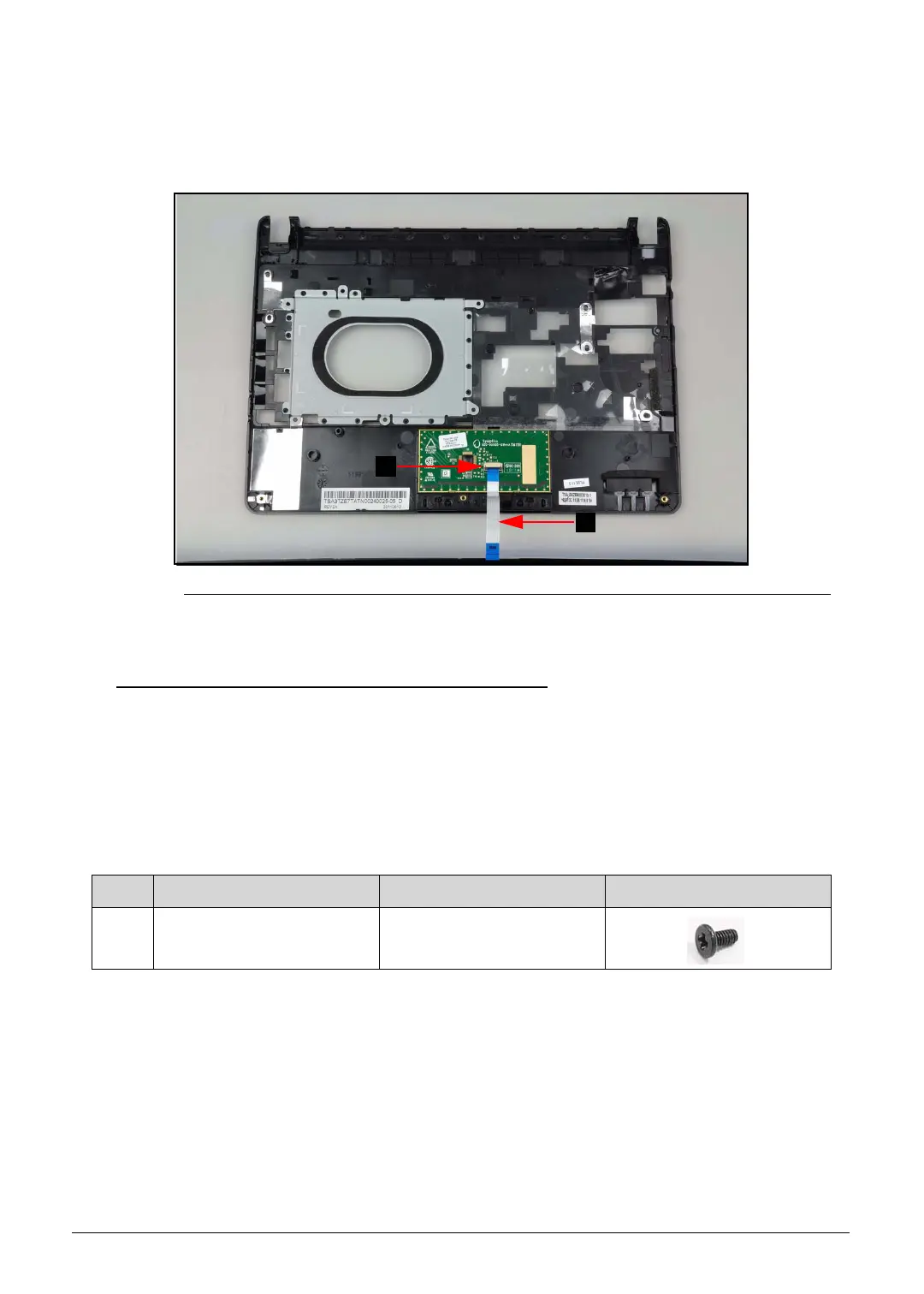

Figure 3-19. Touchpad FPC Removal
Upper Case Installation 0
1. Secure three (3) screws (A). Refer to Figure 3-17.
2. Connect the touchpad FPC (B) to the touchpad module connector (E) (Figure 3-19).
3. Install the upper case on the lower case.
4. Connect the touchpad FPC (B) to the mainboard connector (C) (Figure 3-18).
5. Install the base cover.
ID Size Quantity Screw Type
A M2.0*4.0 3
E
B
http://mycomp.su - Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook
Ремонт ноутбуков.Запчасти и комплектующие для ноутбука. Схемы,сервис мануалы,инструкции по разборке ноутбука.

Acer Aspire One D270 Series Specifications

General

Graphics	Intel GMA 3600
RAM	1GB or 2GB DDR3
Weight	1.3 kg (2.87 lbs)
Webcam	0.3 MP
Card Reader	Multi-in-1 card reader
Processor	Intel Atom N2600
Display	10.1-inch, 1024 x 600 resolution
Storage	320GB HDD
Operating System	Windows 7 Starter
Battery	6-cell Li-ion
Wireless	Wi-Fi 802.11b/g/n
Ports	3 x USB 2.0, VGA, HDMI
