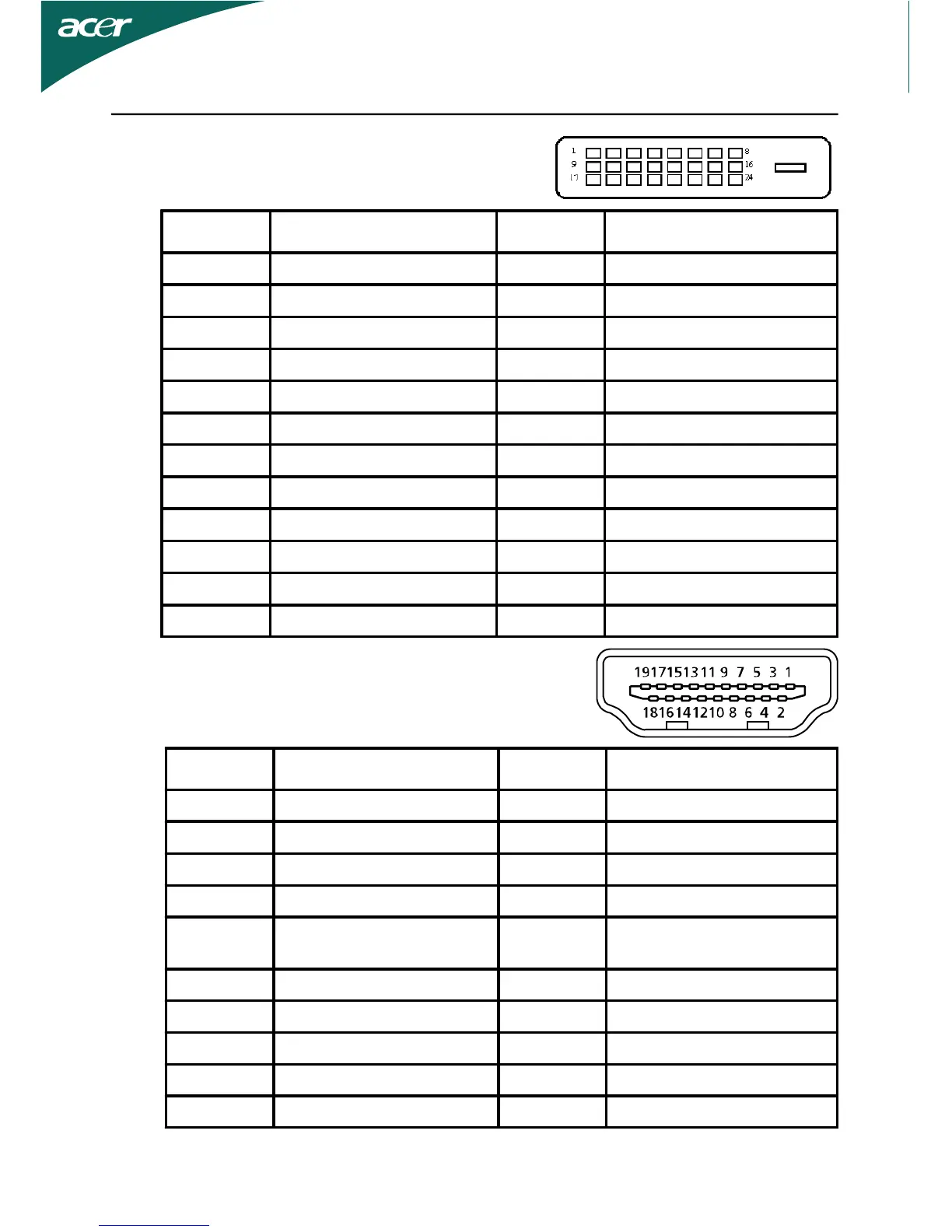

24-Pin Color Display Signal Cable*
PIN Meaning PIN Meaning
1. TMDS Data2- 13. NC
2. TMDS Data2+ 14. +5V Power
3. TMDS Data 2/4 Shield 15. Logic Ground
4. NC 16. Hot Plug Detect
5. NC 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19. TMDS Data 0/5 Shield
8. NC 20. NC
9. TMDS Data1- 21. NC
10. TMDS Data1+ 22. TMDS Clock Shield
11. TMDS Data 1/3 Shield 23. TMDS Clock+
12. NC 24. DDC TMDS Clock-
19-Pin color display signal cable*
PIN Meaning PIN Meaning
1. TMDS Data2+ 10. TMDS Clock+
2. TMDS Data2 Shield 11. TMDS Clock Shield
3. TMDS Data2– 12. TMDS Clock–
4. TMDS Data1+ 13. CEC
5. TMDS Data1 Shield 14.
Reserved (N.C. on
device)
6. TMDS Data1– 15. SCL
7. TMDS Data0+ 16. SDA
8. TMDS Data0 Shield 17. DDC/CEC Ground
9. TMDS Data0– 18. +5V Power
19. Hot Plug Detect
* only for certain models

Acer T231H Specifications

General

3D	No
Screen shape	Flat
Response time	2 ms
Backlight type	-
Display diagonal	23 \
Native aspect ratio	16:9
Supported video modes	1080p
Contrast ratio (dynamic)	80000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI-D ports quantity	1
USB Type-A downstream ports quantity	0
Cables included	AC
Certification	FCC, CE
Product color	Black
AC input voltage	110 - 220 V
Power consumption (standby)	0.890 W
Power consumption (typical)	35.50 W
Panel mounting interface	100 x 100 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	82 mm
Width (without stand)	563 mm
Height (without stand)	395 mm
Weight (without stand)	5942 g
