IIPace1PRMT H17Q
MEMBER
PoE Camera
PoE Camera
PoE Camera
PoE Camera
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
PoE+ over CAT5e up to 500m max.
or Single UTP up to 153m max.
100m max.
100m max.
100m max.
100m max.
PoE compliant
100m max.
PoE compliant
100m max.
PoE compliant
100m max.
PoE compliant
100m max.
Structured Cable
or Single UTP
Legend:
Pace1PRM
Pace1PRM
Pace1PRM
Pace1PRM
Pace1PTM
Pace1PTM
Pace1PTM
Pace1PTM
Powered Switch or
NetWay MidSpan

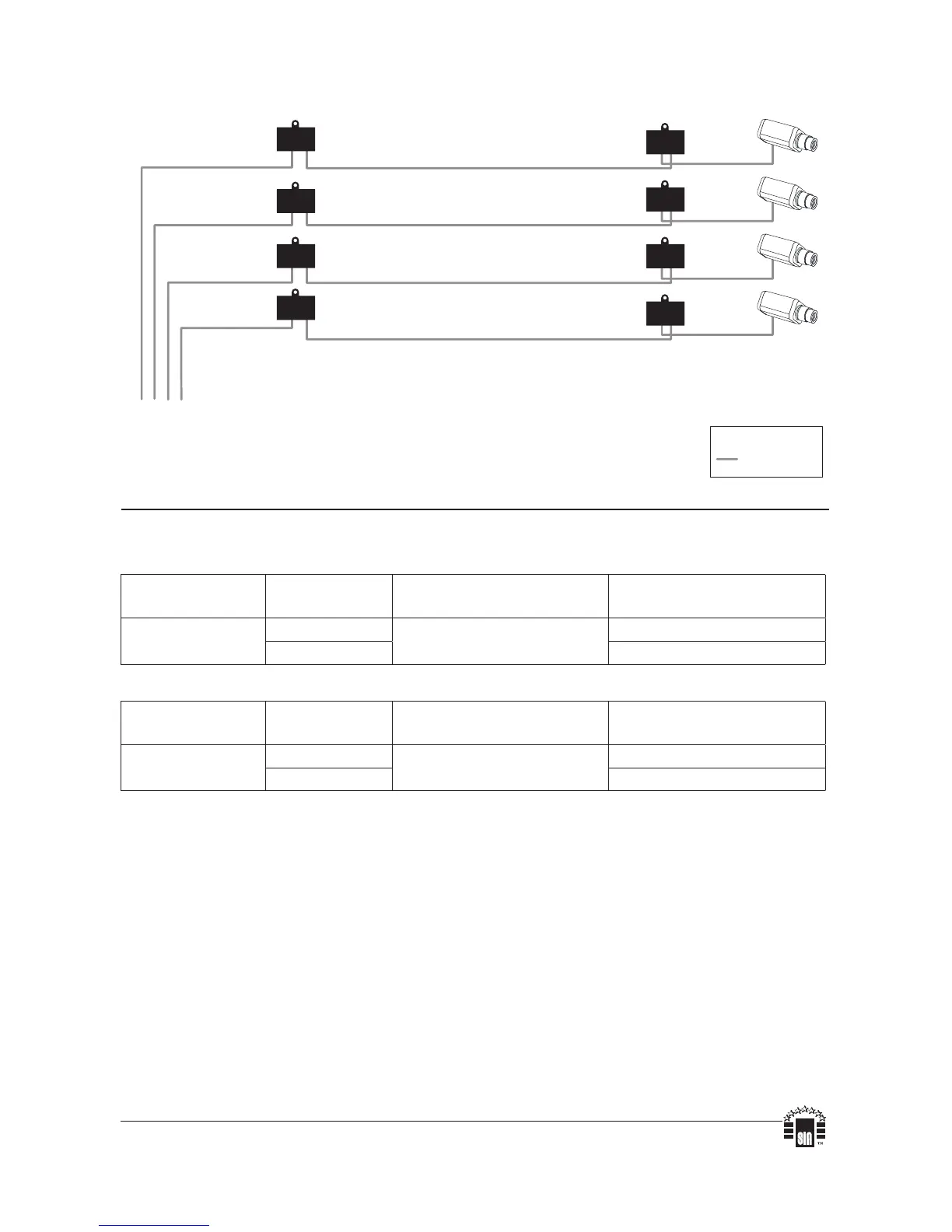

Multiple PoE Cameras Connection:
Fig. 3
Maximum Length of Cable Type vs. Camera Power/PoE Class:
Cable Type
Total Power
Consumption
Max.
Data Distance
Max.
Power Distance
CAT5e
15W
500m
846m
30W 423m
Cable Type
Total Power
Consumption
Max.
Data Distance
Max.
Power Distance
Single UTP
(23AWG)
15W
153m
266m
30W 133m
Note: Calculations based on 56VDC starting voltage from power source and accounts for a
10VDC voltage drop. IEEE standards voltage range requirement for powered devices are:
PoE (15W) - 37VDC to 57VDC
PoE+ (30W) - 44VDC to 57VDC.
