AOC L42H961 User Manual

17
Using Composite (AV) Video
Connecting your DVD Player (Good)
1. Turn off the HDTV and DVD player.
2. Connect the Video (yellow color)
connector on your DVD player to the
Video (yellow color) connector in the AV
group.
3. Connect the R (red color) and L (white
color) audio connectors on your DVD
player to the corresponding R (red color)
and L (white color) audio input connectors
in the AV group.
4. Turn on the HDTV and DVD Player.
5. Select AV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.

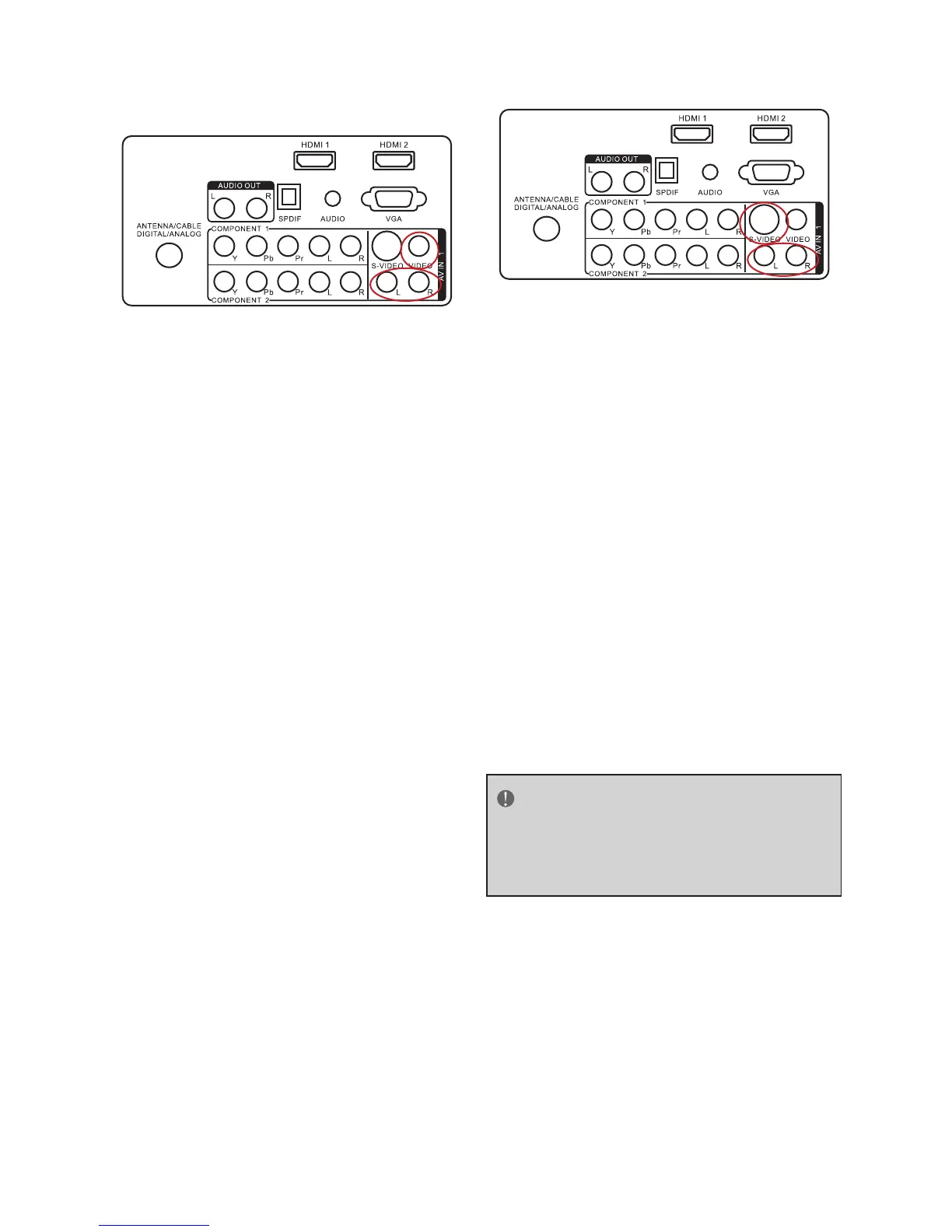

Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video
Camera.
2. Connect the S-Video jack on the rear of
your VCR or Video Camera to the S-Video
jack in the AV group on the rear of the
HDTV.
3. Connect an audio cable (white and red
connectors) cable to the audio output
connectors associated with the S-Video
output on your VCR or Video Camera
and connect the other end to the audio
connectors associated with the AV input
on the rear of the HDTV.
4. Turn on the HDTV and VCR or Video
Camera.
5. Select AV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.
NOTE

Refer to your VCR or Video Camera user
manual for more information about the
video output requirements of the product.
