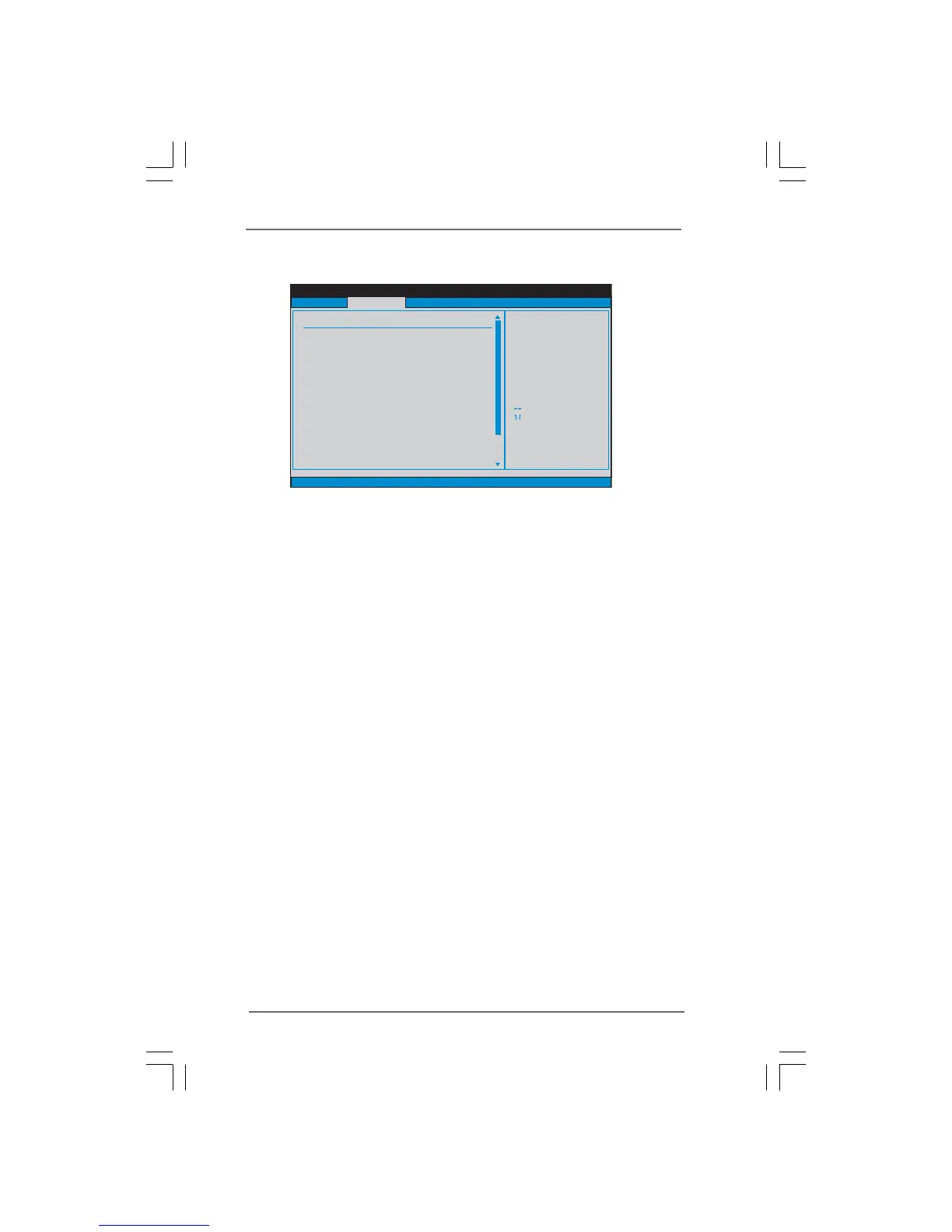

BIOS SETUP UTILITY
DRAM Timing Control
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
OC Tweaker
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
DRAM tCL
[Auto]
6
6
6
15
44
6
4
3
4
DRAM tRCD
DRAM tRP
DRAM tRAS
DRAM tRFC
DRAM tWR
DRAM tWTR
DRAM tRRD
DRAM tRTP
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
DRAM tCL
Value
DDR2
Min=3
Max=7
DDR3
Min=5
Max=10
DRAM Timing Configuration
DRAM tCL
This controls the number of DRAM clocks for TCL. For DDR3, Min: 5. Max:
10. For DDR2, Min: 3. Max: 7. The default value is [Auto].
DRAM tRCD
This controls the number of DRAM clocks for TRCD. Min: 3. Max: 10. The
default value is [Auto].
DRAM tRP
This controls the number of DRAM clocks for TRP. Min: 3. Max: 10. The
default value is [Auto].
DRAM tRAS
This controls the number of DRAM clocks for TRAS. Min: 9. Max: 24. The
default value is [Auto].
DRAM tRFC
This controls the number of DRAM clocks for TRFC. Min: 15. Max: 78. The
default value is [Auto].
DRAM tWR
This controls the number of DRAM clocks for TWR. Min: 3. Max: 15. The
default value is [Auto].
DRAM tWTR
This controls the number of DRAM clocks for TWTR. Min: 2. Max: 15. The
default value is [Auto].
DRAM tRRD
This controls the number of DRAM clocks for TRRD. Min: 2. Max: 15. The
default value is [Auto].
DRAM tRTP
This controls the number of DRAM clocks for TRTP. Min: 2. Max: 13. The
default value is [Auto].

ASROCK G41C-VS Specifications

General

Non-ECC	Yes
Number of memory slots	4
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	2
ATX Power connector (24-pin)	No
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	FCC, CE, EuP Ready
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Networking features	10/100 Mbps
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	198 mm
Width	224 mm
