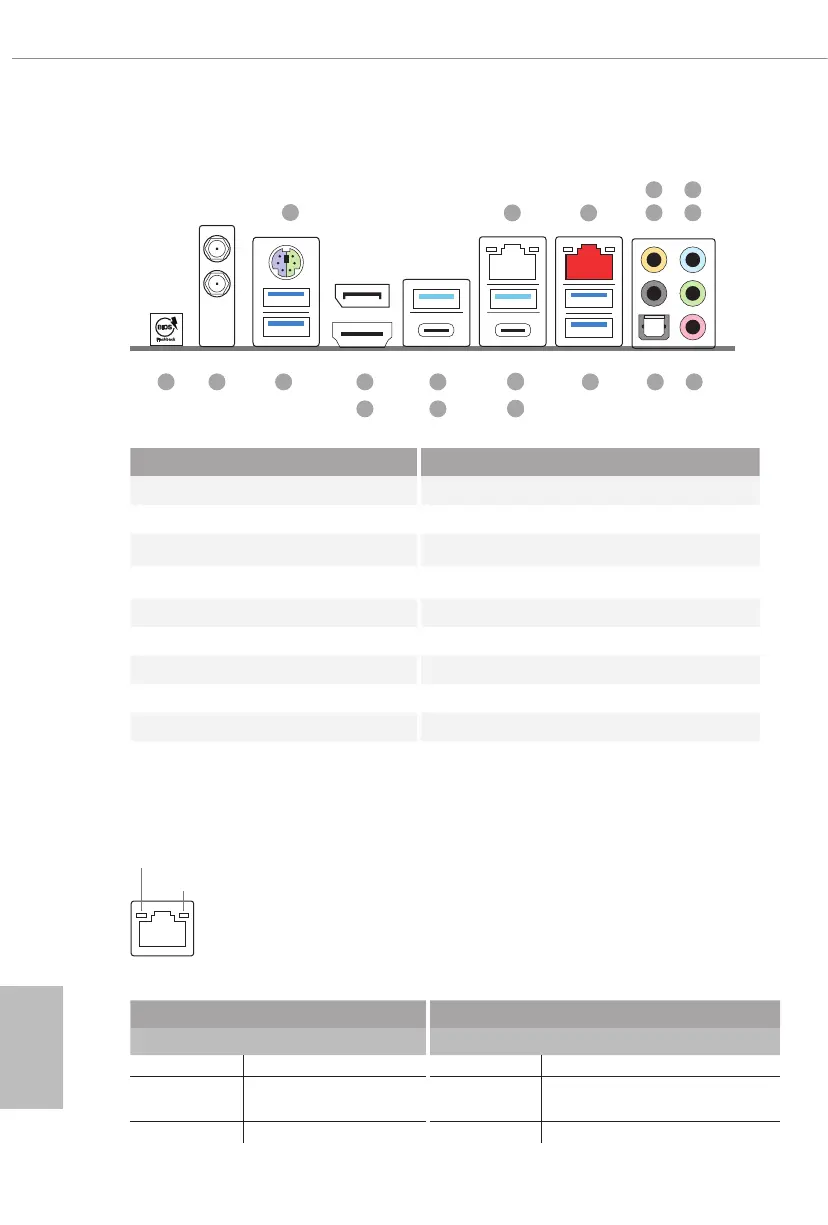

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 10 USB 3.2 Gen1 Ports (USB3_5_6)****
2 LAN RJ-45 Port (Intel® I211AT)* 11 USB 3.2 Gen1 Port (USB3_4)
3 10G LAN RJ-45 Port 12 USB 3.2 Gen2 Type-C Port
(AQUANTIA® AQC107)** 13 USB 3.2 Gen1 Port (USB3_3)
4 Central / Bass (Orange) 14 USB 3.2 Gen2 Type-C Port
5 Rear Speaker (Black) 15 DisplayPort 1.4 Input
6 Line In (Light Blue) 16 HDMI Port
7 Front Speaker (Lime)*** 17 USB 3.2 Gen1 Ports (USB3_1_2)
8 Microphone (Pink) 18 Antenna Ports
9 Optical SPDIF Out Port 19 BIOS Flashback Button
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
14
1
8913
13
12
12
11
16
1517
5
4
7
6
1819
2
10
3
ACT/LINK LED
SPEED LED
LAN Port
