ASUS A7V8X-MX SE motherboard user guide 1-21

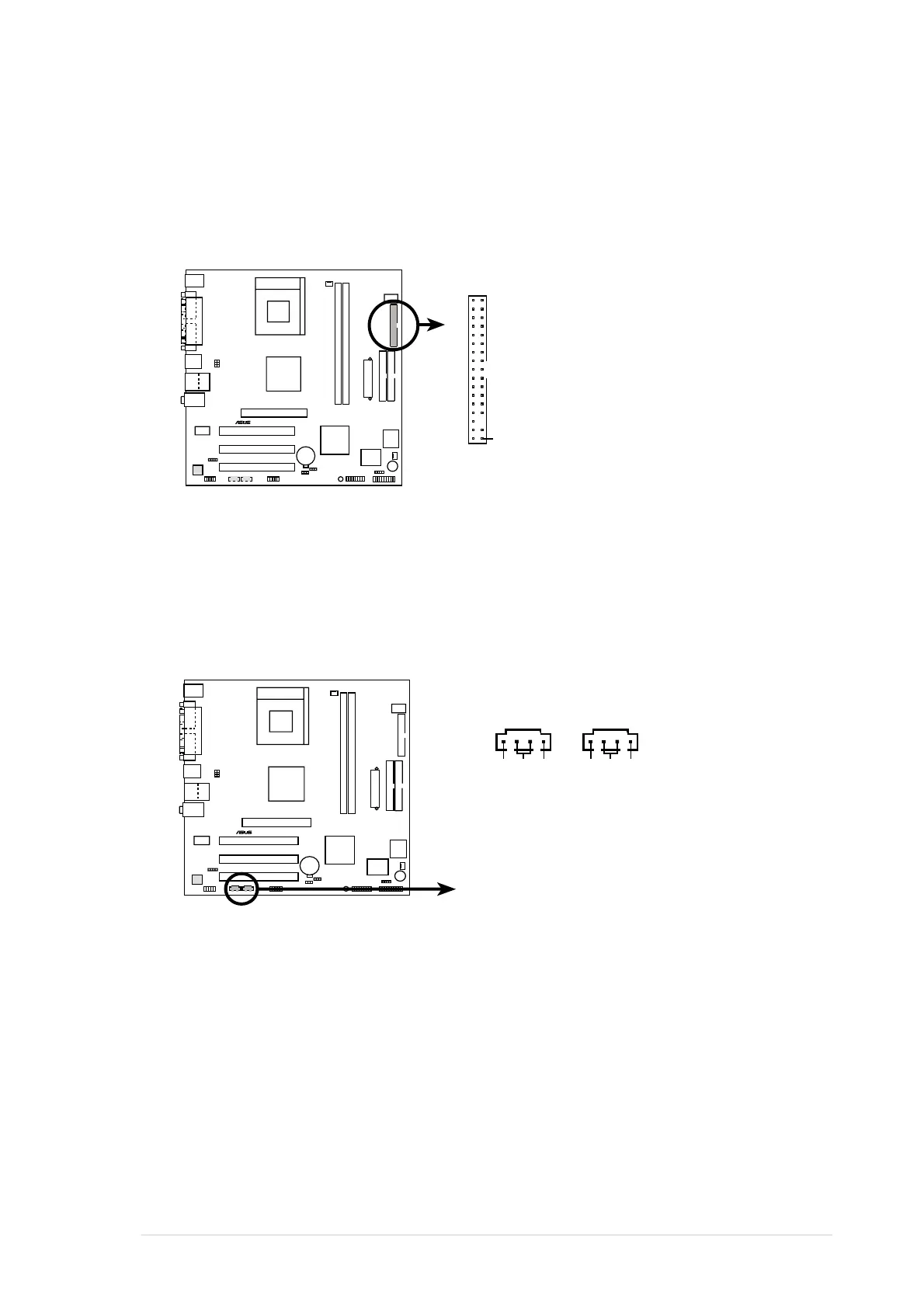

10. Internal audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
A7V8X-MX SE
®
A7V8X-MX SE Internal Audio Connectors
CD(Black)AUX(White)
Right Audio Channel
Left Audio Channel
Ground
Right Audio Channel
Left Audio Channel
Ground
9. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the floppy
drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables
with pin 5 plug.)
A7V8X-MX SE
®
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
A7V8X-MX SE Floppy Disk Drive Connector
PIN 1
FLOPPY
