Asus DSL-AC88U User Manual

34
Using the Servers Center
Servers Center provides settings for Samba and FTP Shares.
Using the Network Place (Samba) Share service
The Network Place (Samba) Share feature allows Mac OSX,
Windows, and Linux clients to access files on the USB storage
device.
To use Samba share:

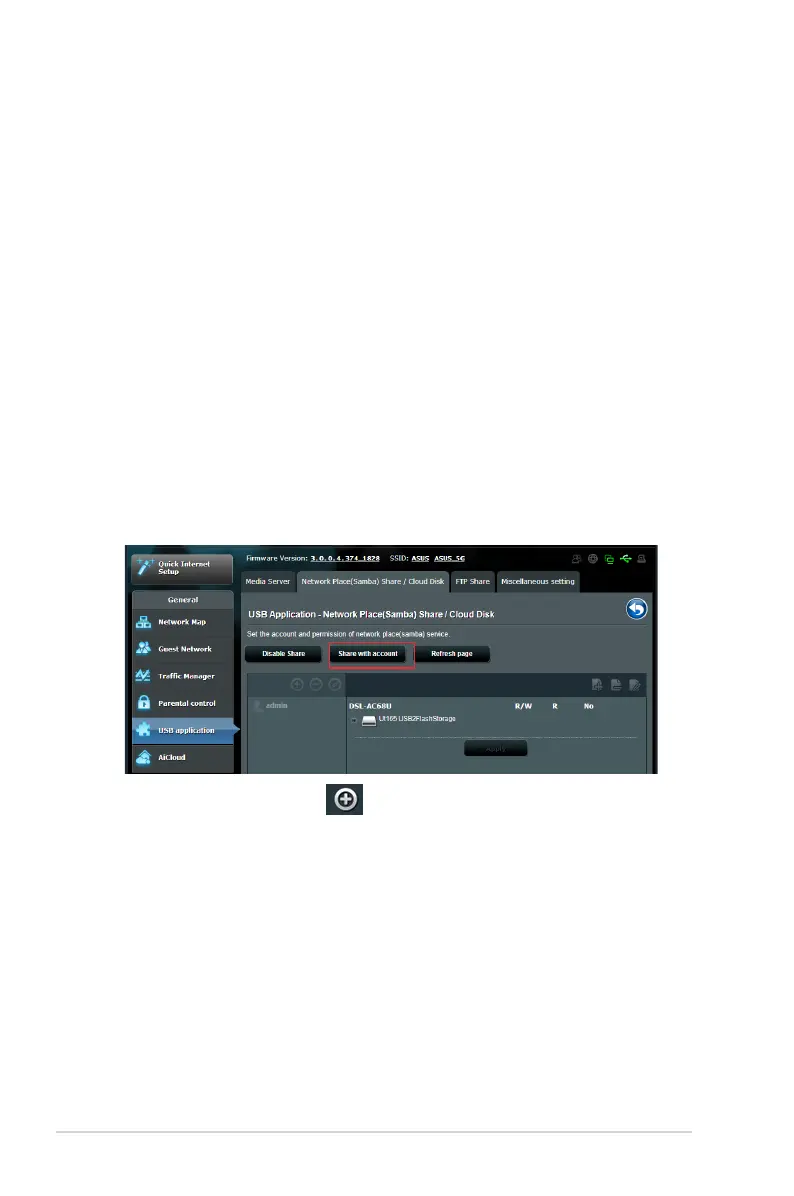

1. Click USB application on the left navigation panel and click
the Servers Center icon.
2. Click the Network place (Samba) Share tab.
3. Click Share with account.
4. Click the Add button to create user accounts for users
who will be accessing the USB storage device via Samba.

Asus DSL-AC88U Specifications

General

Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3167 Mbit/s
WLAN data transfer rate (first band)	1000 Mbit/s
WLAN data transfer rate (second band)	2167 Mbit/s
VPN support	‧VPN server(PPTP/Open VPN) ‧VPN client(PPTP/L2TP/Open VPN)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
Security algorithms	WPA-PSK, WPA2-PSK
Antennas quantity	4
AC input voltage	110 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Cables included	AC, DSL, LAN (RJ-45)
Product type	Tabletop router
Product color	Black
LED indicators	DSL, LAN, Power, WLAN
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	180 mm
Width	292 mm
Height	61 mm
Weight	795 g
