Asus DSL-N55U User Manual

34
Configuring the Advanced settings
Advanced Setting allows you to configure the advanced features
of your ADSL router.
Setting up the DHCP Server
You may enable the DHCP Server function in your ADSL router so
your network clients can automatically obtain IP addresses from
your ADSL router.
NOTE: The ASUS ADSL router can support up to 253 IP
addresses for your network.
To set up the DHCP server:

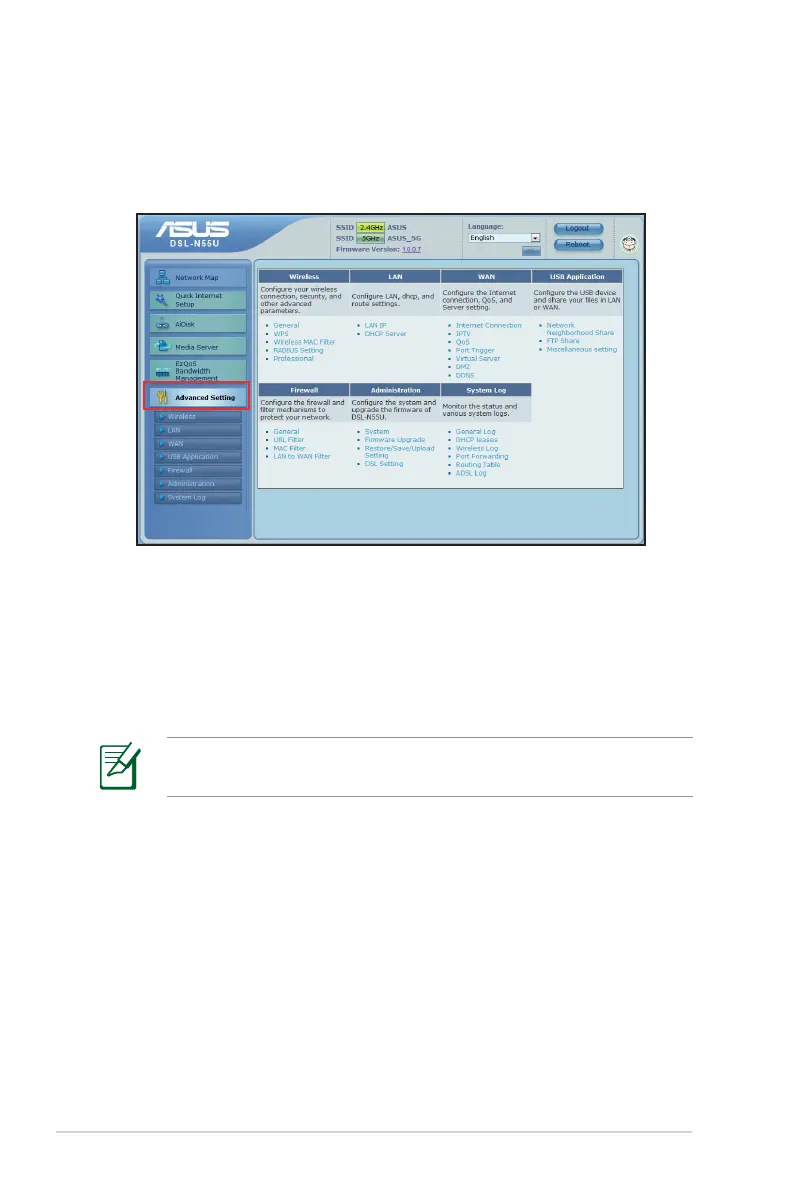

1. Click Advanced Setting from the navigation menu at the left
side of your screen.
2. Under the LAN menu, click DHCP Server.

Asus DSL-N55U Specifications

General

Rack mounting	-
Frequency band	2.4 & 5 GHz
Frequency range	2.4 - 5 GHz
xDSL connection	Yes
USB ports quantity	2
Maximum data transfer rate	54 Mbit/s
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 600 Mbit/s
Antennas quantity	3
Antenna gain level (max)	2 dBi
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Certification	CE, C-Tick, IDA, PCT, Wi-Fi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Minimum RAM	8 MB
LED indicators	LAN, Power, WLAN
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W

Weight and Dimensions

Depth	148.8 mm
Width	207 mm
Height	35.5 mm
Weight	400 g
