Chapter 1: Product introduction

Place this side

towards the rear

of the chassis

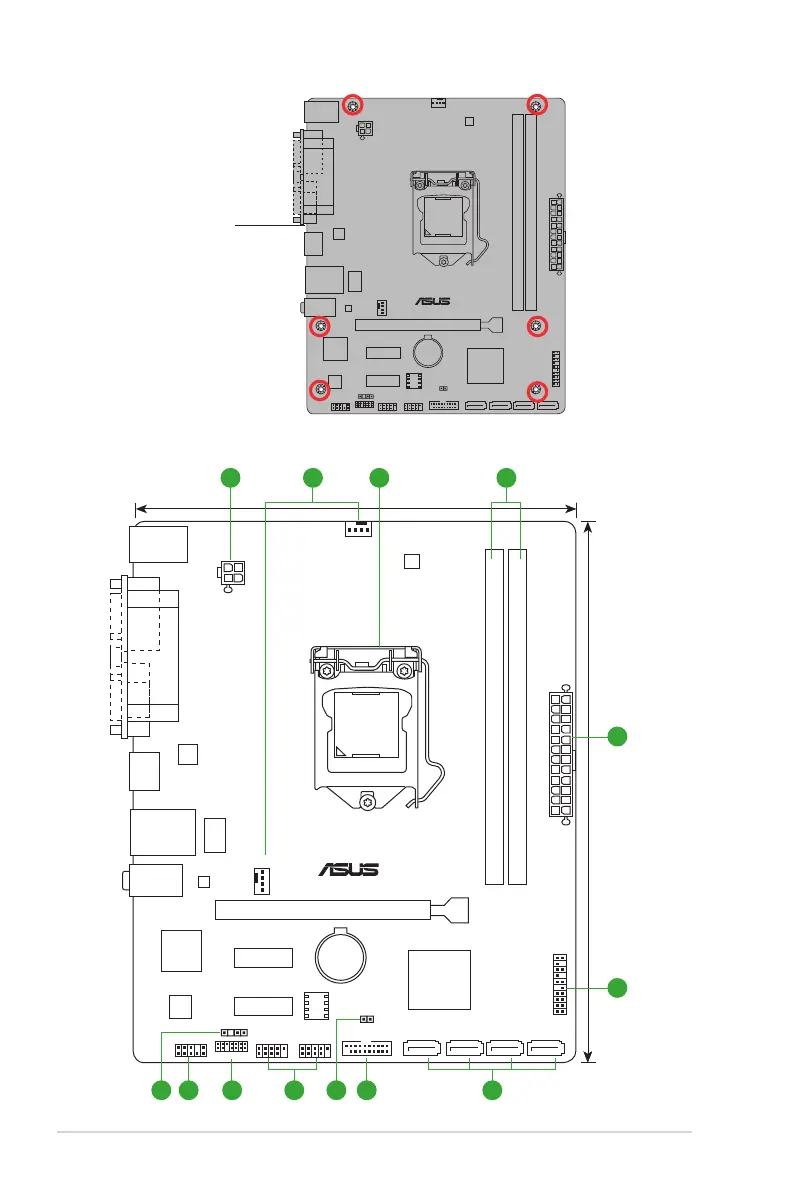

1.2.3 Motherboard layout

H110M-D D3

PCIEX16_1

PCIEX1_1

PCIEX1_2

CLRTC

SPDIF_OUT

USB56USB910

USB3_12

AAFP

ATX12V

EATXPWR

CPU_FAN

CHA_FAN

LANGuard

BATTERY

Super

I/O

ASM

1442K

ALC

887-VD2

Realtek

8111H

DIGI

+VRM

LGA1151

Intel

H110

DDR3 DIMM_A1 (64bit, 240-pin module)

DDR3 DIMM_B1 (64bit, 240-pin module)

SATA6G_2SATA6G_1 SATA6G_3 SATA6G_4

128Mb

BIOS

22.6cm(8.9in)

18.5cm(7.3in)

AUDIO

LAN_USB3_34

HDMI

KBMS_USB78

LPT

VGA

COM

PANEL

TPM

1 432

678

91112 10

Questions and Answers:

Need help?

Do you have a question about the Asus H110M-D D3 and is the answer not in the manual?

Asus H110M-D D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Max Memory	32GB
PCIe 3.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
SATA 6Gb/s Ports	4
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Memory Standard	DDR3 1600/1333 MHz
LAN	Realtek RTL8111H
Video Outputs	DVI-D, VGA
