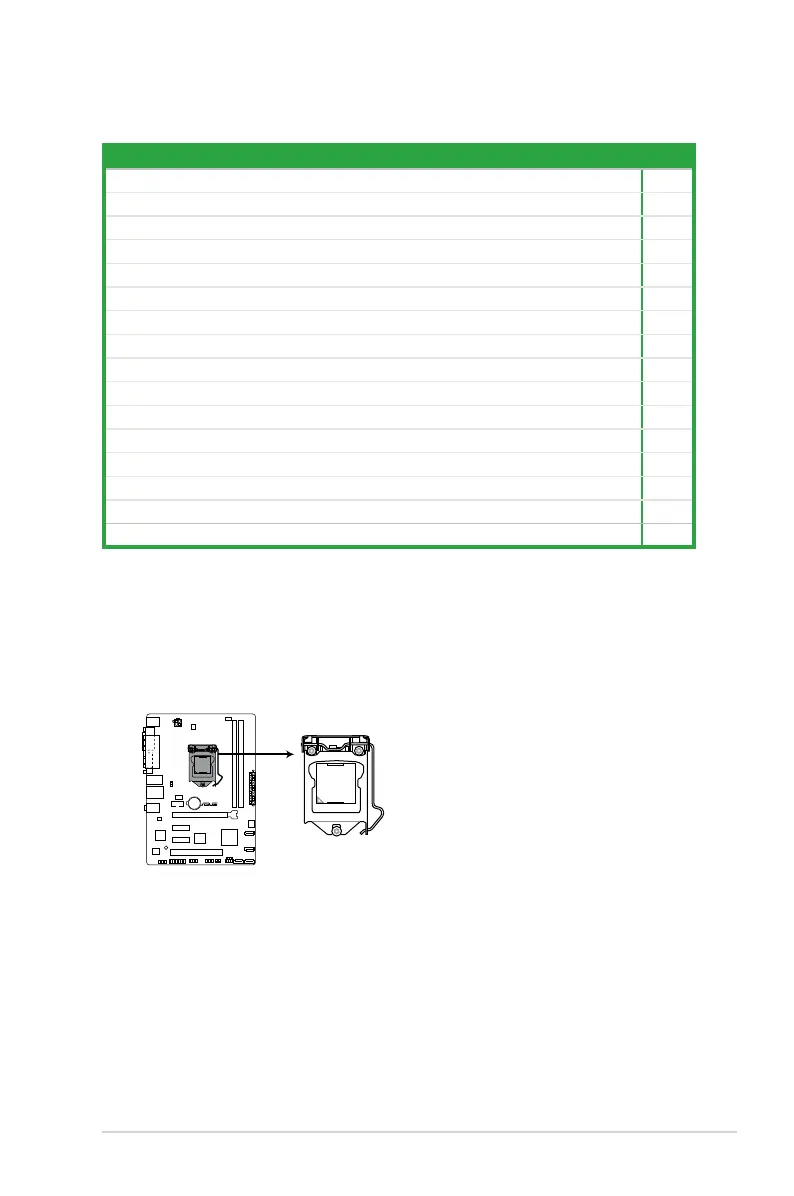

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. PS2 and USB device wakeup (PS2_USBPW1~6) 1-11
2. ATX power connectors (24-pin ATXPWR, 4-pin ATX12V) 1-14
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-16
4. Intel
®
LGA1150 CPU socket 1-3
5. DDR3 DIMM slots 1-7
6. Intel
®
H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1~2 [dark brown]) 1-16
7. Speaker connector (4-pin SPEAKER) 1-18
8. Intel
®
H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~2 [yellow]) 1-15
9. System panel connector (10-1 pin F_PANEL) 1-18
10. USB device wake-up (USBPW9~12) 1-12
11. Clear RTC RAM (3-pin CLRTC) 1-10
12. USB 2.0 connectors (10-1 pin USB910, USB1112) 1-17
13. TPM header (20-1 pin TPM) 1-14
14. Onboard LED (SB_PWR) 1-19
15. Front panel audio connector (10-1 pin AAFP) 1-15
16. Serial port connectors (10-1 pin COM) 1-17
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel
®
4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, Celeron
®
processors.
H81M-C
H81M-C CPU socket LGA1150

Asus H81M-C Specifications

General

Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1666 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of COM connectors	1
Number of SATA connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Cables included	SATA
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	178 mm
Width	244 mm
