2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

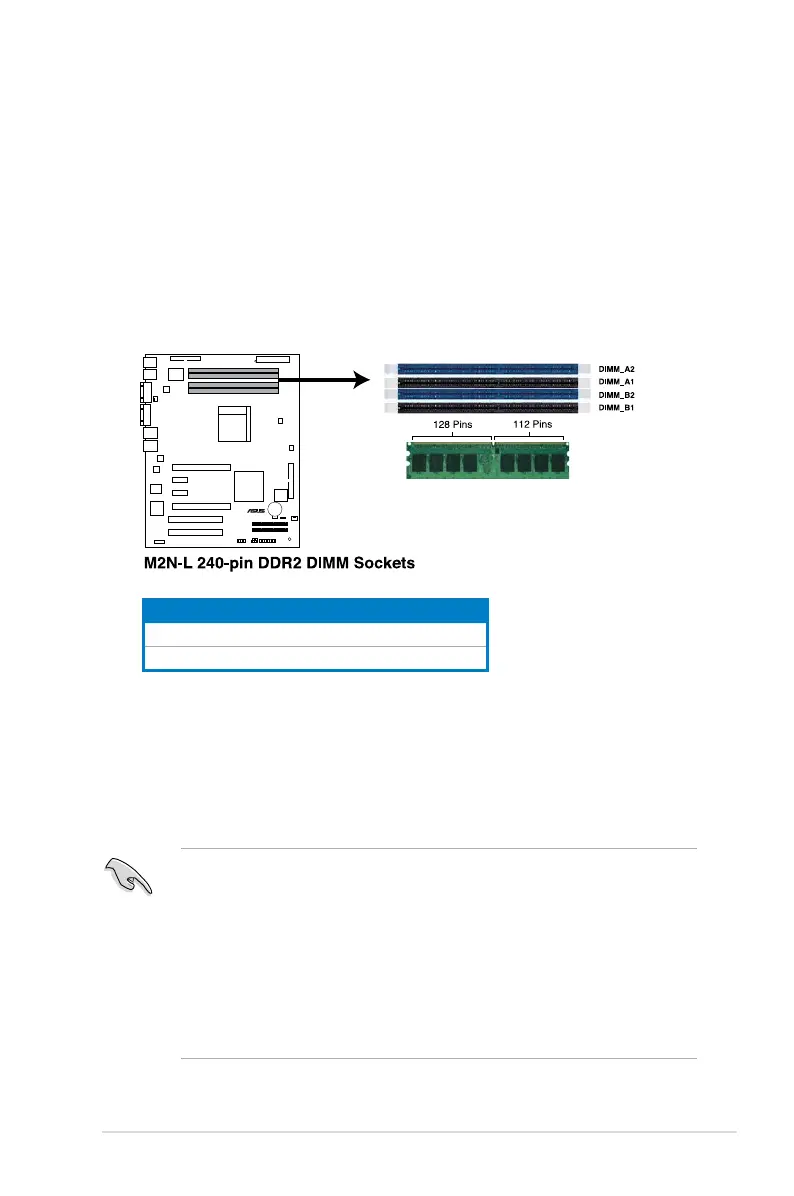

The gure illustrates the location of the DDR2 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
2.4.2 Memory congurations
You may install 128 MB, 256 MB, 512 MB, or 2 GB unbuffered ECC/Non-ECC
DDR2 DIMMS into the DIMM sockets using the memory congurations in this
section.
• For dual-channel conguration, the total size of memory module(s) installed
per channel must be the same for better performance (DIMM_A1+DIMM_
A2=DIMM_B1+DIMM_B2).
• Due to chipset resource allocation, the system may detect less than 8 GB
of system memory when you installed four 2 GB DDR2 memory modules.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, we recommend that you obtain memory modules from the
same vendor. Refer to the Memory Qualied Vendors List at the ASUS web
site.
M2N-L
®

Asus M2N-L Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	1
Number of SATA connectors	6
Manageability features	ASWM 2.0
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraATA-100/133
USB 2.0 ports quantity	2
Motherboard form factor	ATX
Maximum graphics card memory	32 MB
Networking features	Dual Gigabit Ethernet
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	10 - 35 °C
RAID levels	0, 1, 0+1, JBOD
