Asus M2N-X User Manual

ASUS M2N-X
2-19

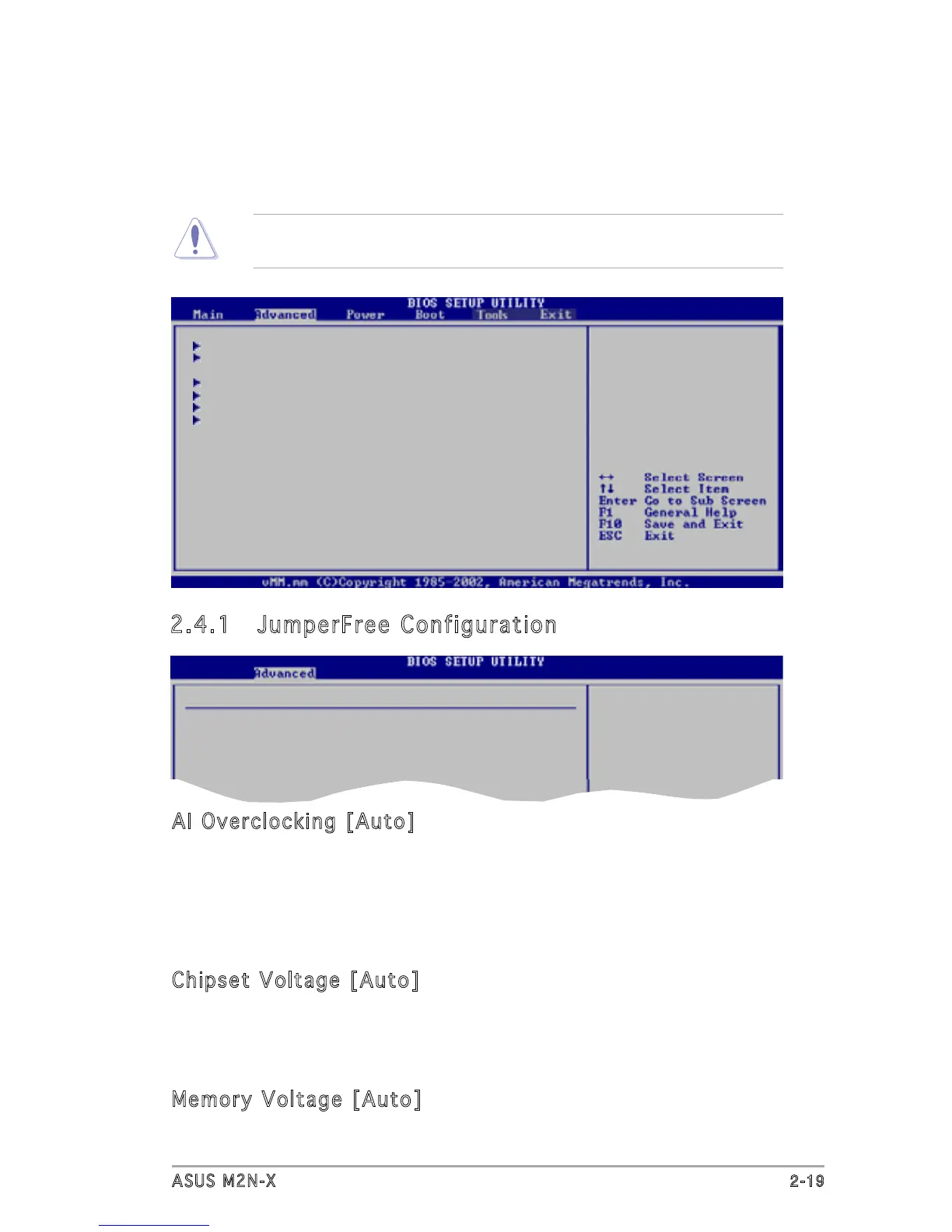

2.4 Advanced menu
The Advanced menu items allow you to change the settings for the CPU
and other system devices.
Take caution when changing the settings of the Advanced menu items.
Incorrect eld values can cause the system to malfunction.
Jumperfree Conguration
CPU Conguration
Chipset
Onboard Devices Conguration
PCIPnP
USB Conguration
2.4.1 JumperFree Configuration
Congure System Frequency/Voltage
AI Overclocking [Auto]
Chipset Voltage [Auto]
Memory Voltage [Auto]
AI Overclocking [Auto]
Allows selection of CPU frequency and auto adjustment of relevant
parameters. Frequencies higher than CPU manufacturer recommends are
not guaranteed to be stable. If the system becomes unstable, return to the
default.
Conguration options: [Auto] [Manual] [Standard] [Overclock Prole]
Chipset Voltage [Auto]
Allows selection of the chipset voltage. The conguration options vary
depending on the CPU installed.
Conguration options: [Auto] [1.2V] [1.3V]
Memory Voltage [Auto]
Allows you to select the memory voltage or set it to auto for safe mode.
Conguration options: [Auto] [1.900V] [1.950V]

Asus M2N-X Specifications

General

ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
CPU fan connector	No
Number of SATA connectors	4
Number of EATX power connectors	1
Manageability features	WOR (Ring), WOL/WOR (PME), PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	305 mm
