ASUS M4A88TD-V EVO 2-37

Chapter 2

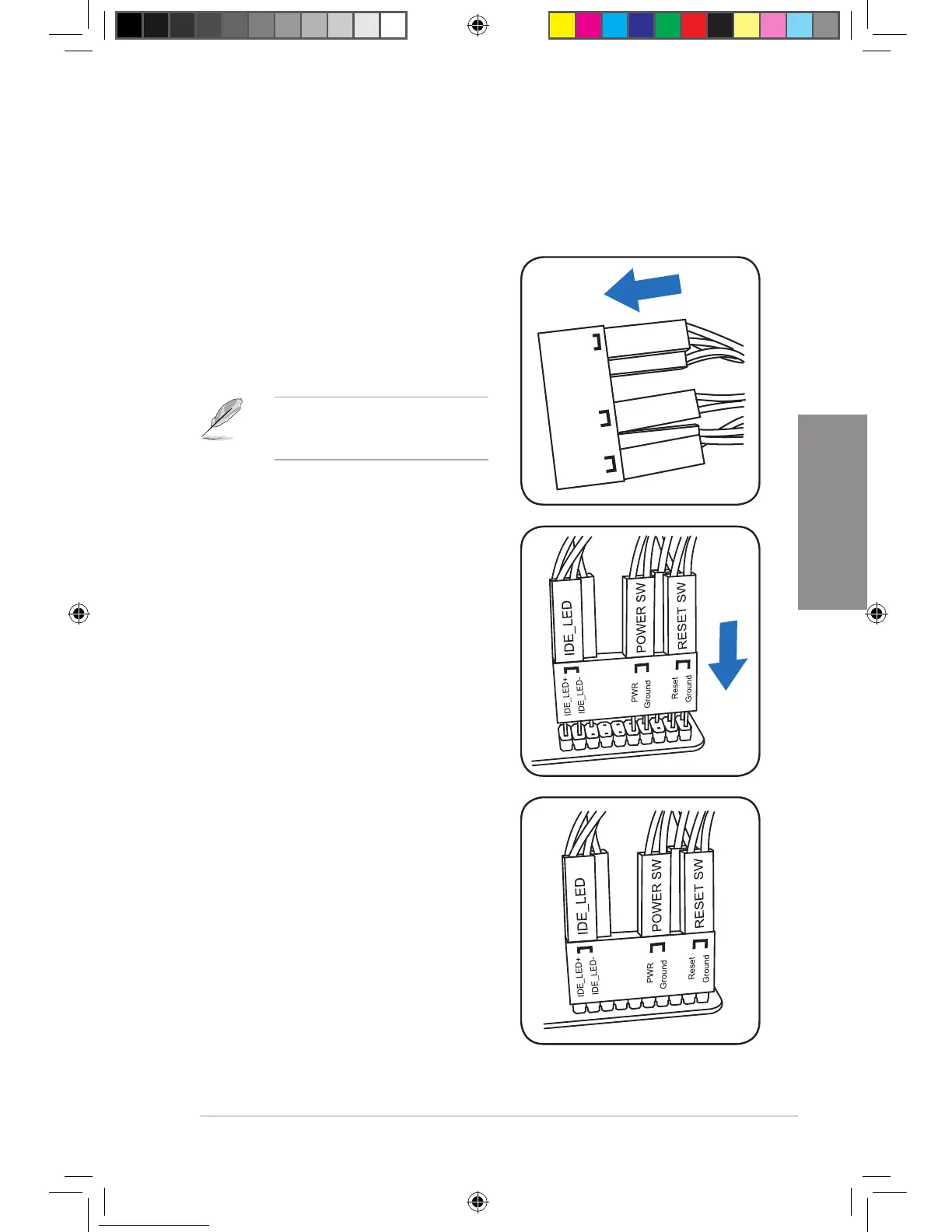

2.8.4. ASUS Q-Connector (system panel)

Use the ASUS Q-Connector to connect/disconnect the chassis front panel cables.

To install the ASUS Q-Connector:

1. Connect the front panel cables to the ASUS

Q-Connector.

Refer to the labels on the Q-Connector to

know the detailed pin denitions, and then

match them to their respective front panel

cable labels.

The labels on the front panel cables

may vary depending on the chassis

model.

2. Install the ASUS Q-Connector to the system

panel connector, ensuring the orientation

matches the labels on the motherboard.

3. The front panel functions are now enabled.

The gure shows the Q-Connector is properly

installed on the motherboard.

IDE_LED

POWER SW

RESET SW

IDE_LED-

IDE_LED+

PWR

Reset

Ground

E5889_M4A88TD-V EVO_Contents V2.37 37 5/26/10 4:04:36 PM
