1.10 Connectors
1.10.1 Rear panel ports

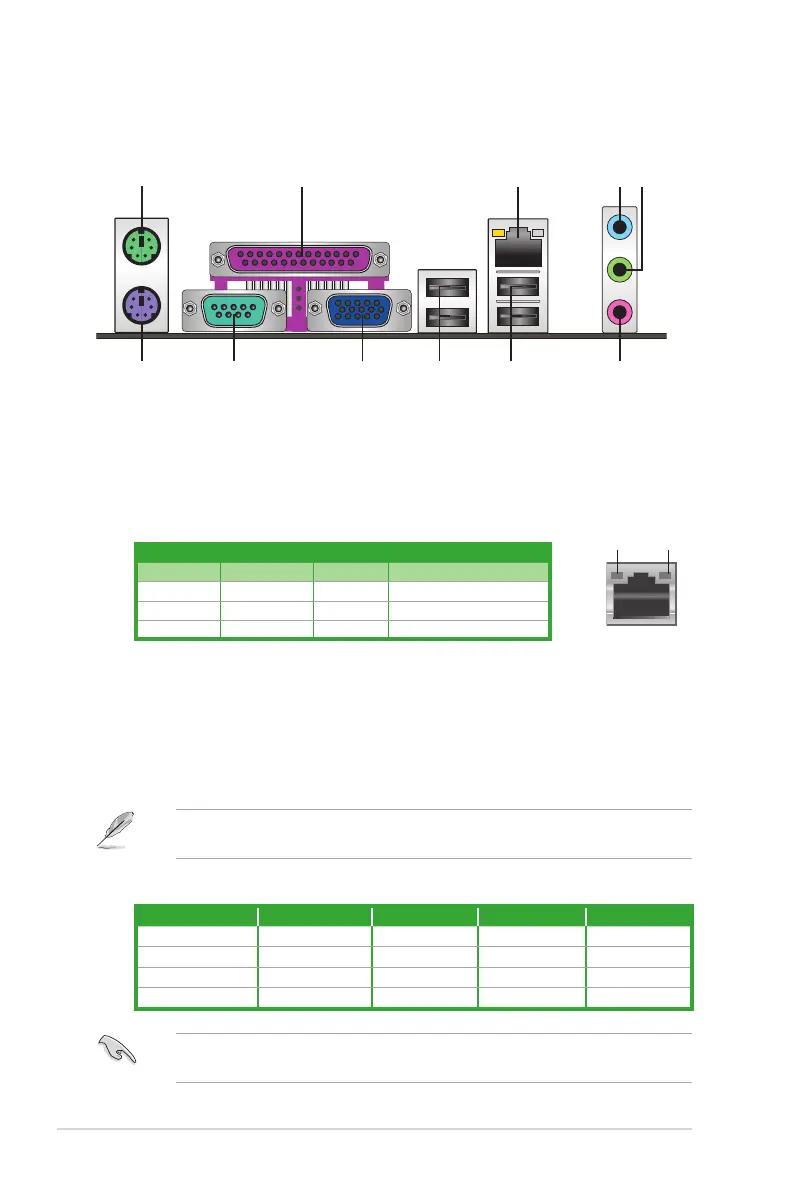

1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
4 53
68 7
2
10 9
1
11
Audio 2, 4, 6, 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
To congure 8-channel audio, use the chassis with HD audio module in the front panel to
support 8-channel audio output.
Chapter 1: Product introduction1-20

Asus M4N68T-M LE V2 Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025/nForce 630a
CPU Socket	AM3
Memory Type	DDR3
Maximum Memory	8GB
Storage Interface	4 x SATA 3Gb/s
Video Ports	1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066 MHz
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
LAN	Realtek RTL8211CL Gigabit LAN controller
Audio Ports	3 x Audio Jacks
USB Ports	10 x USB 2.0 (4 on back panel, 6 via headers)
