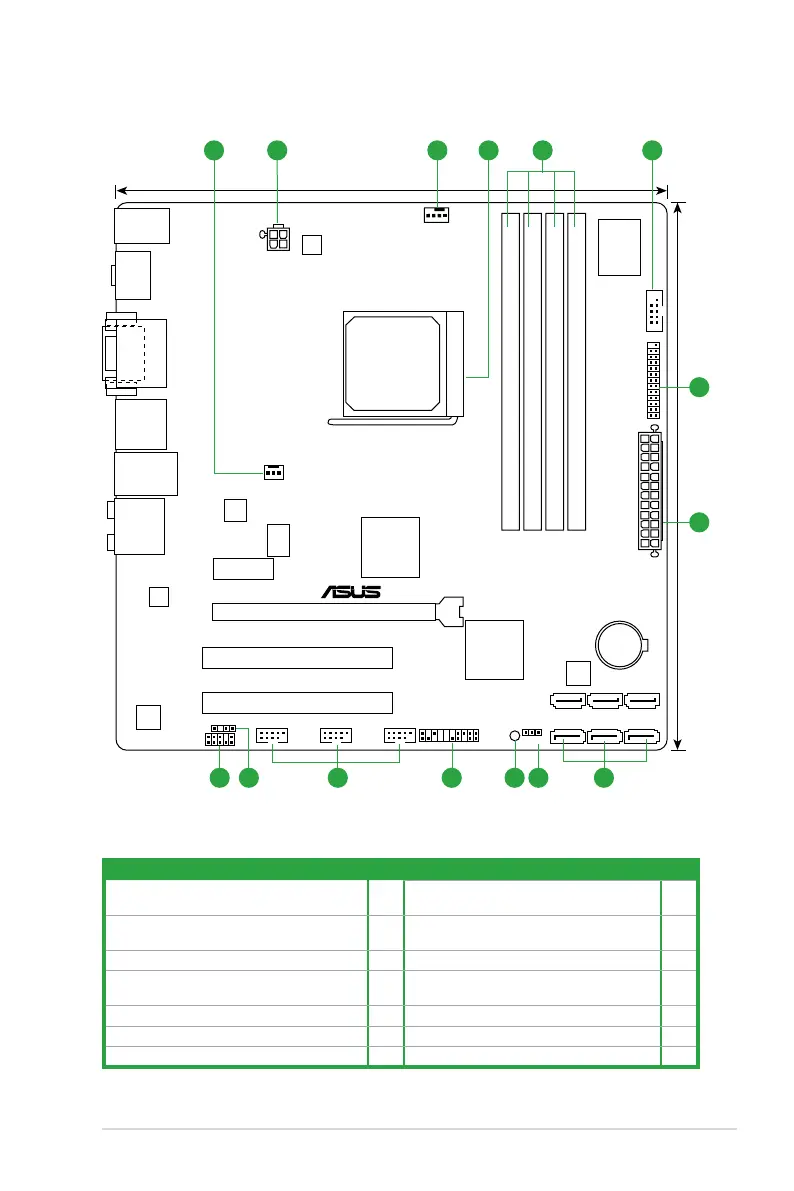

1.5.3 Motherboard layout

M5A78L-M/USB3

PCIEX16

PCIEX1_1

PCI2

PCI1

USB78 USB910 USB1112

AAFP

ATX12V

EATXPWR

CPU_FAN

Lithium Cell

CMOS Power

Super

I/O

VIA

VT1708S

RTL

8111E

ASM

1042

ICS

9LPRS483

KB_USB56

SPDIF_O2

HDMI

16Mb

BIOS

SB_PWR

CLRTC

24.4cm(9.6in)

AMD

RS780L

AMD

SB710

DDR3 DIMM_B1 (64bit, 240-pin module)

SOCKET AM3+

DDR3 DIMM_B2 (64bit, 240-pin module)

DDR3 DIMM_A1 (64bit, 240-pin module)

DDR3 DIMM_A2 (64bit, 240-pin module)

SATA3G_4 SATA3G_5 SATA3G_6

SATA3G_1 SATA3G_2 SATA3G_3

AUDIO

LAN1_USB12

USB34

CHA_FAN

PANEL

SPDIF_OUT

LPT

COM1

DVI_VGA

EPU

51 32 4

11 710 9 813 12

1.5.4 Layout contents

Connectors/Jumpers/Slots Page Connectors/Jumpers/Slots Page

1. CPU and chassis fan connectors (4-pin

CPU_FAN, 3-pin CHA_FAN)

1-27 8. Clear RTC RAM (CLRTC) 1-19

2. ATX power connectors (24-pin EATXPWR, 4-pin

ATX12V)

1-23 9. Onboard LED (SB_PWR) 1-5

3. AMD CPU socket 1-8 10. System panel connector (20-8 pin PANEL) 1-25

4. DDR3 DIMM sockets 1-11 11. USB connectors (10-1 pin USB78, USB910,

USB1112)

1-26

5. Serial port connectors (10-1 pin COM1) 1-27 12. Digital audio connector (4-1 pin SPDIF_OUT) 1-26

6. LPT connector (26-1 pin LPT ) 1-22 13. Front panel audio connector (10-1 pin AAFP) 1-22

7. Serial ATA connectors (7-pin SATA3G_1~6) 1-24

ASUS M5A78L-M/USB3 1-7

Questions and Answers:

Need help?

Do you have a question about the Asus M5A78L-M USB3 and is the answer not in the manual?

Asus M5A78L-M USB3 Specifications

General

ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Athlon II, AMD Sempron
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Cables included	SATA
Graphics card	Radeon 3000
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	16 Mbit
