ASUS P5PL2 2-7

3. Lift the load lever in the

direction of the arrow to a 135º

angle.

4. Lift the load plate with your

thumb and foreﬁnger to a 100º

angle (A), then push the PnP cap

from the load plate window to

remove (B).

5. Position the CPU over

the socket, making sure

that the gold triangle

is on the bottom-left

corner of the socket.

The socket alignment

key should ﬁt into the

CPU notch.

Alignm ent key

Gold t rian gle mar k

Load p late

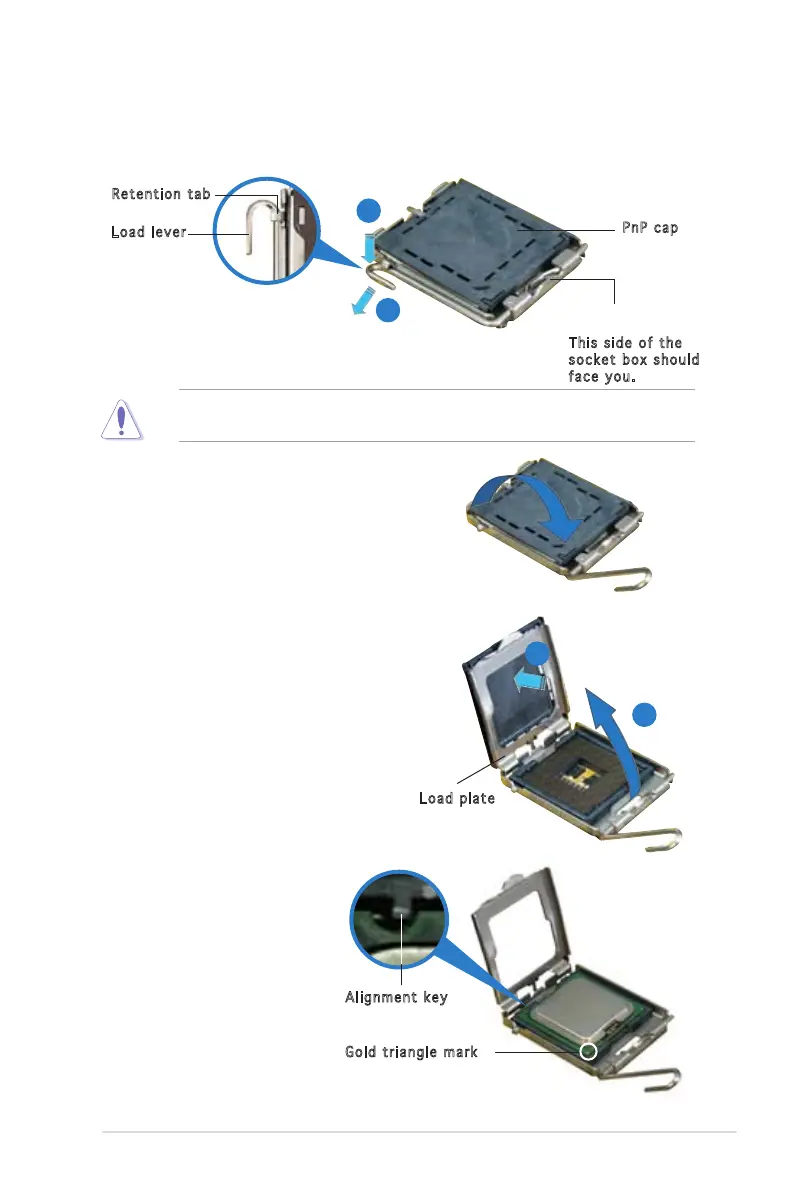

2. Press the load lever with your thumb (A), then move it to the left (B)

until it is released from the retention tab.

Retent ion tab

Load l ever

This s ide of the

socket box should

face y ou.

PnP ca p

To prevent damage to the socket pins, do not remove the PnP cap

unless you are installing a CPU.
