ASUS P5P43T 1-21
1.10 Connectors

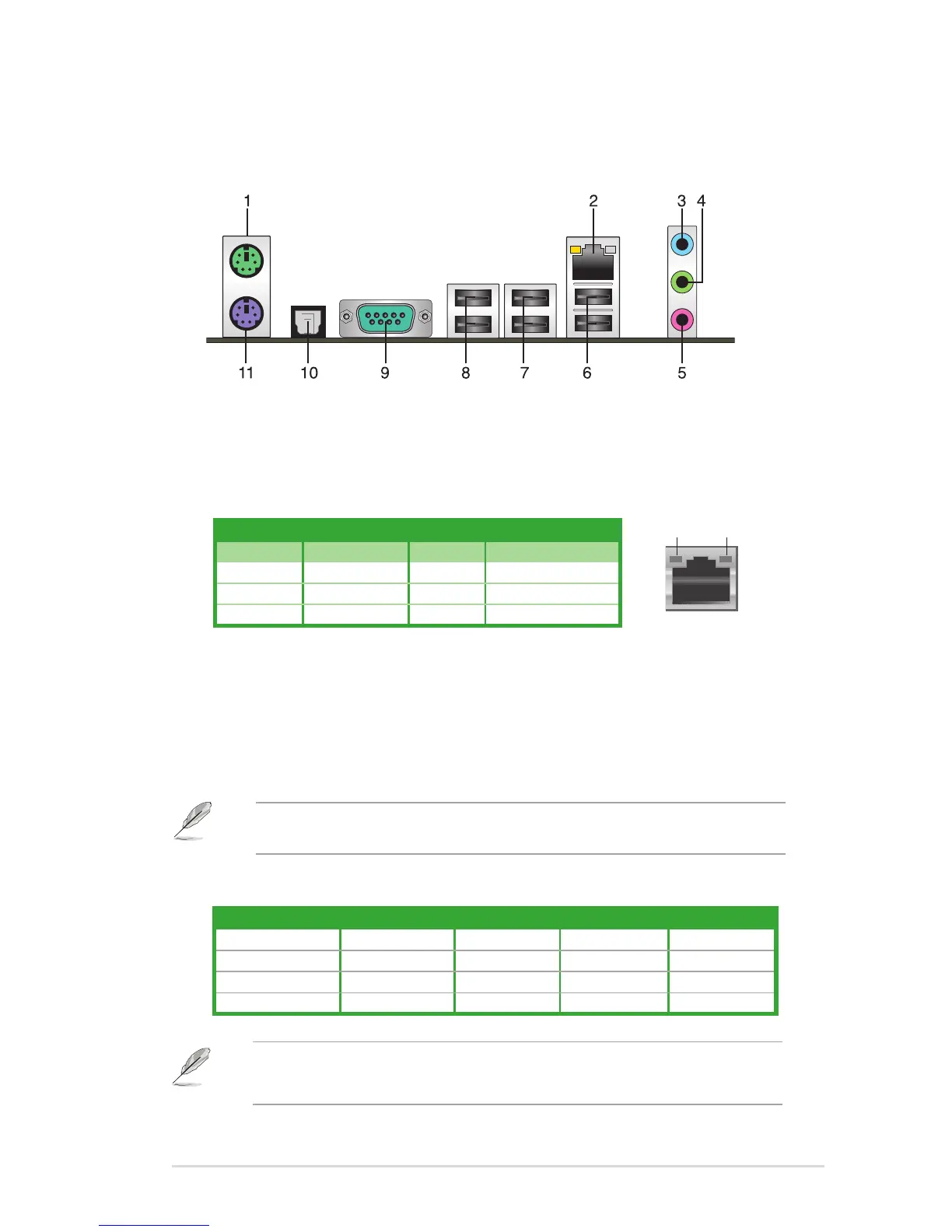

1.10.1 Rear panel connectors
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-
channel, and 8-channel congurations, the function of this port becomes Front Speaker
Out.
5. Microphone port (pink). This port connects a microphone.
LAN port
SPEED
LED
ACT/LINK
LED
Refer to the audio conguration table below for the function of the audio ports in 2, 4, 6 or
8-channel conguration.
Audio 2, 4, 6, or 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) – – – Side Speaker Out
To congure an 8-channel audio output:
Use the chassis with HD audio module in the front panel to support 8-channel audio output.
