9. Intel
®
H77 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
congurations with the Intel
®
Rapid Storage Technology through the onboard Intel
®
H77
chipset.
• These connectors are set to [AHCI] by default. If you intend to create a Serial ATA RAID
set using these connectors, set the SATA Mode Selection item in the BIOS to [RAID].
See section 2.5.3 SATA Conguration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows
®
XP SP3 or later version.
• When using hot-plug and NCQ, set the
SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.3 SATA Conguration for details.

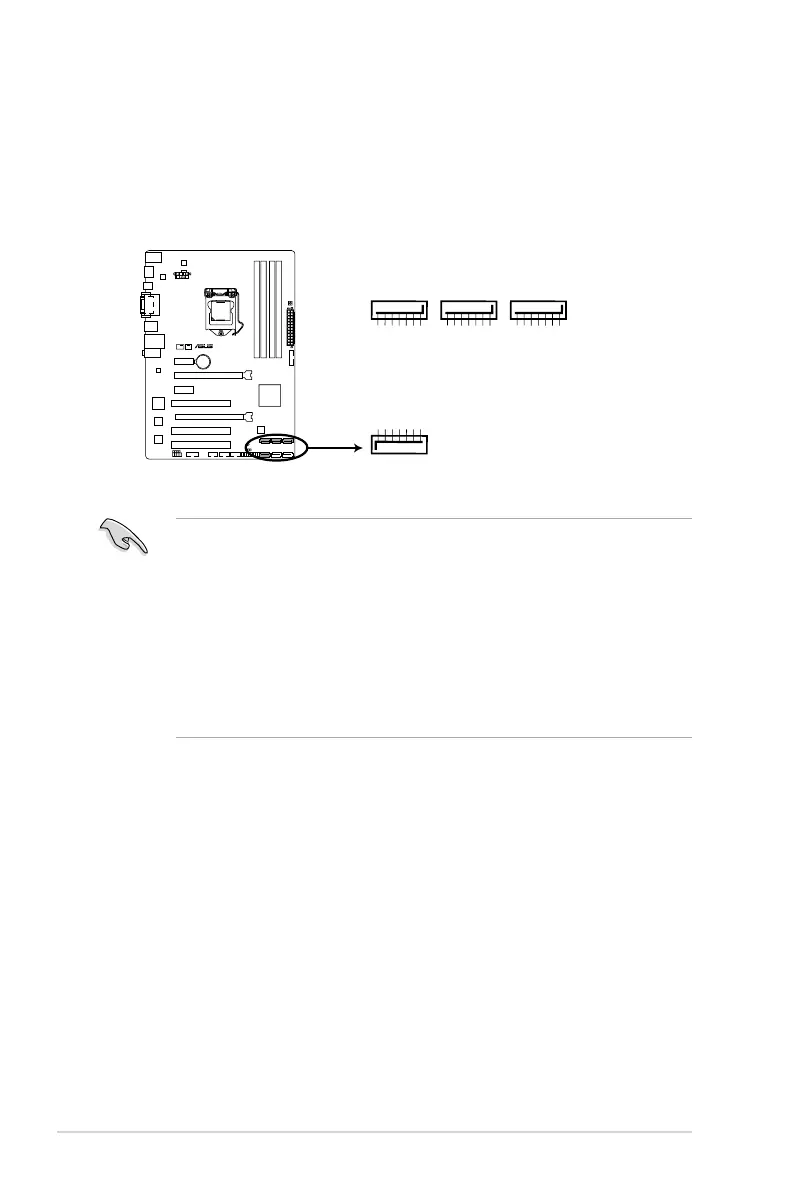

P8H77-V LE
P8H77-V LE SATA 3.0Gb/s connectors
SA
TA
3G_4
G
N
D
R
S
A
T
A
_R
X
P
4
R
S
A
T
A
_R
X
N
4
G
N
D
R
S
A
T
A
_T
X
N
4
R
S
A
T
A
_
T
X
P
4
G
N
D
SA
TA
3G_3
G
N
D
R
S
A
T
A
_T
X
P
3
R
S
A
T
A
_
T
X
N
3
G
N
D
R
S
A
T
A
_R
X
N
3
R
S
A
T
A
_
R
X
P
3
G
N
D
SA
TA
3G_2
G
N
D
R
S
A
T
A
_
T
X
P
2
R
S
A
T
A
_
T
X
N
2
G
N
D
R
S
A
T
A
_
R
X
N
2
R
S
A
T
A
_
R
X
P
2
G
N
D
SA
TA
3G_1
G
N
D
R
S
A
T
A
_
T
X
P
1
R
S
A
T
A
_
T
X
N
1
G
N
D
R
S
A
T
A
_
R
X
N
1
R
S
A
T
A
_R
X
P
1
G
N
D

Asus P8H77-V LE Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	4.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	218 mm
Width	305 mm
