Chapter 1: Product Introduction
Chapter 1

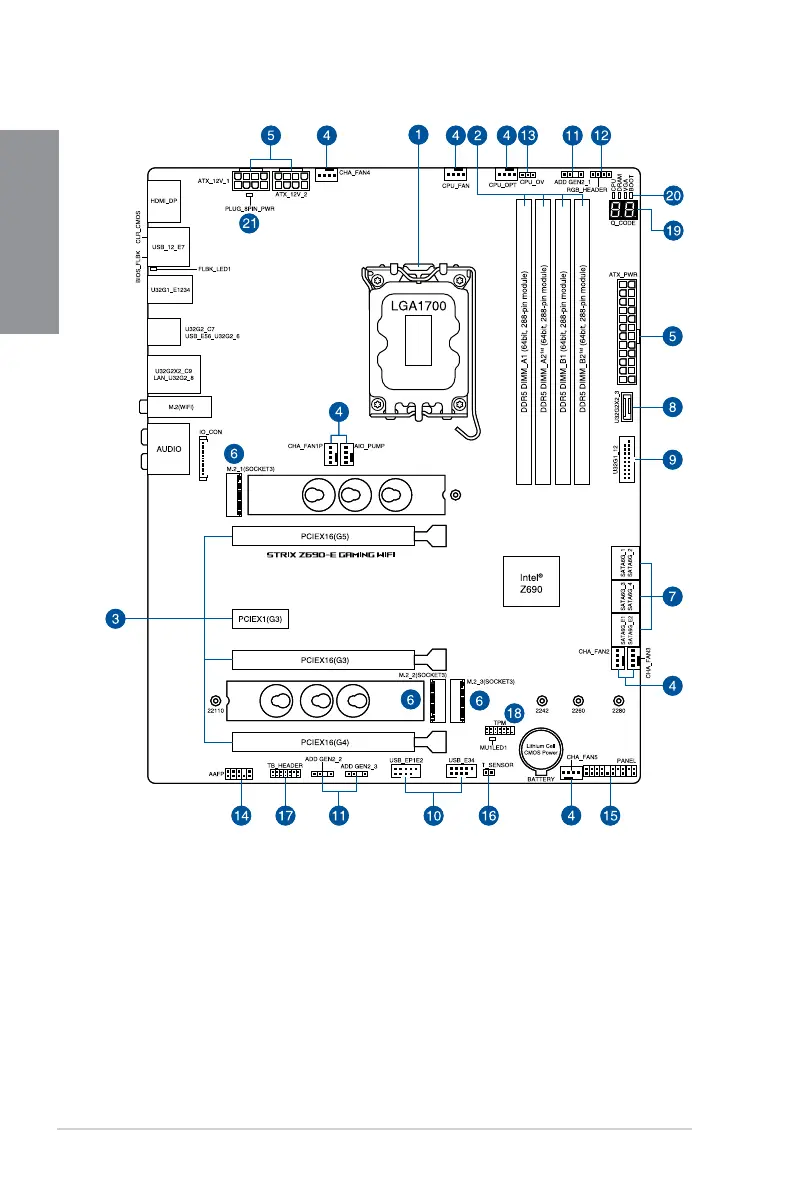

1.2 Motherboard layout
STRIX Z690-E GAMING WIFI
DDR5 DIMM_B2
1st
(64bit, 288-pin module)
DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_A2
1st
(64bit, 288-pin module)
DDR5 DIMM_A1 (64bit, 288-pin module)
M.2_1(SOCKET3)
M.2_3(SOCKET3)
M.2_2(SOCKET3)
TPM
2242 2260 2280
22110
ATX_12V_2
ATX_12V_1
FLBK_LED1
USB_12_E7
BIOS_FLBK
CLR_CMOS
HDMI_DP
ATX_PWR
BOOT VGA DRAM CPU
PCIEX16(G5)
T_SENSOR
RGB_HEADER
CPU_OV
ADD GEN2_3
TB_HEADER
CHA_FAN5
BATTERY
CHA_FAN3
CHA_FAN2
CPU_FAN
CPU_OPT
CHA_FAN1P
IO_CON
CHA_FAN4
AIO_PUMP
AAFP
SATA6G_1 SATA6G_2
SATA6G_3 SATA6G_4
SATA6G_E1 SATA6G_E2
Intel
®
Z690
AUDIO
LAN_U32G2_8
U32G2X2_C9
U32G2_C7
USB_E56_U32G2_6
U32G1_E1234
M.2(WIFI)
USB_EP1E2
USB_E34
PCIEX1(G3)
PCIEX16(G4)
PCIEX16(G3)
U32G2X2_3
U32G1_12
Lithium Cell
CMOS Power
PANEL
PLUG_8PIN_PWR
ADD GEN2_1
ADD GEN2_2
MU1LED1
LGA1700
Q_CODE
5
20
19
11
8
9
4
7
18
6
6
1511
4
14
10
17 16
6
4
4 445
21
1
12132
3
This manual downloaded from http://www.manualowl.com

Asus ROG STRIX Z690-E GAMING WIFI Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	192 GB
Supported memory clock speeds	6200, 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
Cables included	SATA
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Parallel processing technology support	Not supported
Component for	PC
Product color	Black
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10, Windows 11
Harmonized System (HS) code	84733020
Weight	1543 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	110 mm
