Asus RT-AC66U Setup Guide

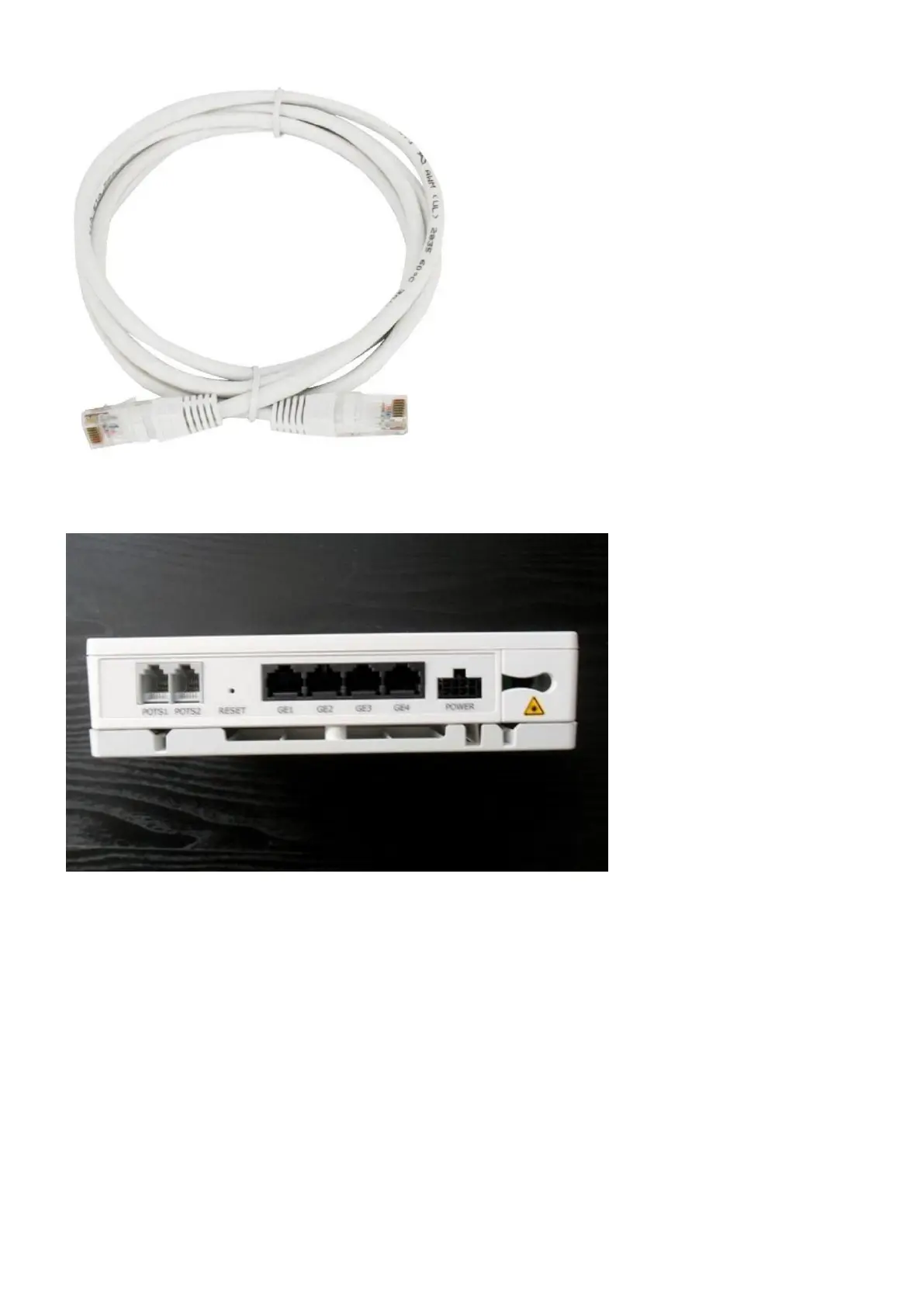

Figure 3. The underside of the ONT (Chorus will install this)
Please follow these instructions to set up your ASUS RT-
A66u Router for Bigpipe’s UFB plan.
– Attach the router’s aerials, plug it in, and power it on.
Plug one end of an Ethernet cable (see figure 2) into the blue
port (see figure 1) and the other end into the first port
(GE1) of the ONT (see figure 3). Then connect an ethernet
cable from the yellow LAN1 port of the router (see figure 1)
into your computer’s LAN port.
Important: If your computer does not have a LAN port, connect

Asus RT-AC66U Specifications

General

VPN support	IPSec, PPTP, L2TP, PPTP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	1300 Mbit/s
Rack mounting	-
Frequency band	2.4 & 5 GHz
xDSL connection	No
USB ports quantity	2
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 450, 1300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	3
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
LED indicators	LAN, Power, USB, WAN
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	148.8 mm
Width	207 mm
Height	35.5 mm
Weight	450 g
