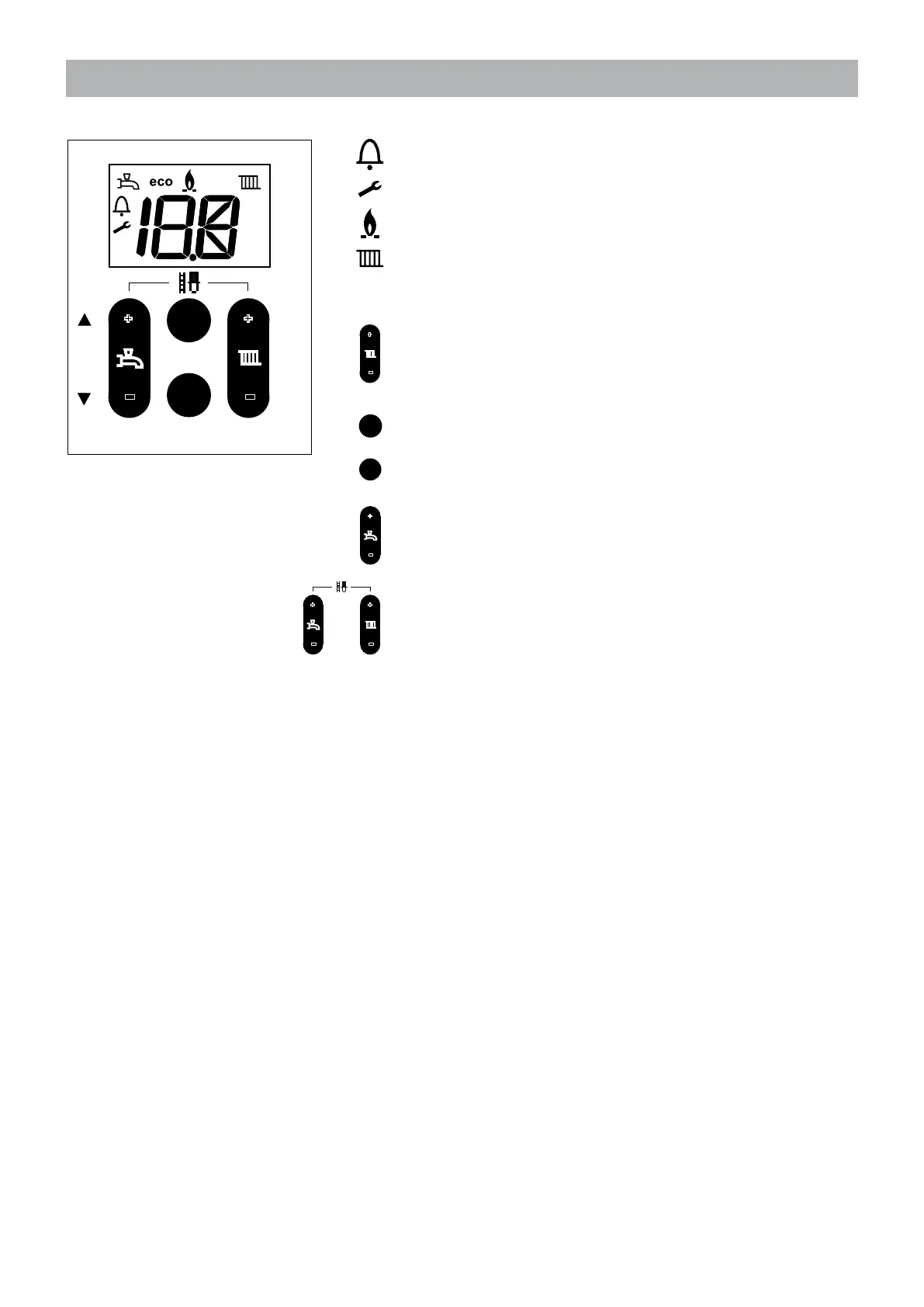

Explanation of the Control Panel & Buttons
DHW Visible when DHW program is active
Flashing when there is a heat demand for DHW
Error Error indication (accompanied with a code).
Alert Service-mode or blocking
Pump Visible when pump is set to continuously
Flashing when frost program is active
Eco Visible when DHW comfort function is not active
Flame Visible when boiler is active for heating or DHW
Heating Visible when heating program is active
Flashing when there is a heat demand for heating
Central heating program (On = +, Off = -)
Setting of boiler temperature (max. fl ow temperature)
+/-function (ancillary function: OK and Escape)
Eco-function DHW on/off . Press 6 seconds for Information
Reset button
DHW program (On = +, Off = -)
Setting of hot water temperature
+/-function (ancillary function: Scroll and +/-function)
Commissioning function (Press both + buttons for 6 seconds)
Pump function (Press both - buttons for 6 seconds)
Information on the water pressure:
The default view of the display shows OK. Press the eco-button for
6 seconds and press the scroll-buttons until A6 is displayed.
The actual water pressure will be shown:
Water pressure too low
Code 118 and spanner symbol visible:
Water pressure is too low (<0.8 bar).
Power is reduced by 20%. The installation should be refi lled.
or
Code 118 and spanner symbol visible:
Water pressure is too low (<0.5 bar).
The boiler is taken out of operation. The installation should be refi lled.
After the installation has been refi lled and if the pressure was below
0.5 bar the de-aeration program will start (Code 105 and spanner
symbol visible). This will last for approx 7 mins.
Water pressure too high
Code 117 and spanner symbol visible:
Water pressure is too high (> 3.0 bar).
The boiler is taken out of operation.
The installation pressure should be reduced by draining water from the heating system.
See chapter 12 for more information about button functions and read-out.
