Interface ACTA 4000 User Guide
14 (136) 2008-12 9836 4171 01

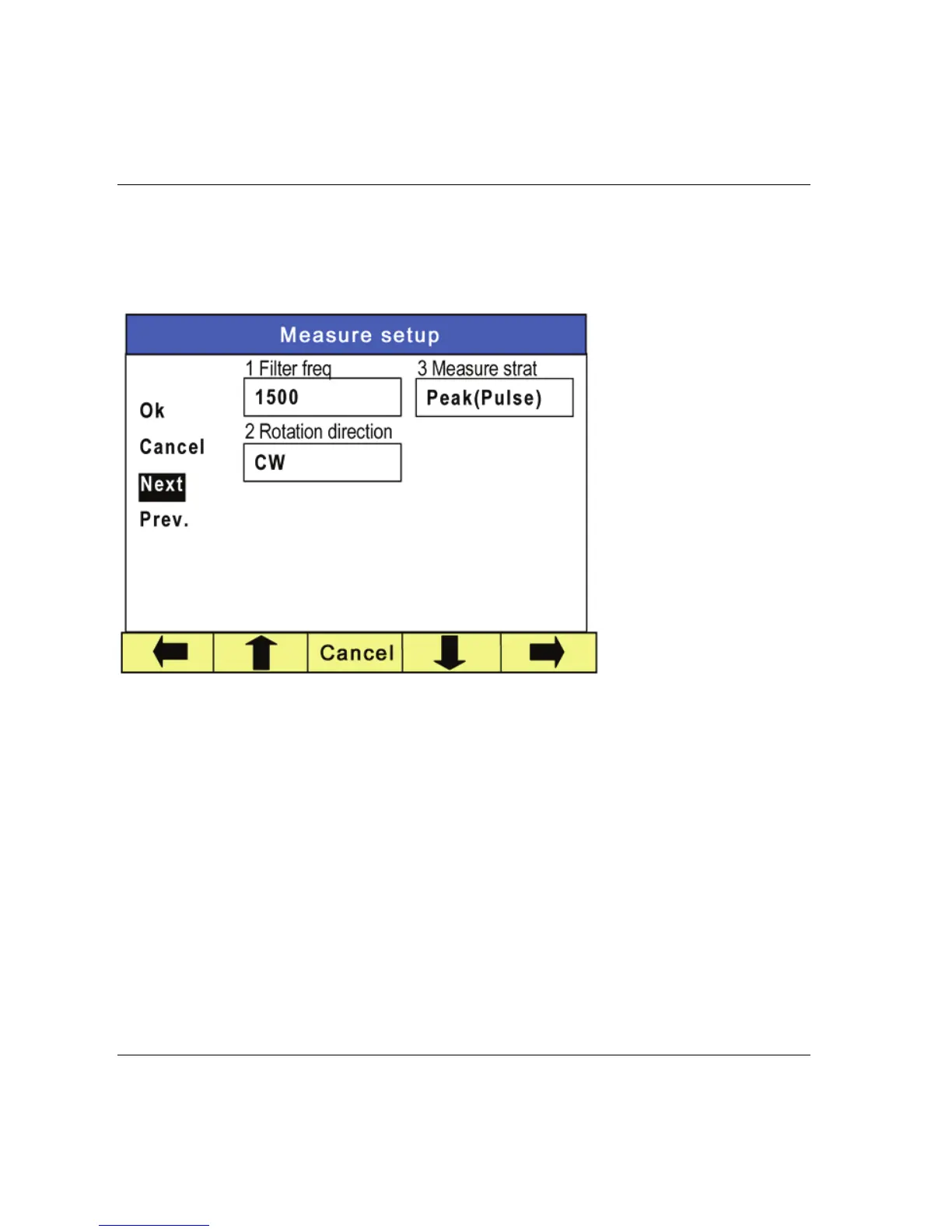

2.1.4 Input dialog boxes
An input dialog box appears if the option you have selected requires specific parameters to be set.
Opening data boxes
To access the data boxes, do
one of the following:
 Highlight it by
scrolling up or down
using the soft keys
under the arrows.
Then press
ENTER.
 Press the digit on the
numeric keypad that
corresponds to the
field.
The box opens.
Entering data
To enter data, do the following:
If the data field is editable, use the numeric keypad. For alpha character signs, press and release
SHIFT
prior to the numerical key representing the desired letter or symbol. Pressing and releasing associated
numeric button will cycle through applicable range of alpha characters. First lowercase and then upper
case. Press
ENTER to confirm and exit the data field. If the data field has a selection list, do one of the
following:
 Use the soft keys under the arrows to highlight the desired parameter. Press
ENTER to confirm and
exit the data field.
 Press the digit on the numeric keypad that corresponds to the desired parameter to confirm and exit
the data field.
