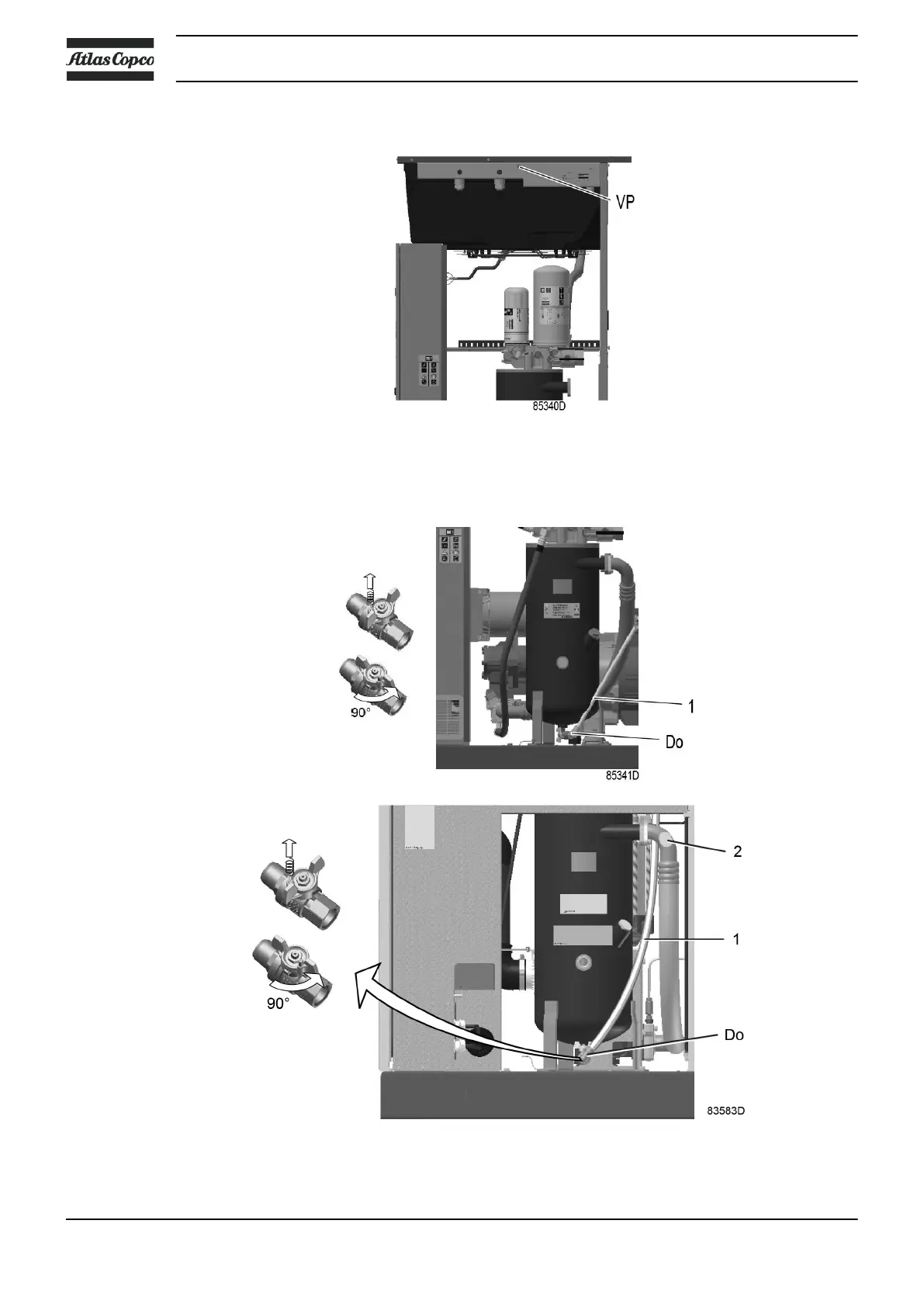

2. Remove the vent plug (VP) of the oil cooler.
Vent plug, oil cooler
3. Open the oil drain valve (Do).
• Hold the oil drain hose (1) downward to drain the oil.
4. • Drain oil from outlet housing.
• Remove the oil filter (OF). Be aware that this filter has a left thread connection.
Instruction book
116 2920 7118 31

Atlas Copco GA 11+ Specifications

General

Model	GA 11+
Category	Air Compressor
Power	11 kW
Working Pressure	7.5 bar
Height	1200 mm
Capacity FAD	29.3 l/s
Free Air Delivery	Varies with pressure, see FAD range
Noise Level	68 dB(A)
