Atlas Copco GA 30+ User Manual

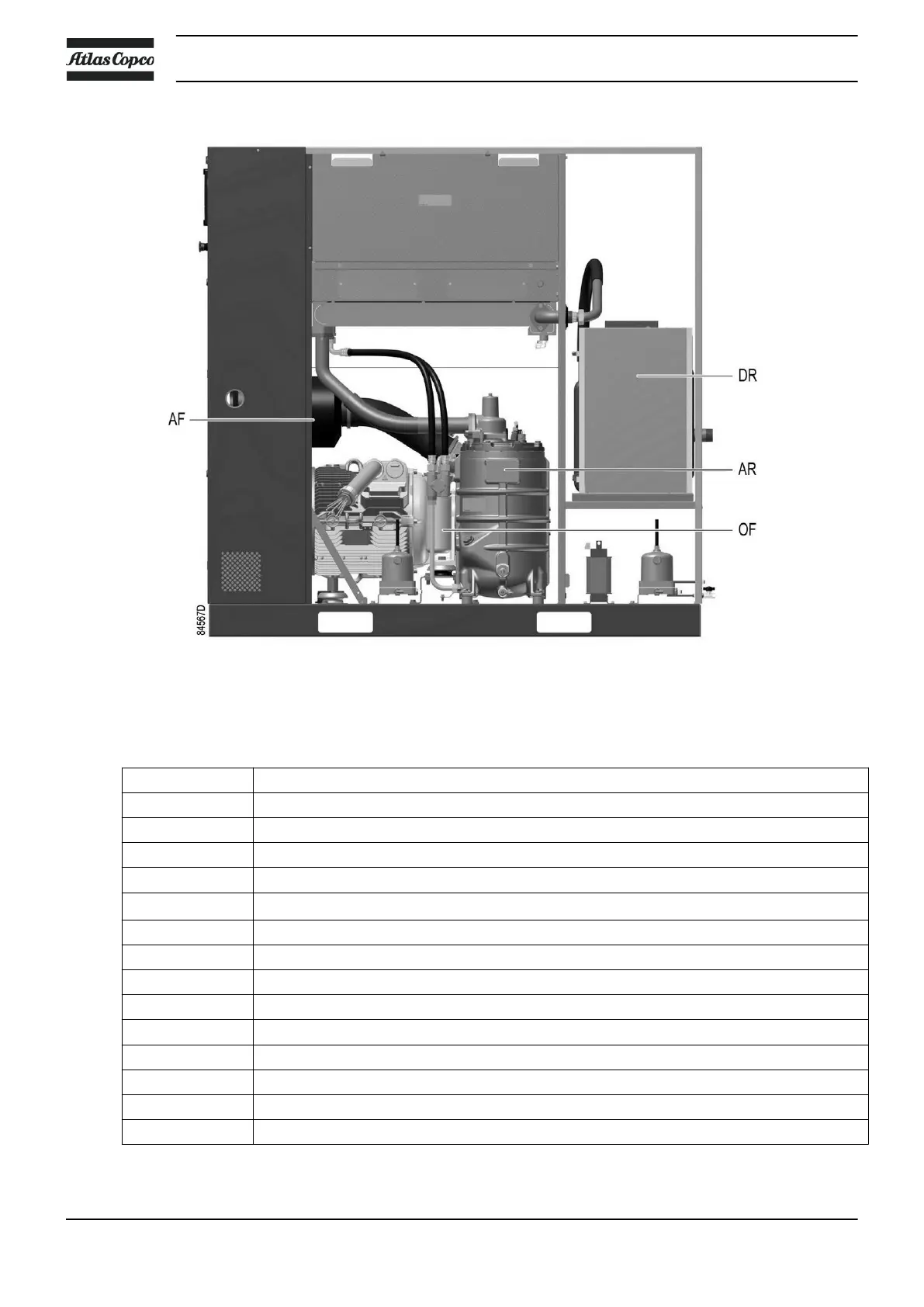

Service side view, GA 30
+
up to GA 45 Full-Feature
References
1 Electric cabinet
AV Outlet valve
Ca Air cooler
Co Oil cooler
E Compressor element
ER
Elektronikon
®
controller
FN Cooling fan
M1 Motor of the compressor
S3 Emergency stop button
UA Unloader
Da (Dm) Condensate outlets
AF Air filter
AR Air receiver (oil separator tank)
OF Oil filter
DR Dryer (only on units with integrated dryer)
Instruction book
16 2920 7180 30

Atlas Copco GA 30+ Specifications

General

Model	GA 30+
Category	Air Compressor
Power	30 kW
Working Pressure	7.5-13 bar
Cooling System	Air-cooled
Noise Level	69 dB(A)
FAD	5.2 m³/min
